7 Examples of IO-port Wiring
7.1 Input
The two water protection inputs are 24V logic level; all other inputs are compatible
with 5V/12V/24V logic level.

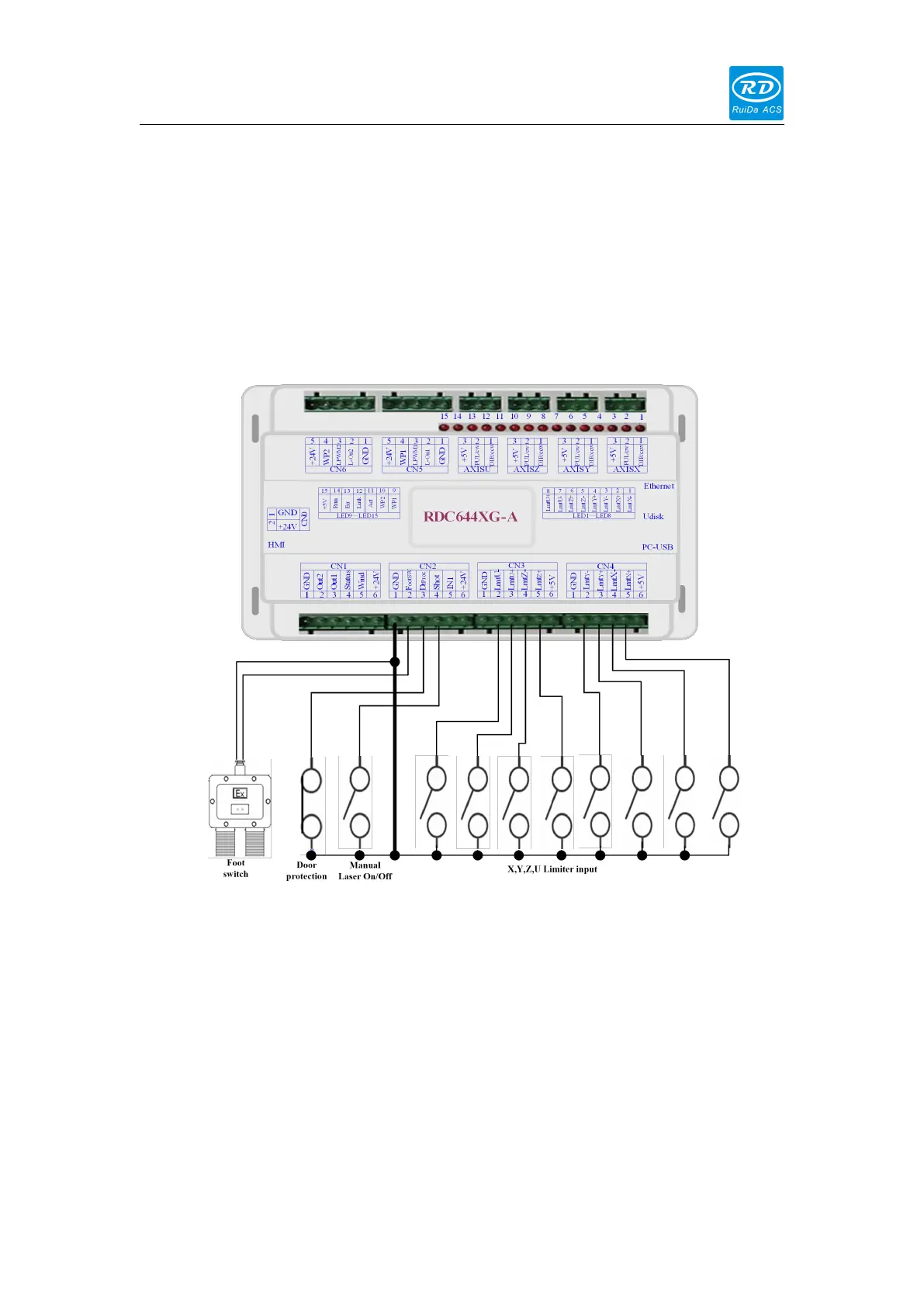

Input connection shown as below
Figure 7.1-1 example of input
