1.2 Flow-and/or Pressure-based Plumbing

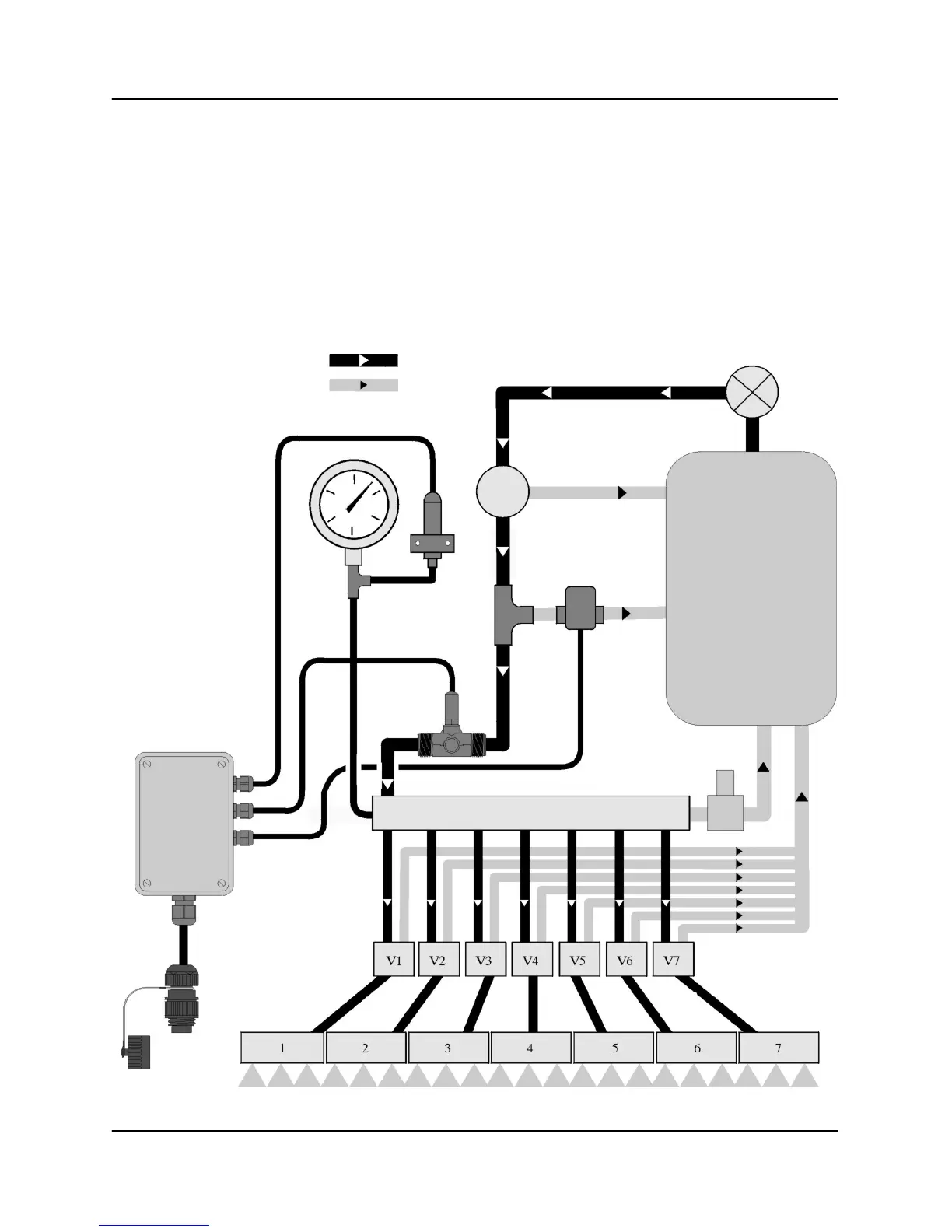

Figure 2 illustrates the general plumbing arrangement for the RDS
components.
[1] General installation instructions are included in the individual kits. Please
refer to these as required. Any additional instructions specific to a
Spraymaster installation are given in section 1.3.
Figure 2
Pressure Relief
Valve
Pump
Flow
RDS Pressure
Sensor [1]
Return
RDS Control
Valve [1]
RDS Flow
Sensor [1]
Master On-Off
Valve
Manifold
Boom section
Valves
Boom sections
Tank
