Version Number: RBM1550-20210414A1

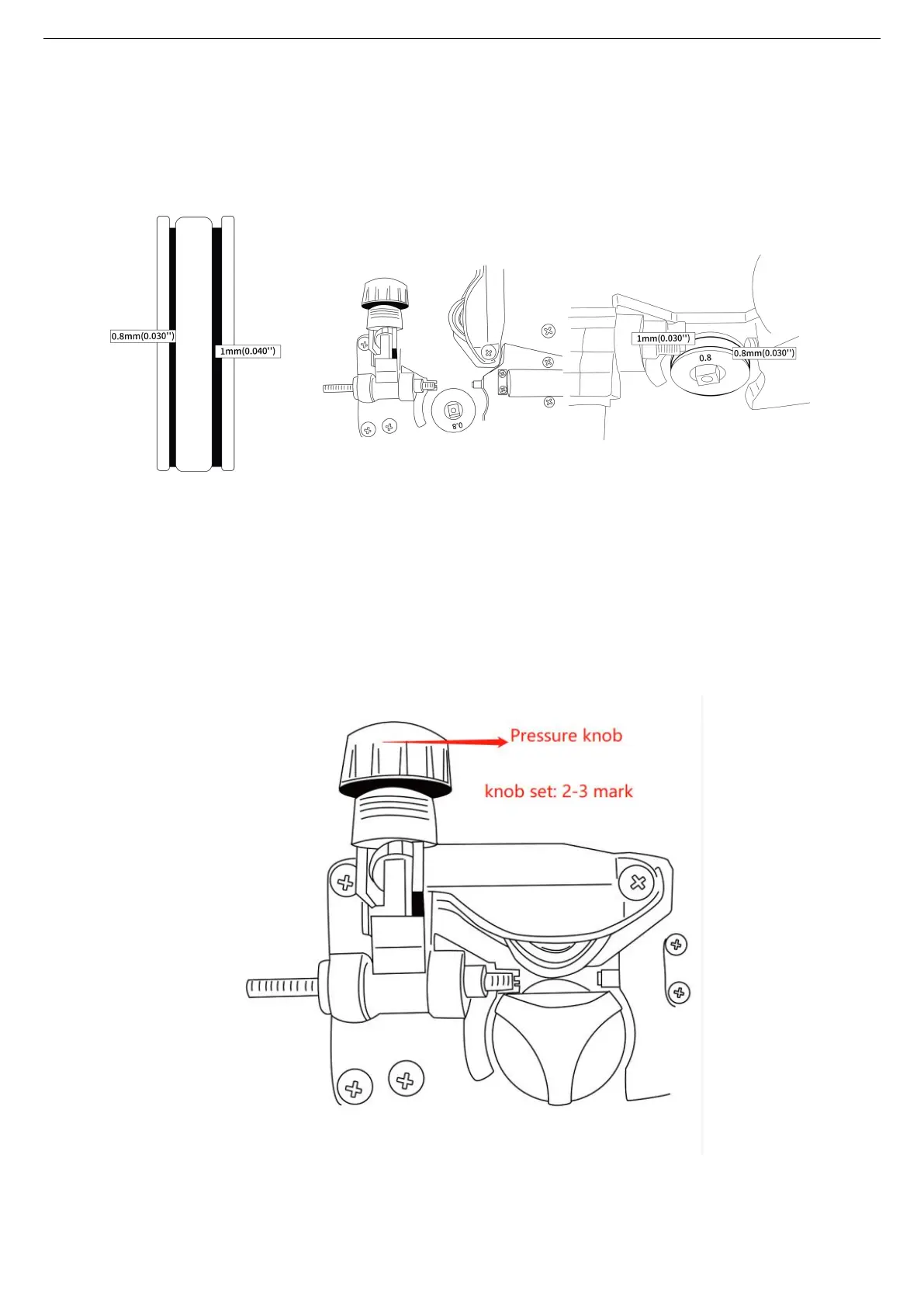

Face the side marked 0.030” away from the machine.
Remarks:
1. There are two grooves on one wire feed wheel, one side is 0.030” (0.8mm) and the other
side is 0.040” (1.0mm) to match the corresponding wire diameter.
2. Gas welding requires the use of V-type wire feed wheels, which are suitable for
ordinary carbon steel welding wire and stainless steel welding wire, and need to use
CO2 gas or CO2 and Argon gas mixture.
1.6 Feed wire and set pressure
The pressure should not be too loose, too loose will cause the welding wire to slip and the wire feeding is
unstable, and too tight will cause the welding wire to slip and deform.
1.7 Connect to Input Power
