Reboot RBM1600 - Page 2

Version Number: RBM1600-20201221A1
2
Clockwise rotate to enlarge the current, and anti-clockwise rotate to reduce the current.
7. MIG Welding torch connector
8. Positive Terminal
Positive Terminal. Welding current flows from the power source via heavy duty bayonet type terminals. It is essential, however,
that the male plug is inserted and turned securely to achieve a sound electrical connection.
9. Negative Terminal
Negative Terminal. Welding current flows from the power source via heavy duty bayonet type terminals. It is essential, however,
that the male plug is inserted and turned securely to achieve a sound electrical connection.
10.Polarity selection plug
In MMA and LIFT TIG state, this plug does not need to be connected; in MIG gas welding state, this plug is connected to positive
terminal 8; in MIG airless welding state, this plug is connected to negative terminal 9.

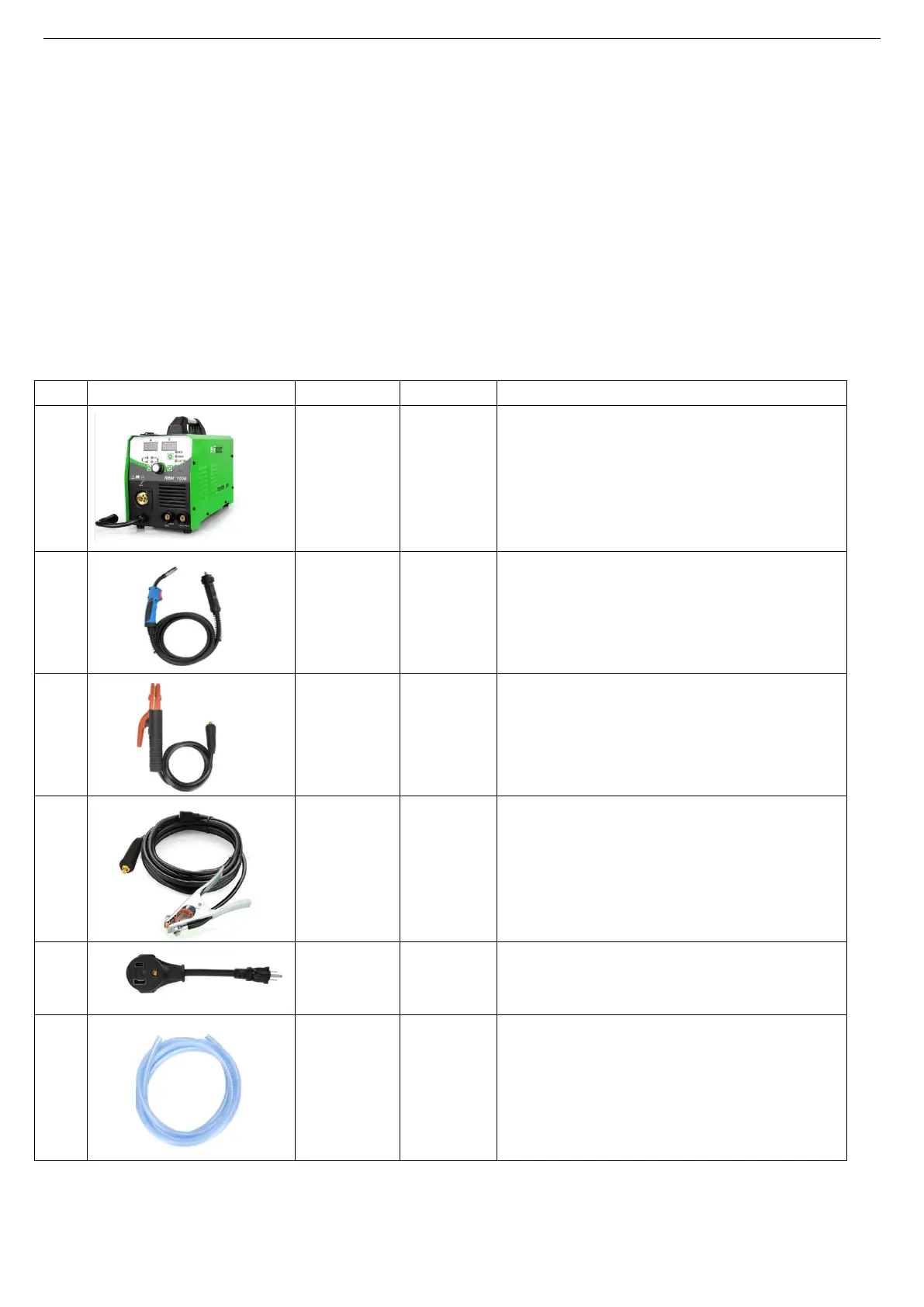

Part 2: Introduction to the product and configuration list
No.
Name
Qty
Remark
1
RBM2100
1
Please check outside of the whole machine no
scratch and break , it can power on normally.
2
MB15
welding
torch
1
3M, MB 15 MIG welding torch, European
central plug.
3
Welding
holder
1
2m 16MM2 cable, 300A copper American
welding holder +10-25mm2 European quick
plug.
4
Ground
clamp
1
2m 16MM2 cable, 300A Ground clamp
+10-25mm2 European quick plug.
5
Conversion
line
1
Conversion line only suit for 220V to 110V
dual-voltage input machines, if not dual-
voltage machines no this line included.
6
Transparent
hose
1
3m 8*12 transparent network hose.
