5. AC/DC Mode selection
6. Positive Terminal
Positive Terminal. Welding current flows from the power source via heavy duty bayonet type terminals. It is
essential, however,that the male plug is inserted and turned securely to achieve a sound electrical
connection..
7. Gas connector.
Reliably connects with the connector of the TIG welding gun and plasma cutting gun.
8. Five core aviation socket
Tig gun switch control line connection, cutting gun switch control line connection and remote control foot
switch control line connection.
9. Negative Terminal
Negative Terminal. Reliably connects with the electrode holder / TIG welding gun and plasma cutting gun.

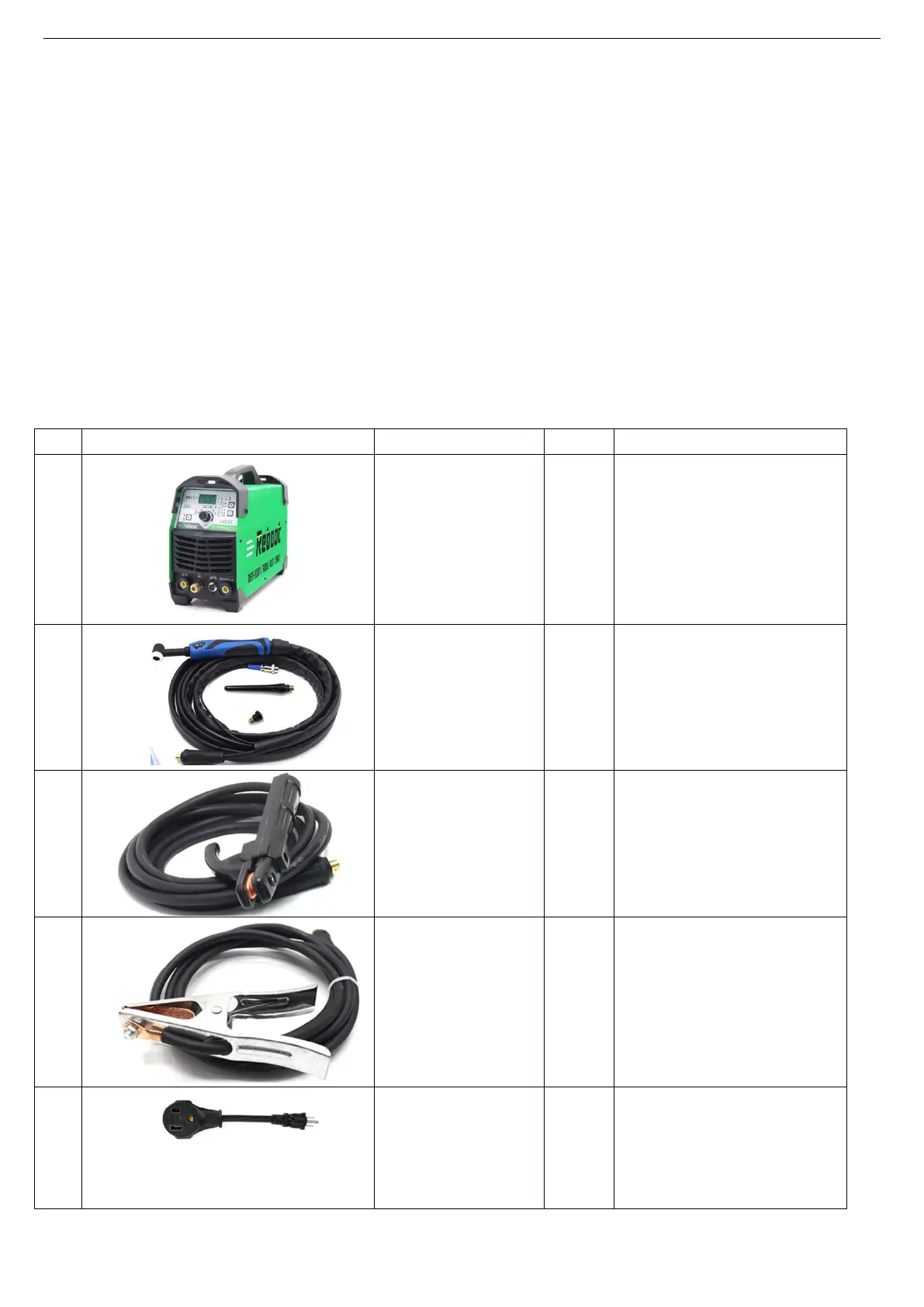

Part 2: Introduction to the product and configuration list
No.
Name
Qty
Remark
1
RBT-200PD/ACDC
1
Please check whether there are
scratches and breaks on the
outside of the whole machine,
and it can be started normally.
2
WP-17 Welding gun
1
4m WP-17 gun, 10-25
European style quick plug,
Trafimet quick plug, five-core
aviation plug.
3
Welding holder
1
3 meters 16MM2, 200A Italian
welding tongs +10-25
European quick plug
4
Ground wire pliers
1
3 meters, 16MM2, 300A
ground wire pliers + 10-25
European quick plug
5
Conversion line
1
Conversion line only suit for
220V to 110V dual-voltage
input machines, if not dual-
voltage machines no this line
included.
