User Guide for Single Module Fiber Laser
Chapter 3 Installation of the laser
The appearance of all the products is consistent. So no mark will be made in the
following is specifically. We will use ”1000W” to represent a fiber laser whose
average power can reach 1000W, and so as the other models.
3.1 Dimension of the machine

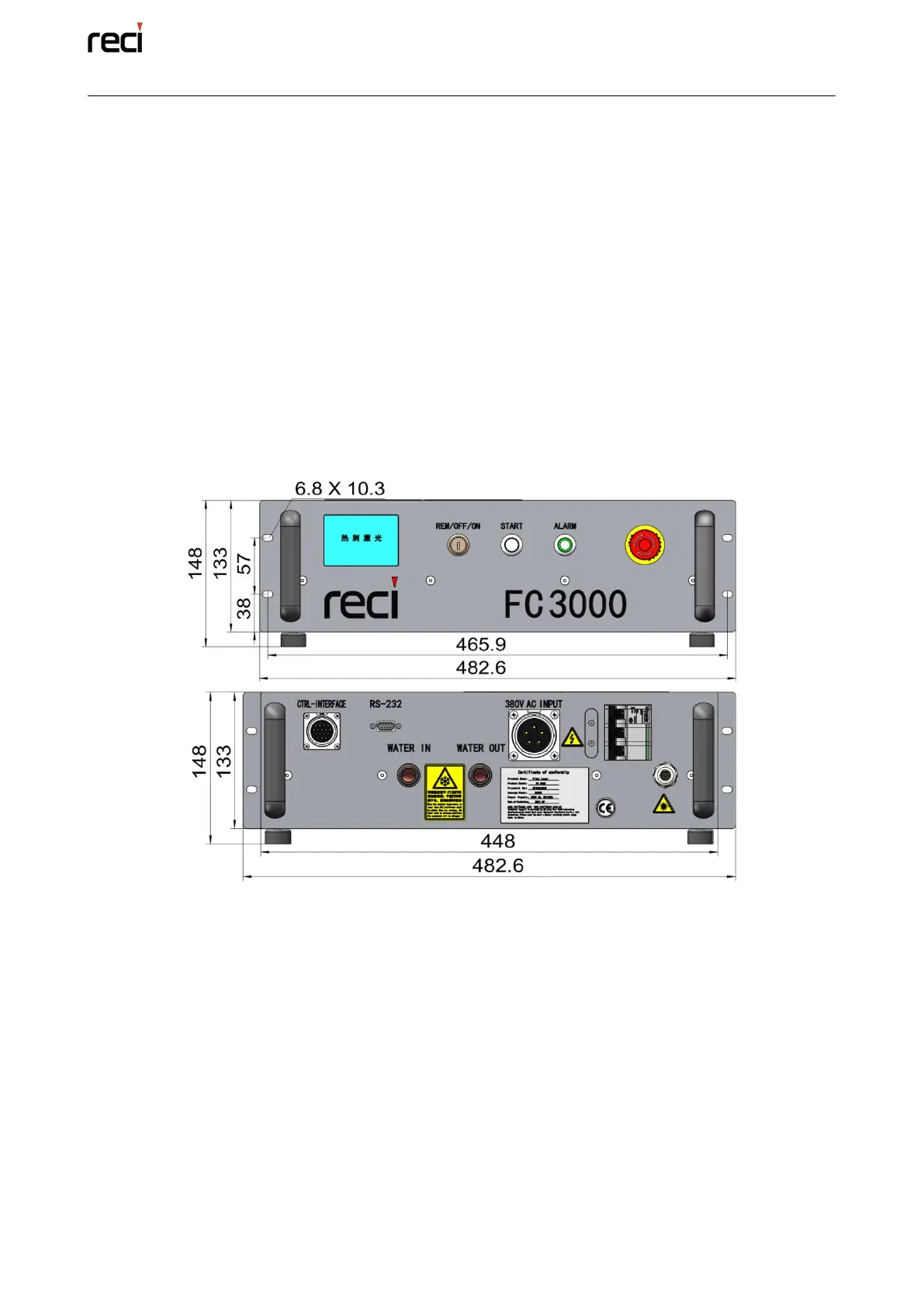

The dimension of the laser device is just below; figure 3.1 is for front panel and
rear panel of the series fiber laser.
Figure 3.1 Front view and Rear view
（
unit: mm
）
The figure 3.2 describes the side view and bottom view dimensions of 1000W,
1500W&2000W fiber laser; they are the same at appearance size; and then the
figure3.3 is for 3000W fiber laser.
