reci FC3000 User Manual

Beijing Reci Laser Technology Co., Ltd
User Guide for Single Module Fiber Laser
25
a) for1000W& 1500W
b) for 2000W& 3000W

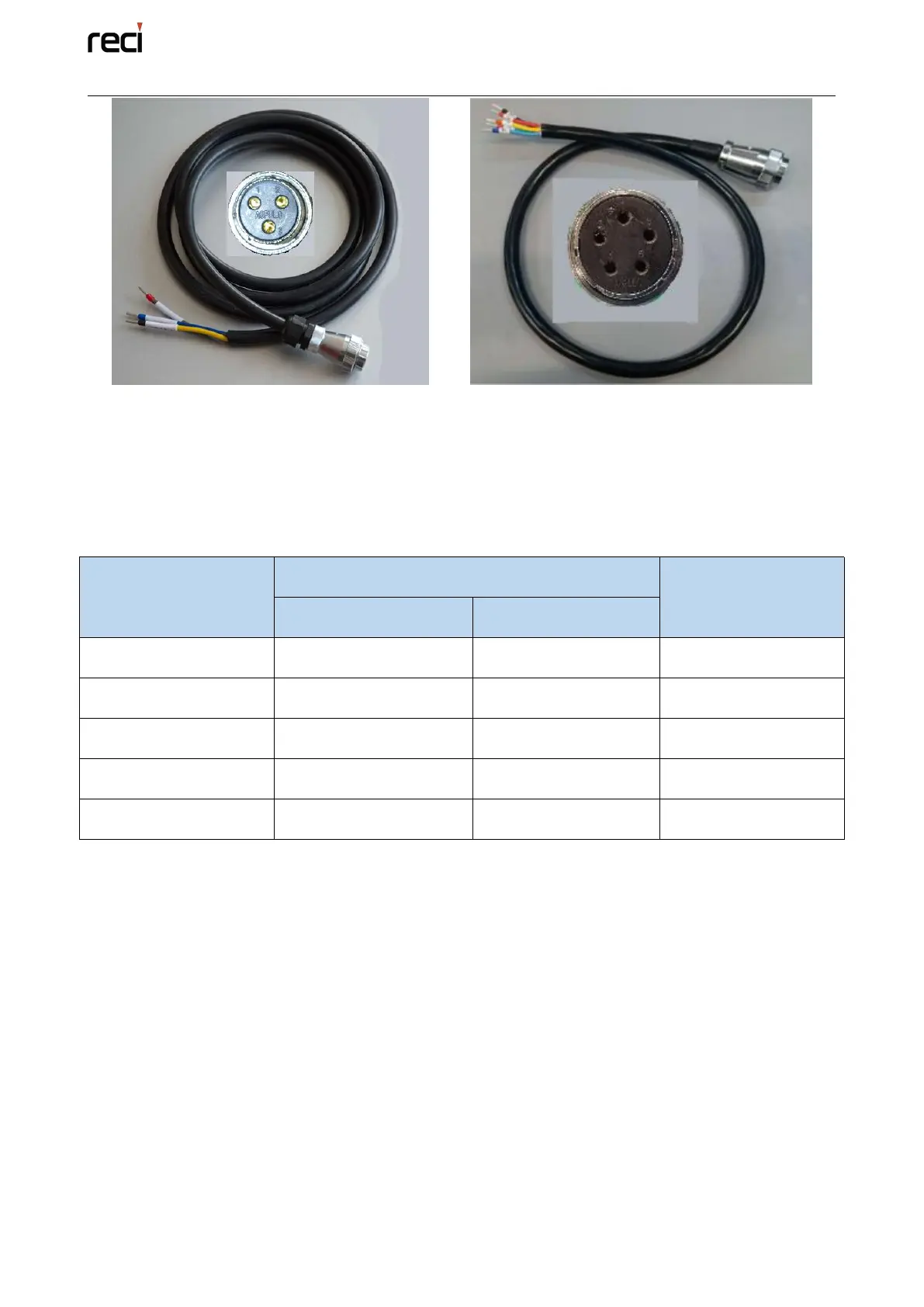

Figure 4.3 the wire for the AC source
The wiring definition is shown in the table 4.3
Table 4.3 definition of the AC wire
PIN
DESCRIPTION
REMARKS
1000W & 1500
2000W & 3000W
1
1L-live wire
1PE- Earth Wire
2
2N-Neutral wire
2L- live wire A
3
3PE-Earth Wire
3L- live wire B
4
----
4L- live wire C
5
----
Reserved
4.4 Interface Definition
4.4.1 RS 232 Connecting Wire
This wire is used to convert the RS232 to a USB.
