reci FC3000 - Electric Power Connection

Beijing Reci Laser Technology Co., Ltd
User Guide for Single Module Fiber Laser
24

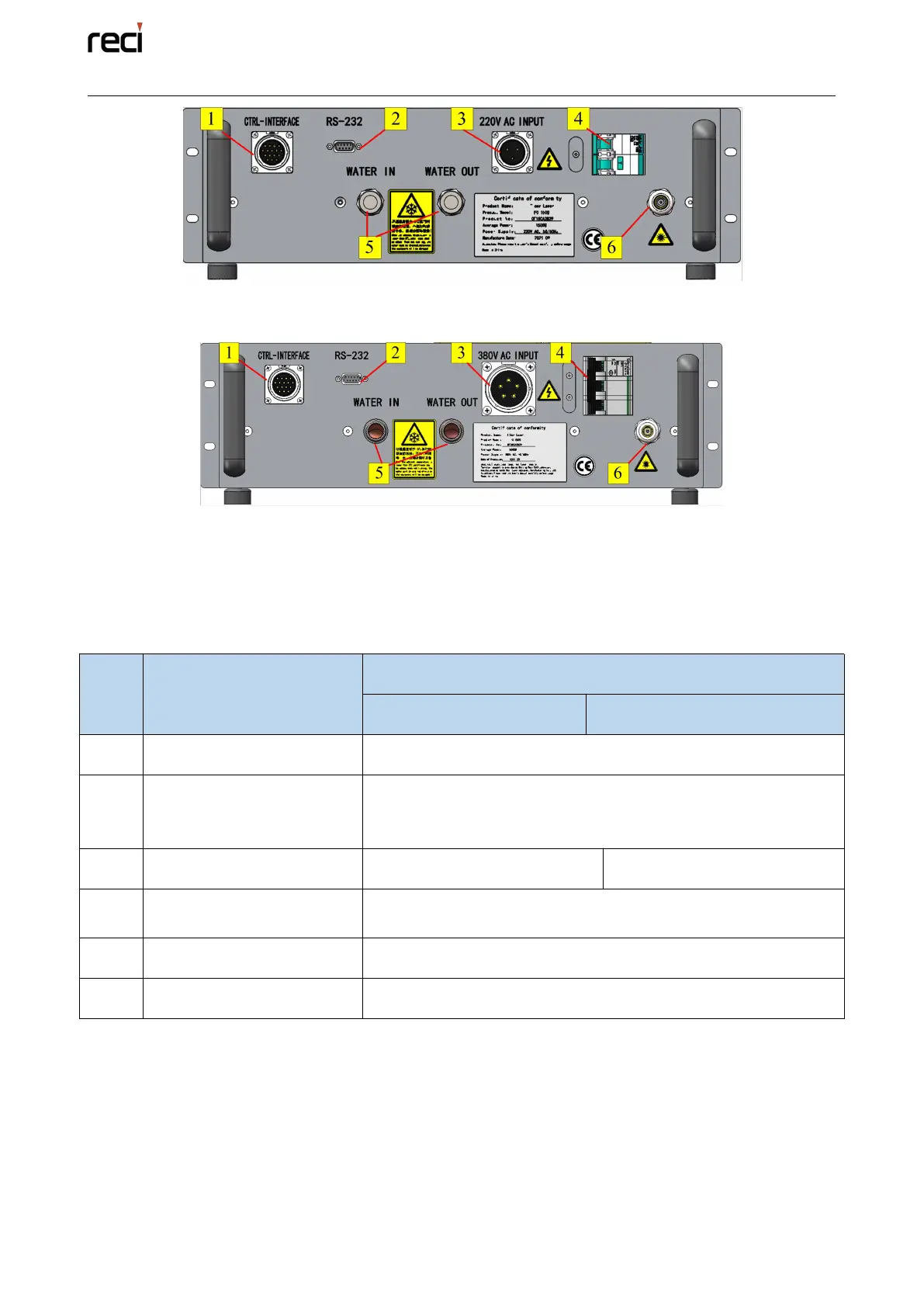

Figure 4.2(a) the Rear Panel of the 1000W &1500W fiber laser
Figure 4.2(b) the Rear Panel of the 2000W &3000W fiber laser
The button functions of the rear panel from 3000W are as the table 4.2
Table 4.2 Function of the button/switch on the rear Panel
NO
ITEMS
FUNCTION DESCRIPTION
1000W&1500W
2000W&3000W
1
CTRL-INTERFACE
External control connector
2
RS232
RS232 connector
Can be used for device program modification, providing a
matching RS-232 communication line when delivery
3
AC INPUT
220VAC power input
380VAC power input
4
Air Switch
Power switch of AC power
Push on, open AC power
；
push down, close the AC power
5
WATER (IN/OUT)
The input and output port of cooling water
6
Fixed holder of the QBH
For fixing QBH armor
4.3 Electric Power Connect
The power cord with 3pin (for 1000W& 1500W) or 5-pin (for 2000W& 3000W)
aviation plug is inserted into the rear panel with the "AC INPUT" socket and the
other end connected to the AC power supply.
