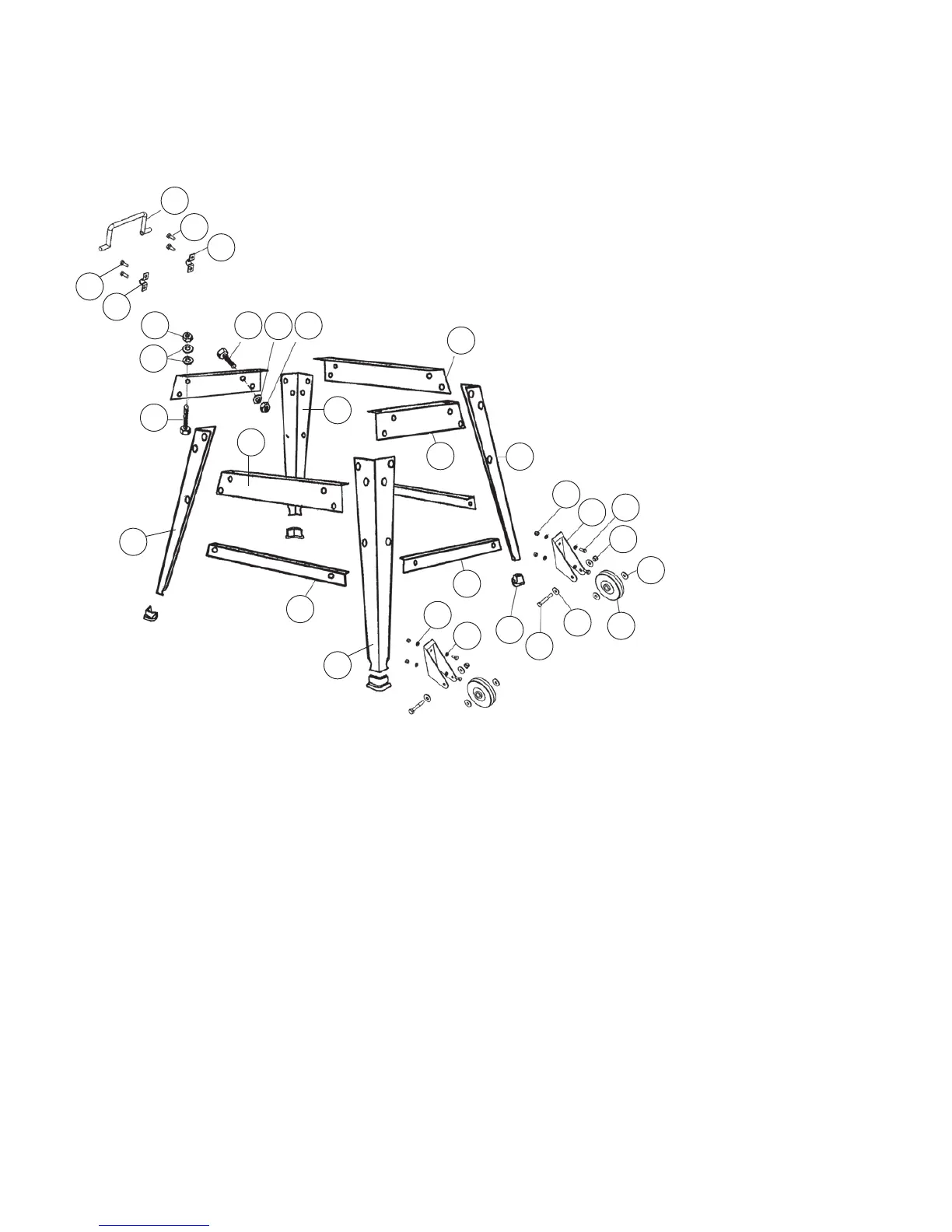

12. Parts Diagrams
1
2
3
4
5
6
78
9
10
11
12
Ref No. Description
1 Rubber shoe
2 Short mid brace support
3 Leg
4 Long top brace support
5 Hex nut
6 Washer
7 Hex bolt
8 Hex nut
9 Washer
10 Hex bolt
11 Long mid brace support
12 Short top brace support
13 D-handle
14 4 x pan head screws
Stand with wheel kit
13
14
15
16
20
17
21
18
19
22
23
24
25
Ref No. Description
15 2 x D-handle clamps
16 Hex nut
17 Wheel bracket
18 Hex bolt
19 Hex nut
20 Flat washer
21 Washer
22 Carriage bolt
23 Flat washer
24 Wheel
25 Washer
