Record Power BS300E Premium - Getting To Know Your Bandsaw; Machine Specification

8
2. Machine Specification
1. Getting To Know Your Bandsaw

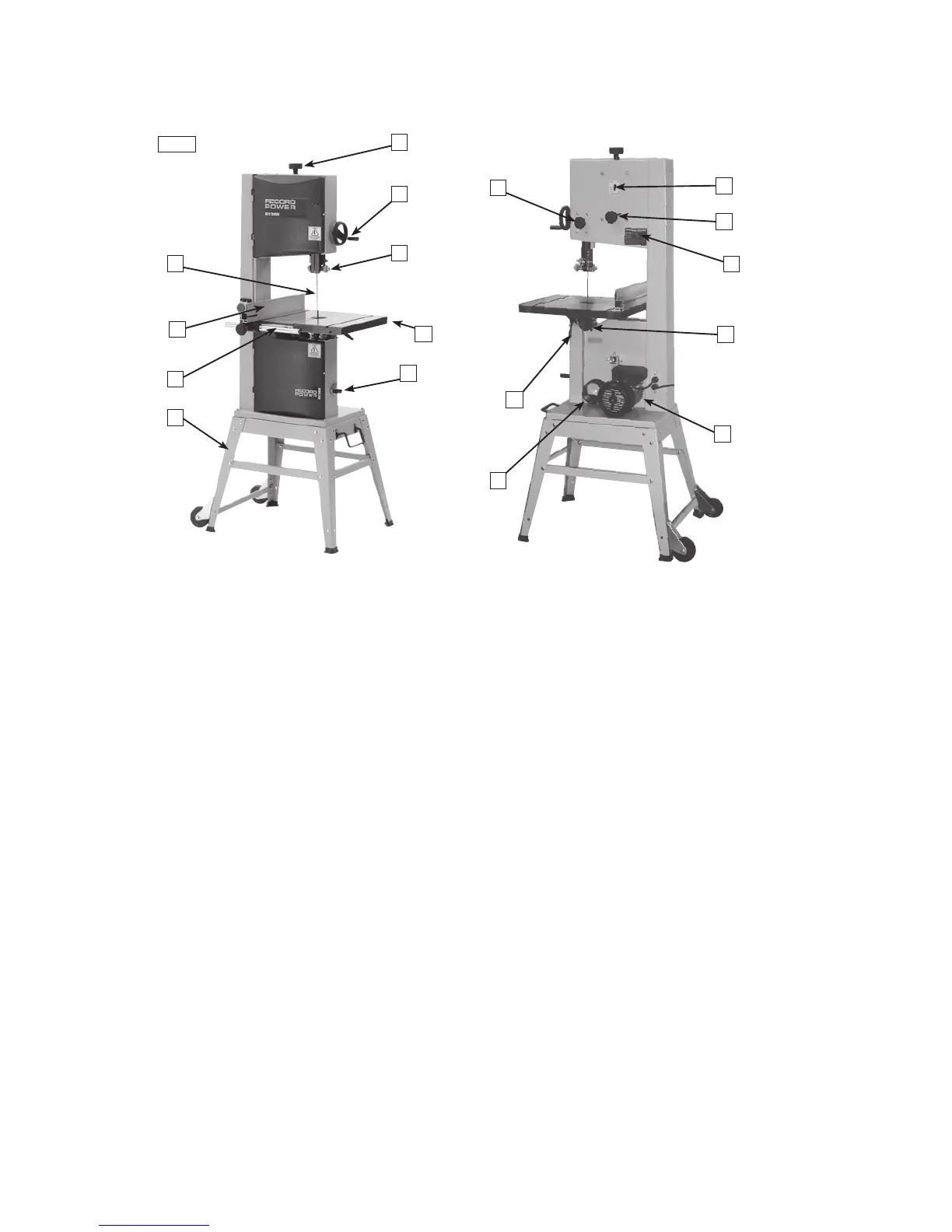

Fig.1
A Blade Tensioning Knob
B Rise & Fall Hand Wheel
C Blade
D Upper Blade Guides
E Table
F Rip Fence
G Rip Fence Rail
H Table Tilt Lock Handle
I Stand & Wheel Kit
J Belt Tension &
Speed Change Handle
K Blade Tension Indicator
L Rise & Fall Lock Knob
M Blade Tracking Knob
N Table Tilting Knob
O Motor Rating Plate
P 100 mm Dust Extraction Port
Q Motor
Blade length: 2370 mm (93”)
Blade width: 6 - 19 mm (
1
/
4
” -
3
/
4
”)
Max depth of cut: 190 mm
Throat depth: 305 mm
Table size: 480 x 400 mm
Max width blade to rip fence: 230 mm
Table height: 990 mm
Extraction port: 100 mm
Motor: 230 V / 50 Hz / 1 hp / 750 W
Full load current: 4.6 A
Weight: 85 kg
Footprint: 700 x 540 mm
Dimensions: Height 1670 mm x width 680 mm x depth 690 mm
Sound power level: 82 dBA (no load), 100 dBA (load)
Sound pressure level: 75 dBA (no load), 90 dBA (load)
A
B
C
F
I
D
E
H
J
L
P
K
M
Q
N
G
O
