3. Stand & Wheel Kit Assembly
3.1 Stand & Wheel Kit Assembly
CAUTION! The machine is heavy. Additional help or a suitable
lifting device or support will be required for lifting the machine
onto the stand.

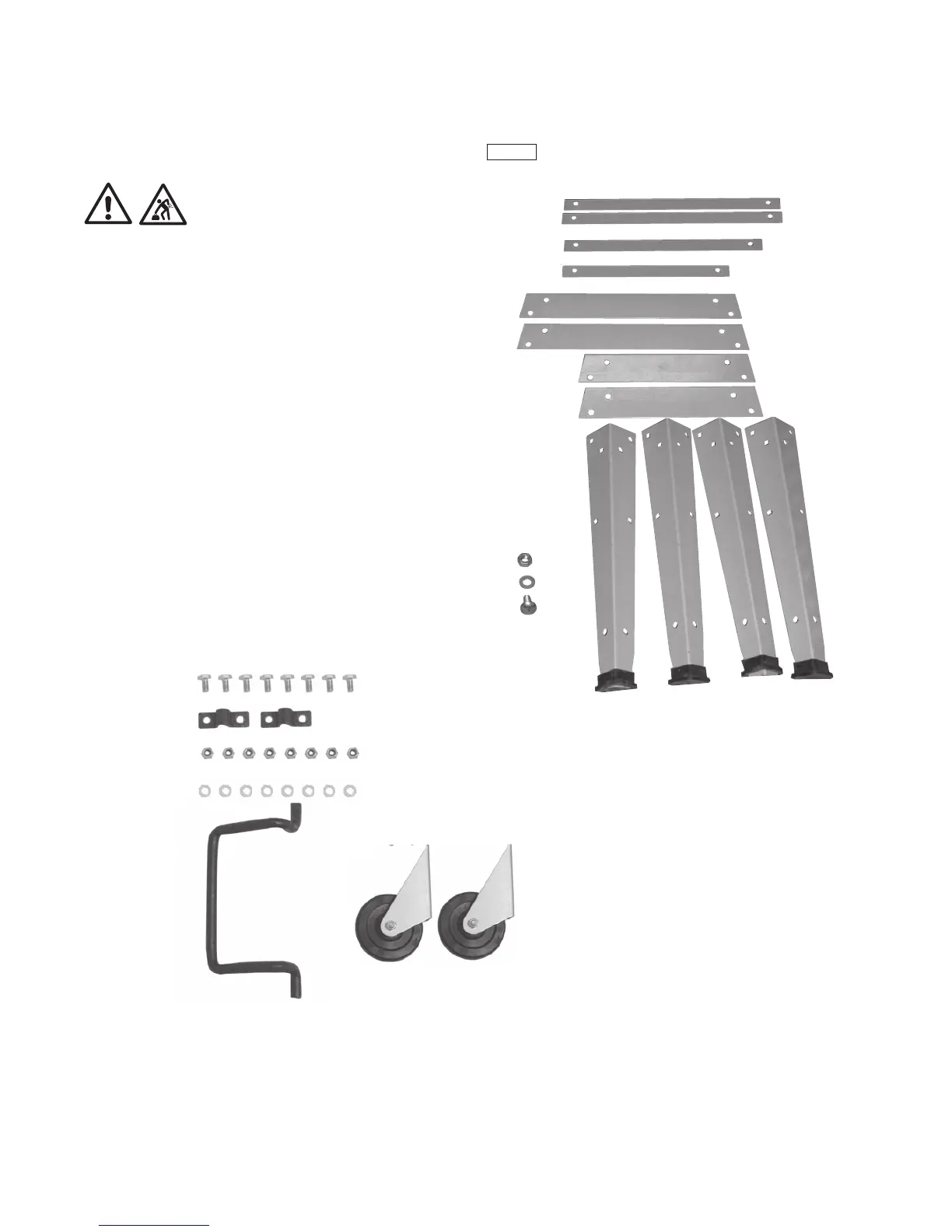

The stand and wheel kit comes as a self assembly unit Fig.3.1.
Stand
1. 2 x Long mid brace supports
2. Medium mid brace support
3. Short mid brace support
4. 2 x Long top brace supports
5. 2 x Short top brace supports
6. 4 x Legs
7. 24 x Stand fixing nuts bolts and washers (each)
Wheel Kit
8. 8 x Hex bolts
9. 2 x D-Handle brackets
10. 8 x Nylon nuts
11. 8 x Washers
12. D-handle
13. 2 x Casters
1
3
2
4
5
6
7
8
9
10
11
12 13
Fig.3.1
