2. Getting To Know Your Table Saw
3. Machine Specifications
Blade size: 250 mm
Blade bore: 30 mm
Blade speed: 4000 rpm
Max width (blade to fence) : 600 mm
Table Height : 890 mm
Max depth of cut using 250mm blade: 80 mm at 90º / 56 mm at 45º
Extraction ports: 30 mm upper, 100 mm lower
Motor power: 230 V / 50 Hz / 2hp / 1500 W
Full load current: 9.1 A
Weight: 110 kg
Dimensions not including the sliding carriage: 900 mm (height) x 625 mm (width) x 675 mm (length)
Dimensions of sliding beam: 1050 mm (length) x 215 mm (width)
Sliding carriage stroke / max sheet capacity: 620 mm
Noise emission: Sound power level < 100 dB (A)
Sound pressure level < 90 dB (A)

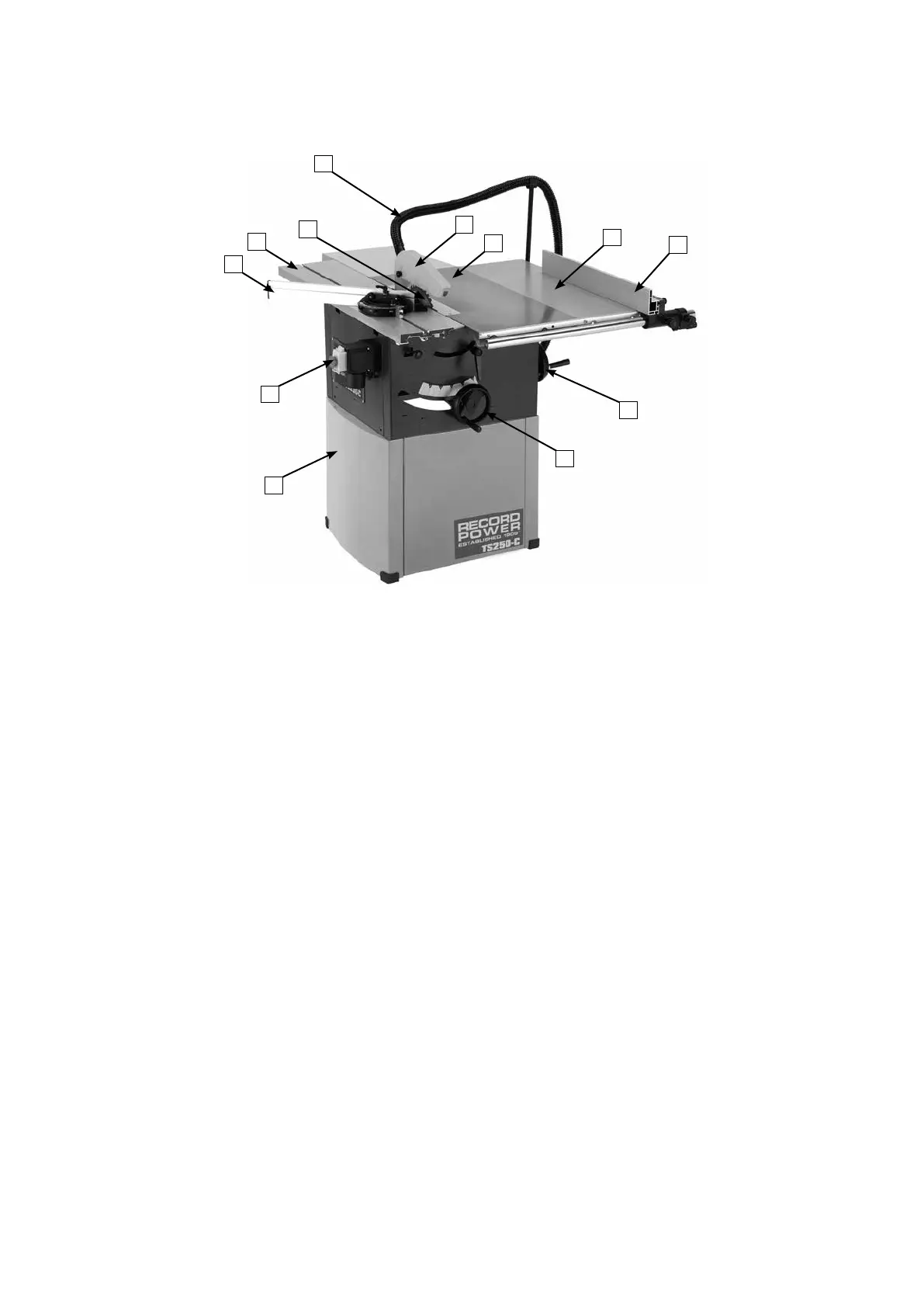

A Extraction Hose
B Blade
C Crown Guard
D Rip Fence
E Main Table
F Blade Raise & fall
G Switch Unit
I Extension Table
J Blade Tilt
K Cabinet Base
M Sliding Table
N Cross Cut Fence
