Record Power TS250C - Final Assembly; Crown Guard Extraction Hose Connection

19
6. Final Assembly

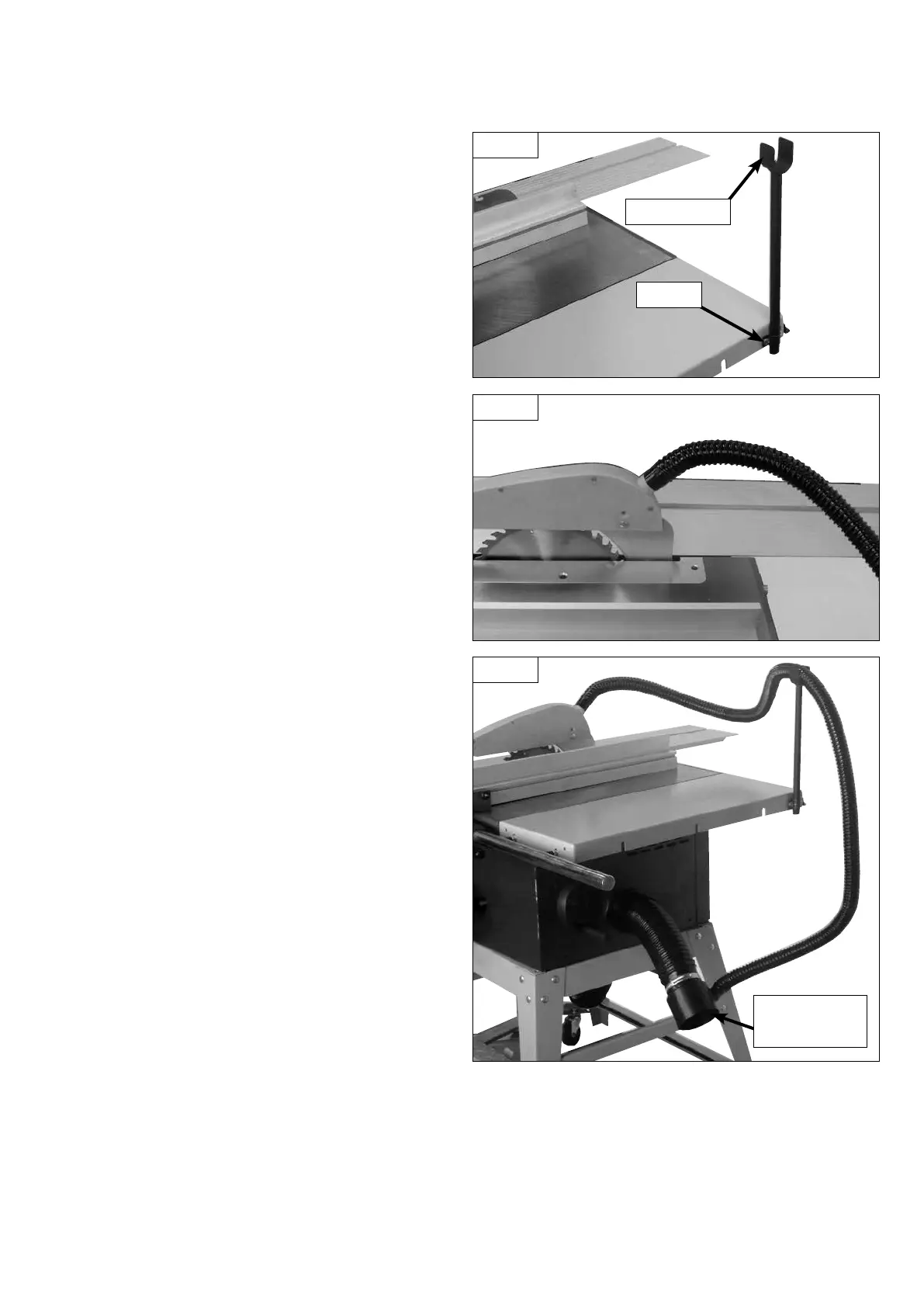

Fitting Crown Guard Extraction Hose
1. Fit the hose support in the U-piece that can be fitted to the rear corner
of the table or optional table extension. Fig.6.1.
2. Now attach one end of the hose to the crown guard Fig.6.2
3. Hook the hose over the hose support and feed underneath the table to
connect with the main extraction outlet Fig.6.3
U-piece
Hose Support
Main extraction
outlet
Fig. 6.1
Fig. 6.2
Fig. 6.3
