Record Power TS250C - Handwheel & Extraction Hose Installation; Securing Extraction Hose Connector

12

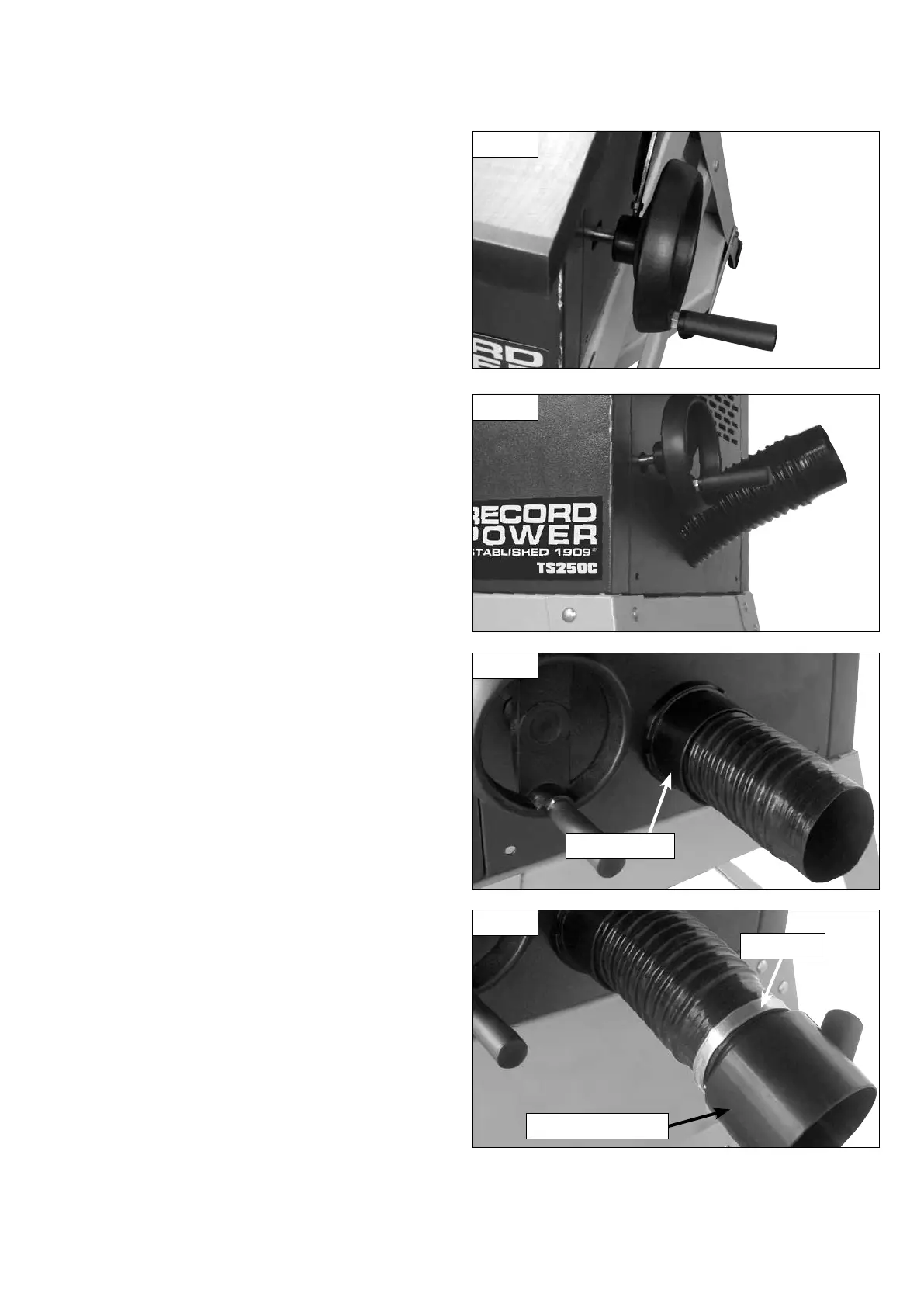

4. Saw Unit Assembly - cont.
Fig. 4.2
Fig. 4.3
Extraction port
Fig. 4.1
4.2 Fitting the extraction hose
1. Unfasten the dust extraction hose from underneath the main saw unit
and thread through the extraction hole in the side of the
machine Fig. 4.2.
4.1 Fitting the handwheel
Attached the handwheel for blade tilt and rise & fall with Hex.
wrench. Fig. 4.1
2. Fit the extraction port over the end of the hose and clip into
place Fig.4.3.
3. Secure the extraction connector to the end of the hose using the jubilee
clip Fig.4.4.
Jubilee clip
Fig. 4.4
Extractor connector
