Connection to control unit
4
102-903109272
V1.0
6/ 6

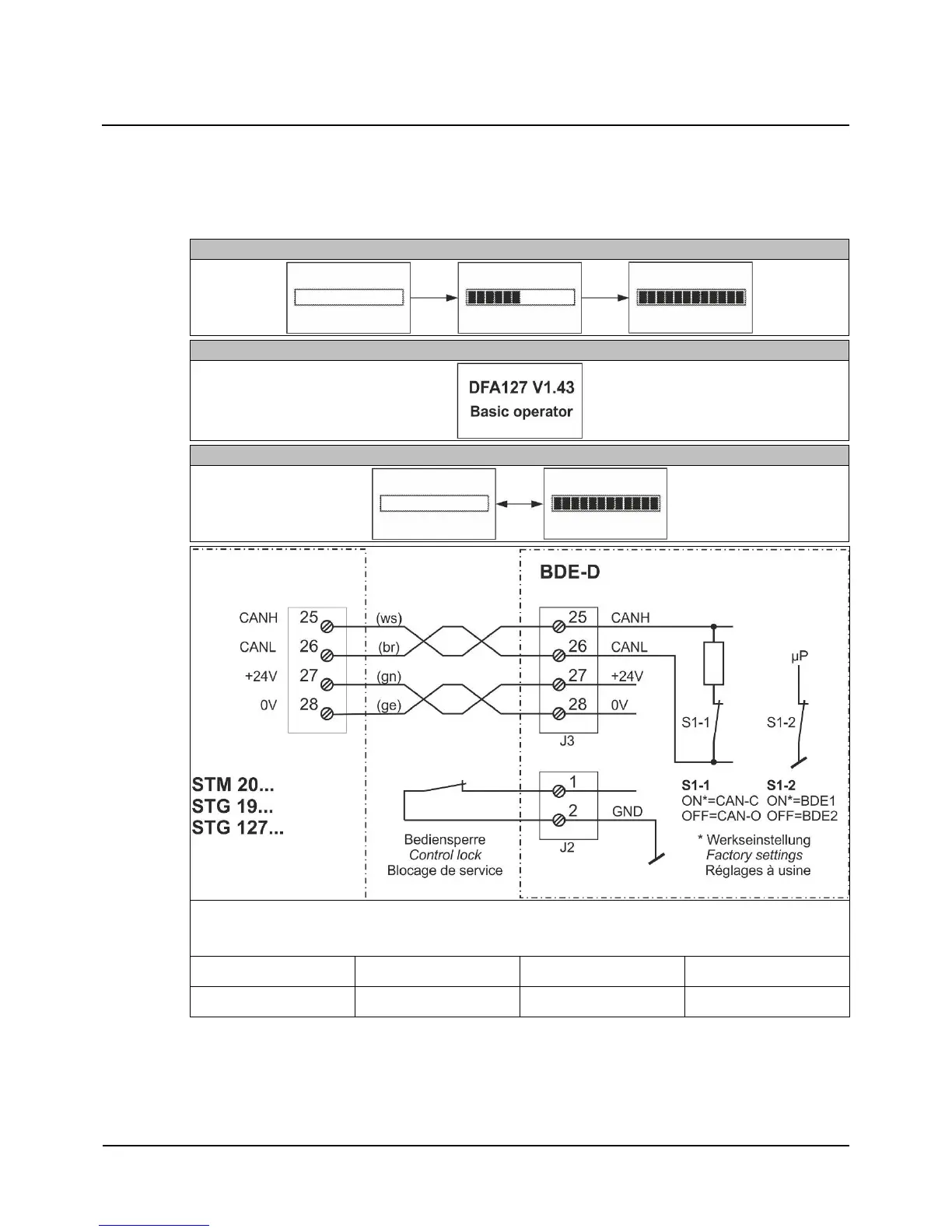

Connection to control unit
Connection on CAN-bus:
1)
Plug in the connecting cable to the CAN-port (11) and con
nect i
t to the CAN-port on the STG (twisted-
pair cable).
Connect to the control unit…
The control unit has been connected
(
example
)
No connection to the control unit
1)
Set the DIP-switches (S1-1, S1-
2) before connecting to the CAN
-port!
ON=CAN-C: CAN termination closed
ws:
white
gn:
green
br:
brown
ge:
yellow
4
5
7
Table of Contents
Table of Contents
2
General Information
3
Brief Description
3
Document Identification
3
Technical Data
3
Presentation of Warning Signs
4
Identification
5
Connection to Control Unit
6
Key Functions
7
Important Notes
8
Select the Mode of Operation
9
Carrying out Functions
10
Reading out Information
11
Fault Indications
12
Control Lock
13
Parameter with Slider Controls
14
Error Elimination
15
