Record DFA 70 - Page 14

3 Description
14 / 34 BAL_DFA_70_EN_1V0_REC_102-127109270
See Pos. 8

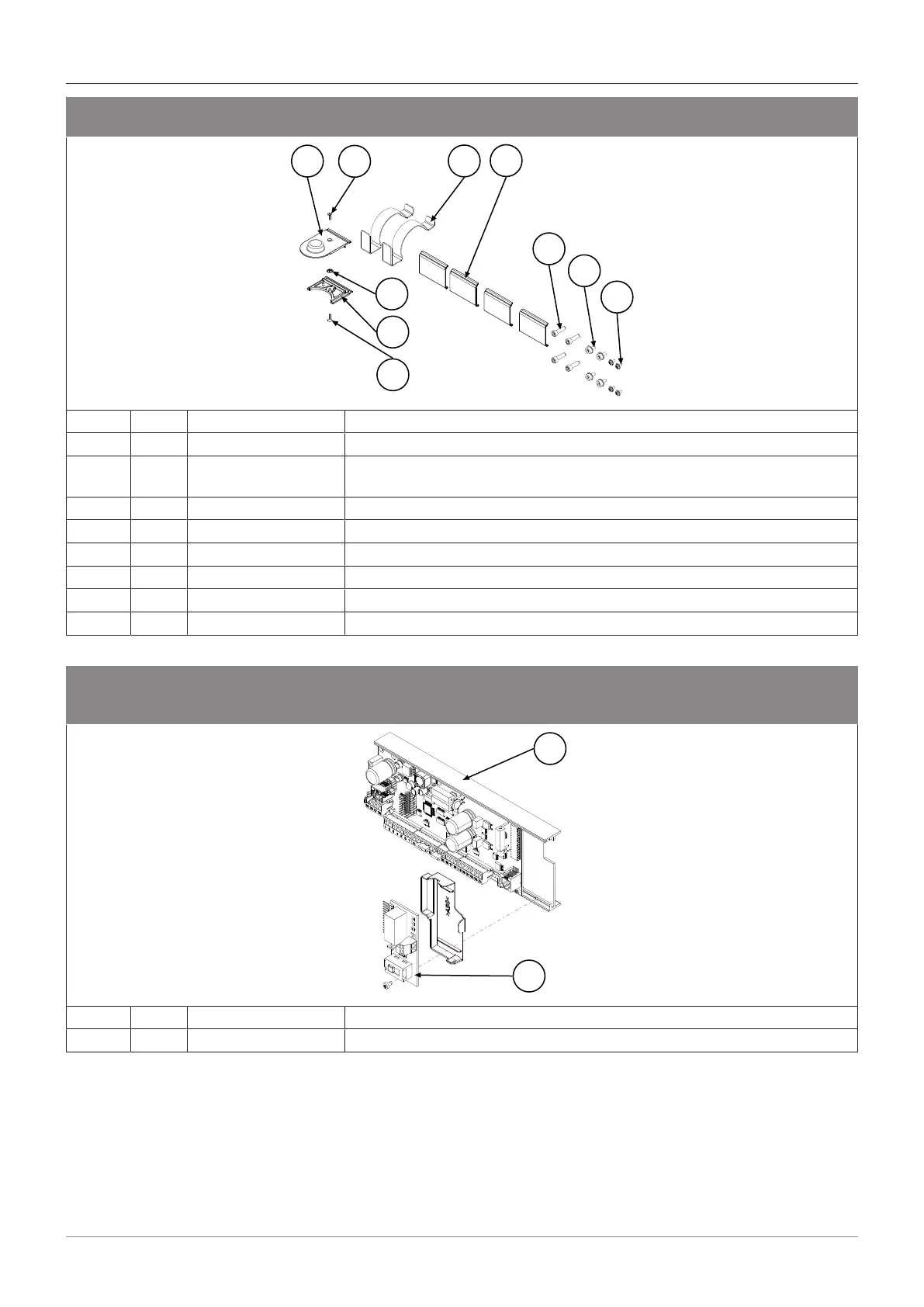

102-127816185_Set Mounting material DFA 70
1
2
3
8
9
4
5
6
7
5
1 1 102-127125880 Shaft cover DFA 70
2 4 102-127126148 Cable attachment DFA 70
3 4 102-031153 Phillips cross recessed pan washer head machine screw BN4825 VP
M4x8
4 1 102-031102 Quicklock BN833 SW 3
5 2 102-108691 Thread forming screw Pozidriv flat head DIN7500M SW VP M4x12
6 1 102-127125881 Insert part DFA 70
7 2 102-127126172 Cable guide bracket DFA 70
8 4 102-110755 ZK-Schr I-6kt BN3873 VP M6x10
9 4 102-080029 Hex socket head cap screws fully threaded DIN912 VP M6x20
See Pos 11
102-127810198 Control unit STG 127
102-127808229_PCB assembled DFA 127 MOT
1
2
1 1 102-127808229 PCB assembled DFA 127 MOT
2 1 102-127810198 Control unit STG 127
