Redarc BCDC1225 User Manual

SOLAR
INPUT
Loads
40A
Fuse
Battery
config
wire
Start
Battery
30A
Fuse
24V
Load
Fuse
Note: Power wires must be
at least 6mm² and must be
crimped using an
appropriate crimp tool.
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
12V Solar Panel
Array
24V Changeover
Relay (30A)
to vehicle
ignition
INPUT
12V
Loads
Load
Fuse
40A
Fuse
Battery
config
wire
Start
Battery
40A
Fuse
12V Solar Panel
Array
12V Changeover
Relay (40A)
to vehicle
ignition
Note: Power wires must be
at least 6mm² and must be
crimped using an
appropriate crimp tool.
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
INPUT
SOLAR
INPUT
11

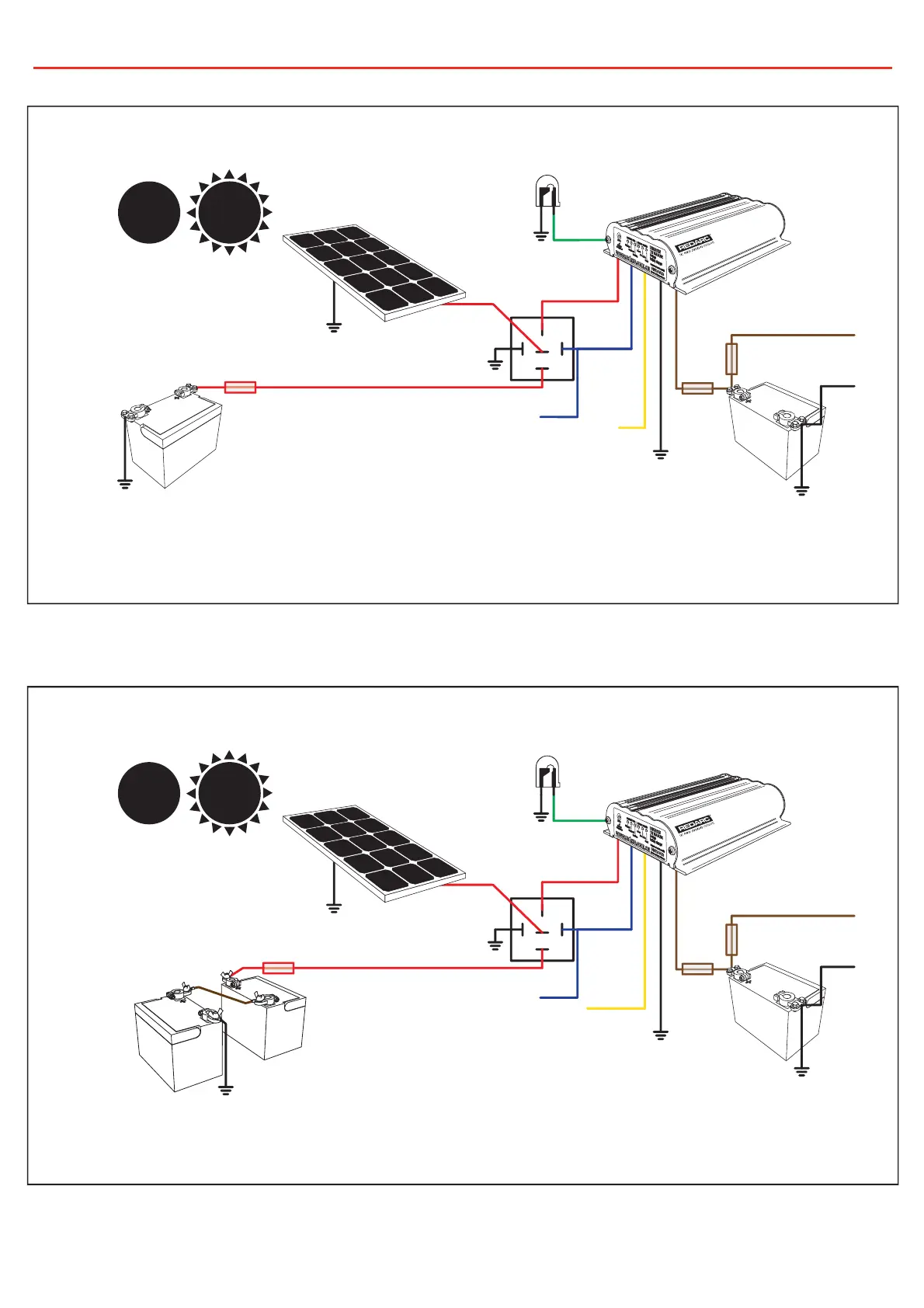

Figure 2.6 - Standard setup for a 24V Start Battery & 12V Solar array
Figure 2.5 - Standard setup for a 12V Start Battery & 12V Solar array

Redarc BCDC1225 Specifications

General

Brand	Redarc
Model	BCDC1225
Category	Automobile Battery Charger
Language	English
