2 INSTALLATION

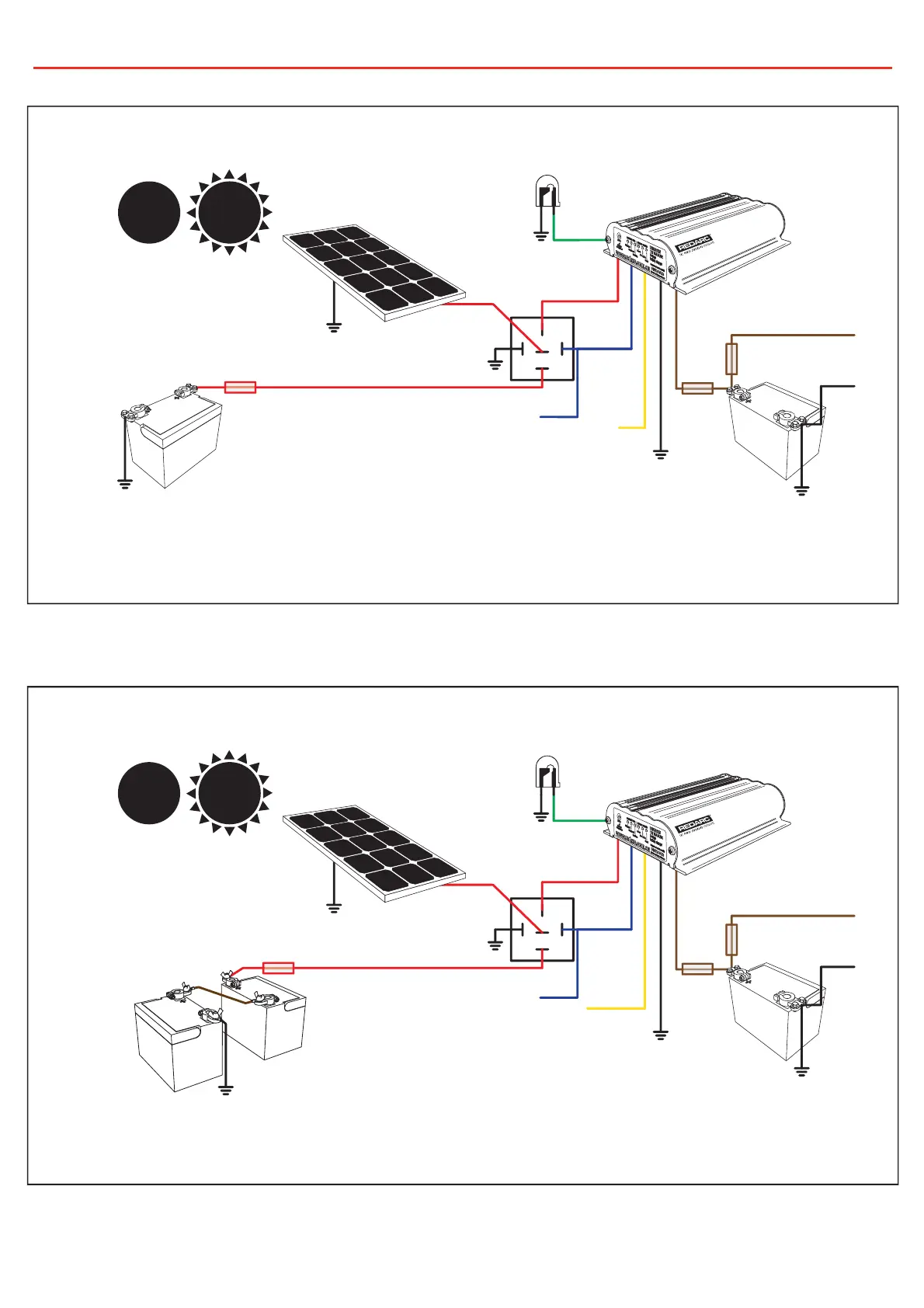

Figure 2.8d - Using a changeover relay for 12V Start Battery & 12V
Solar array inputs
Charging Profile Select
Refer to section 2.3
Loads
Load
Fuse
All ground points must
be connected to chassis
earth.
12V
Fuse*
Start
Battery
12V Solar Panel
Array
12V Changeover
Relay 60A
(P/N RK1260)
to vehicle
ignition
Auxiliary
Battery
INPUT
SOLAR
INPUT
*Fuse Ratings as per table on Page 2
Fuse*
Red
Blue
Orange
Black
Brown
Green
Optional LED
A Relay suitable for 12V Vehicle installations is
available as part of the REDARC RK1260 Relay Kit.
The kit also includes butt-splice connectors, a
wiring loom, heat shrink, and instructions.
Automatic Source Select
ALL MODELS
Loads
Load
Fuse
All ground points must
be connected to chassis
earth.
SOLAR
Fuse*
12V Solar Panel
Array
Auxiliary
Battery
INPUT
*Fuse Ratings as per table on Page 2
Red
Blue
Orange
Black
Brown
Green
Charging Profile Select
(Refer to section 2.3)
Optional LED
ALL MODELS
Figure 2.8c - All Models Standard setup for a 12V Solar
array
