Redarc BCDC1240 User Manual

Loads
40A
Fuse
Battery
config
wire
Start
Battery
30A
Fuse
24V
Load
Fuse
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
Note: Power wires must be
at least 6mm² and must be
crimped using an
appropriate crimp tool.
INPUT
SOLAR
Loads
40A
Fuse
Battery
config
wire
12 Solar Panel
Array
Load
Fuse
Note: Power wires must be
at least 6mm² and must be
crimped using an
appropriate crimp tool.
All ground points must
be connected to chassis
earth.
Auxiliary
Battery
INPUT
10
2 INSTALLATION

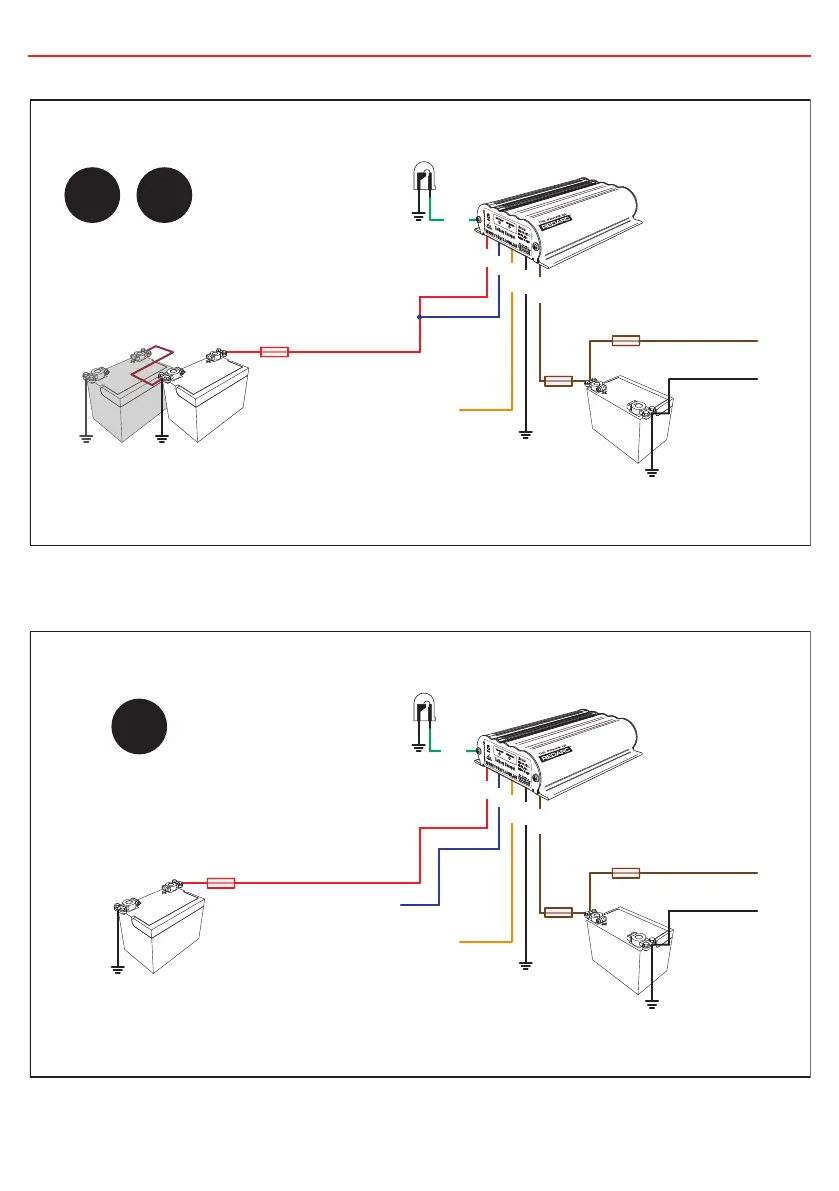

Figure 2.4 - Standard setup for a 24V Start Battery

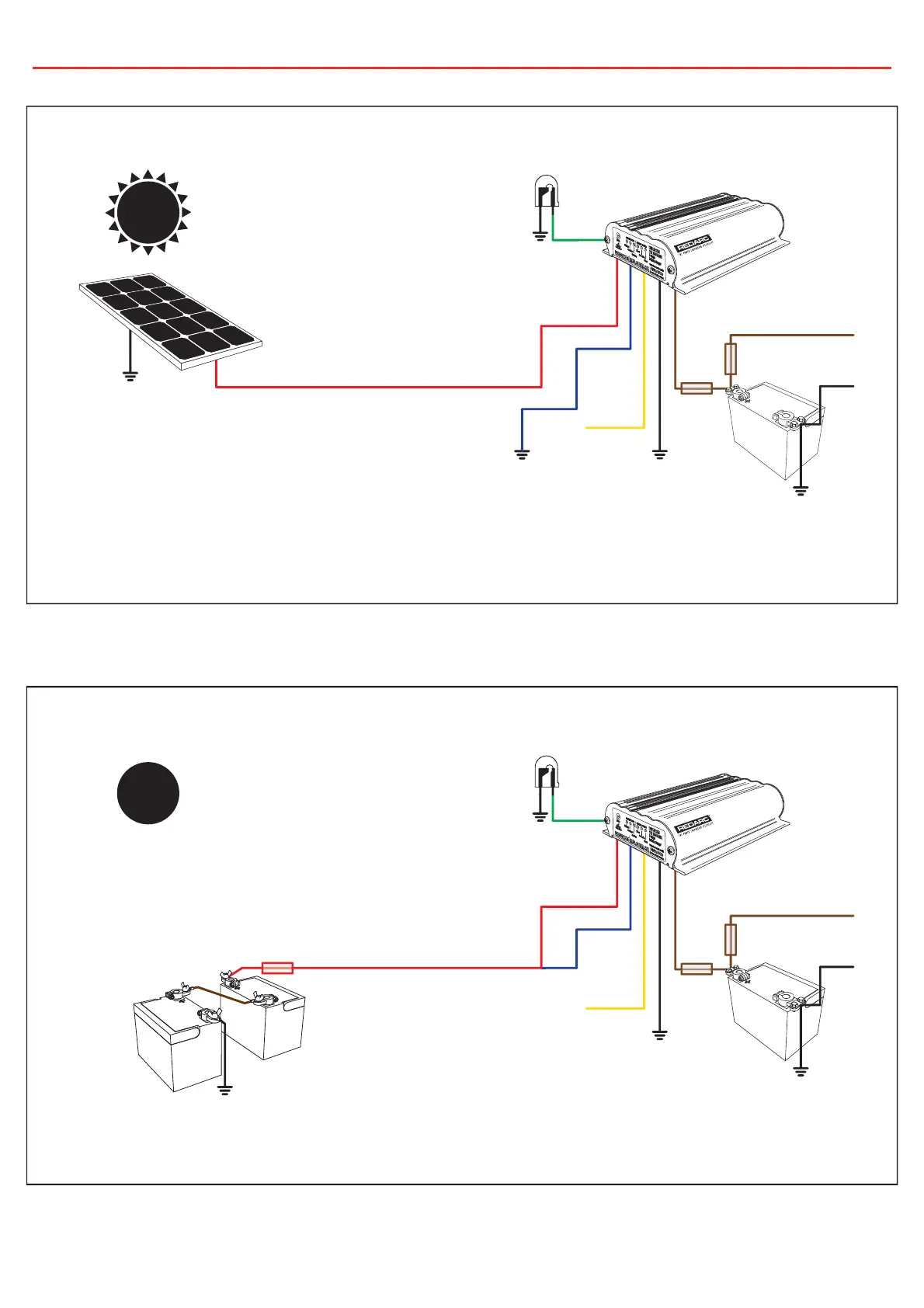

Figure 2.3 - Standard setup for a 12V Solar array

Redarc BCDC1240 Specifications

General

Input Voltage	9-32V DC
Output Voltage	12V DC
Output Current	40A
Efficiency	Up to 96%
Battery Chemistry	AGM, Gel, Calcium
Protection Features	Over-voltage, under-voltage, over-temperature, short-circuit, reverse polarity
Solar Input	Yes
