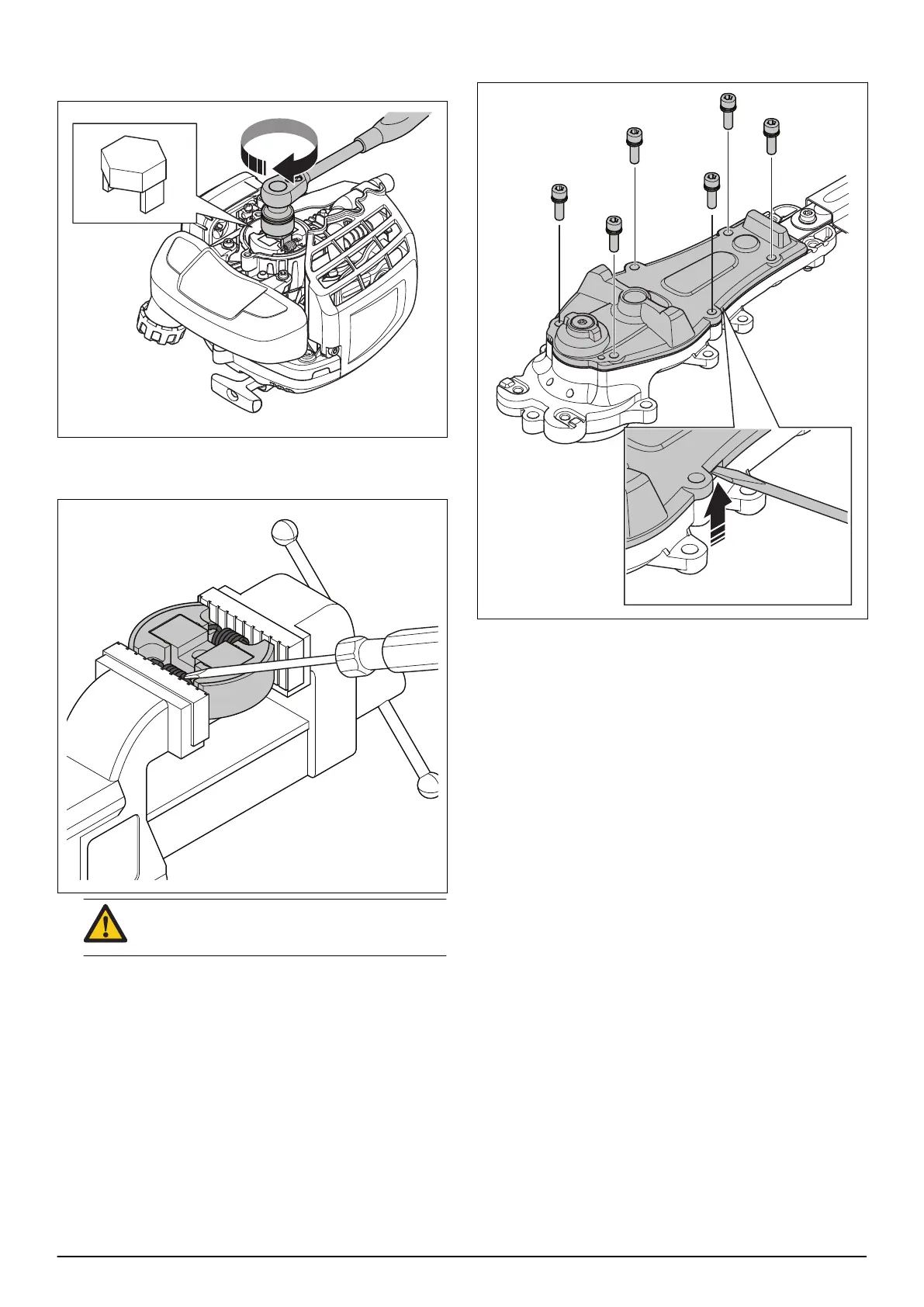

7. Use the clutch removal tool to remove the clutch.
The clutch has a left hand thread. Refer to
Servicing
tools on page 10
.
8. Remove the clutch assembly.
9. Put the clutch assembly in a vise.
CAUTION: Use rubber brackets in the vise
to prevent damage to the clutch assembly.
10. Disassemble the clutch shoes from the hub with a
screwdriver.
11. Assemble in the opposite sequence.
7.12.2 To disassemble and assemble the gearbox
1. Remove the cutting unit. Refer to
To remove and
install the cutting unit on page 30
.
2. Remove the clutch springs.
3. Remove the 6 screws and remove the gearbox
cover. Use a flat screwdriver if it is necessary.
1351 - 002 - 25.11.2020 Repair instructions - 31
