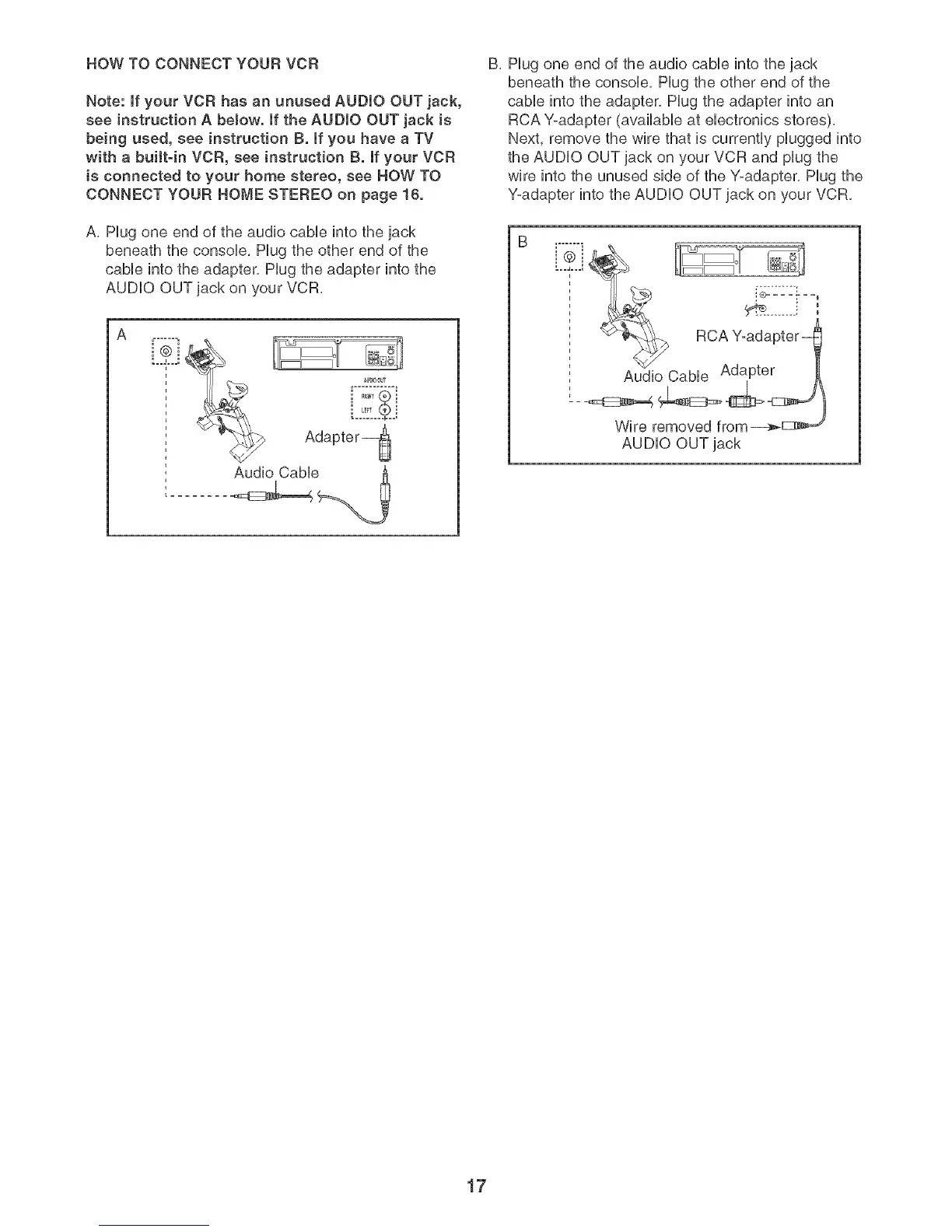

HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A below, if the AUDIO OUT jack is
being used, see instruction B. mfyou have a TV
with a buitt-in VCR, see instruction B. ff your VCR
is connected to your home stereo, see NOW TO
CONNECT YOUR HOME STEREO on page 16.
A, Hug one end of the audio cabUeinto the jack
beneath the consoUe, Hug the other end of the
came into the adapter, Hug the adapter into the
AUDUO OUT jack on your VCR,
A
_....'..._
AU_OOUT
RIGHT_
B, Hug one end of the audio cabUe into the jack
beneath the consoUe, Hug the other end of the
came into the adapter, Hug the adapter into an
RCA Y-adapter (avaHaMe at eUectronics stores),
Next, remove the wire that is currently pUugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter, Plug the
Y-adapter into the AUDIO OUT jack on your VCR,
AUDIO OUT jack
17
