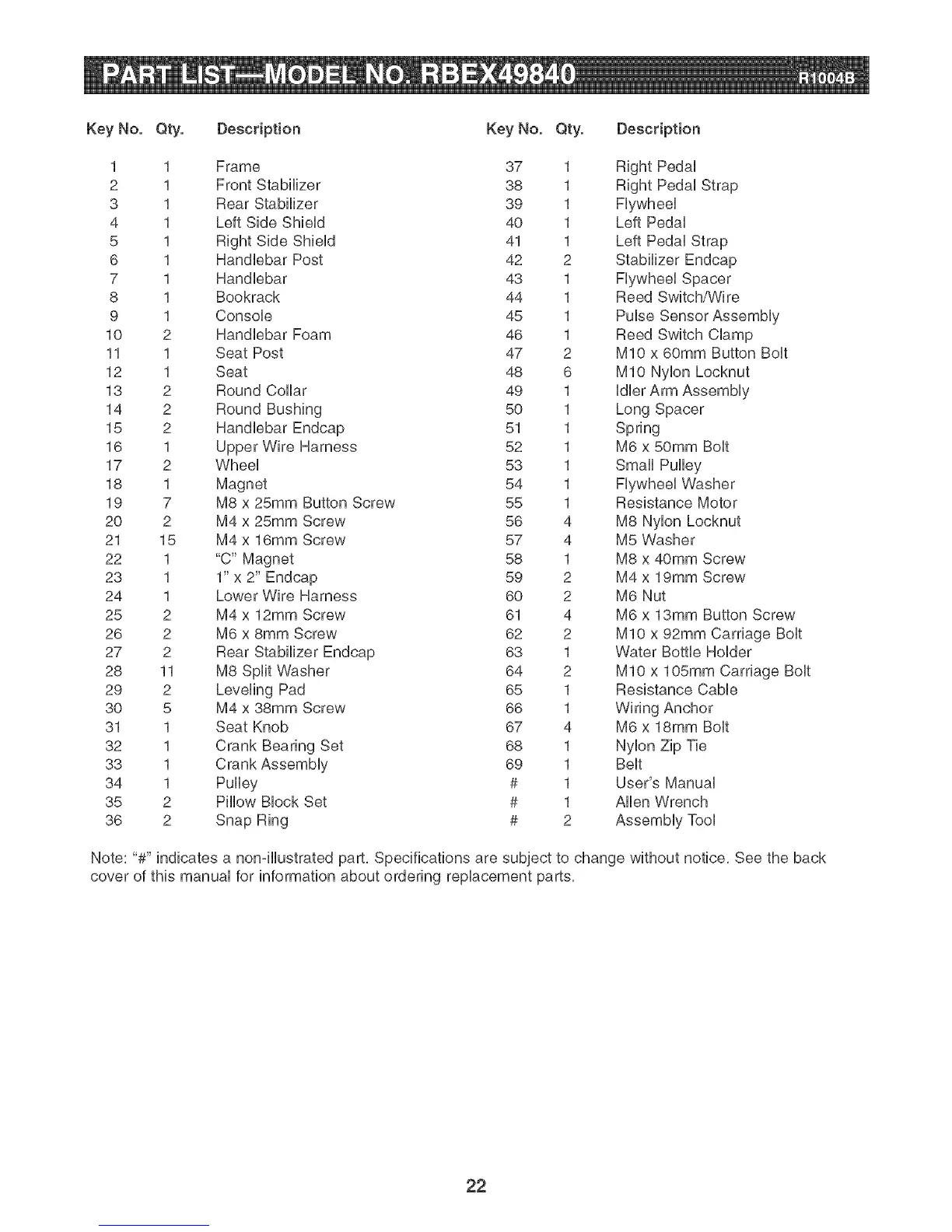

Key No. Qty. Description Key No. Qty. Description
1 1 Frame 37 1 Right PedaU
2 1 Front Stabilizer 38 1 Right PedaUStrap
3 1 Rear Stabilizer 39 1 FUywheeU
4 1 Left Side ShieUd 40 1 Left PedaU
5 1 Right Side ShieUd 41 1 Left PedaUStrap
6 1 HandUebar Post 42 2 Stabilizer Endcap
7 1 HandUebar 43 1 FUywheeUSpacer
8 1 Bookrack 44 1 Reed Switch/Wire
9 1 ConsoUe 45 1 PuUseSensor AssemMy
10 2 HandUebar Foam 46 1 Reed Switch CUamp
11 1 Seat Post 47 2 MIO x 60mm Button BoUt
12 1 Seat 48 6 MIO NyUonLocknut
13 2 Round Collar 49 1 UdUerArm AssemMy
14 2 Round Bushing 50 1 Long Spacer
15 2 HandUebar Endcap 51 1 Spring
16 1 Upper Wire Harness 52 1 M6 x 50mm BoUt
17 2 WheeU 53 1 Small Pulley
18 1 Magnet 54 1 FUywheeUWasher
19 7 M8 x 25mm Button Screw 55 1 Resistance Motor
20 2 M4 x 25mm Screw 56 4 M8 NyUonLocknut
21 15 M4 x 16mm Screw 57 4 M5 Washer
22 1 "C" Magnet 58 1 M8 x 40mm Screw
23 1 1" x 2" Endcap 59 2 M4 x 19mm Screw
24 1 Lower Wire Harness 60 2 M6 Nut
25 2 M4 x 12mm Screw 61 4 M6 x 13mm Button Screw
26 2 M6 x 8mm Screw 62 2 MIO x 92mm Carriage Bolt
27 2 Rear Stabilizer Endcap 63 1 Water Bottle Holder
28 11 M8 Split Washer 64 2 MIO x 105mm Carriage Bolt
29 2 Leveling Pad 65 1 Resistance Cable
30 5 M4 x 38mm Screw 66 1 Wiring Anchor
31 1 Seat Knob 67 4 M6 x 18mm Bolt
32 1 Crank Bearing Set 68 1 Nylon Zip Tie
33 1 Crank Assembly 69 1 Belt
34 1 Pulley # 1 User's Manual
35 2 Pillow Block Set # 1 Allen Wrench
36 2 Snap Ring # 2 Assembly Tool
Note: "#" indicates a non-illustrated part, Specifications are subject to change without notice, See the back
cover of this manual for information about ordering replacement parts,
