Hace aHparts of the exercise cycle in a cleared area and remove the packing materiaUs, Do not dispose of the
packing materials until assembly is completed.
Assembly requires your own adjustable wrench ©_ and phillips screwdriver d,,_ _.

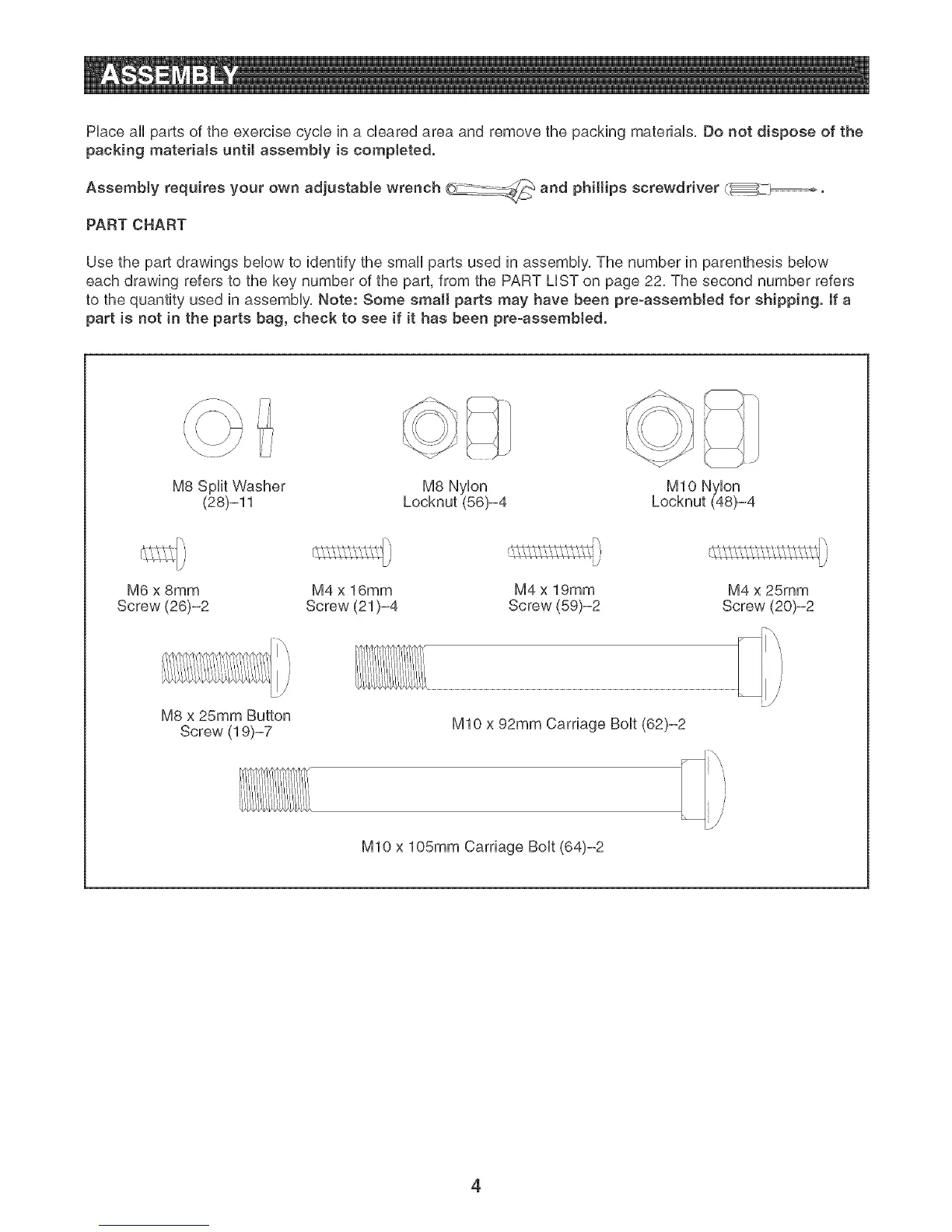

PART CHART
Use the part drawings beUowto identify the small parts used in assemMy, The number in parenthesis beUow
each drawing refers to the key number of the part, from the PART LUSTon page 22, The second number refers
to the quantity used in assembly, Note: Some small parts may have been pre-assemb[ed for shipping. If a
part is not in the parts bag, check to see if it has been pre-assemMed.
\, LI
M8 Split Washer
(28)-11
M8 NyUon
Locknut (56)-4
M10 NyUon
Locknut (48)-4
M6 x 8mm
Screw (26)-2
M4 x 16mm
Screw (21)-4
M4 x 19mm
Screw (59)-2
M4 x 25mm
Screw (20)-2
M8 x 25mm Button
Screw (19)-7
MIO x 92mm Carriage BoUt(62)-2
MIO x 105mm Carriage BoUt(64)-2
