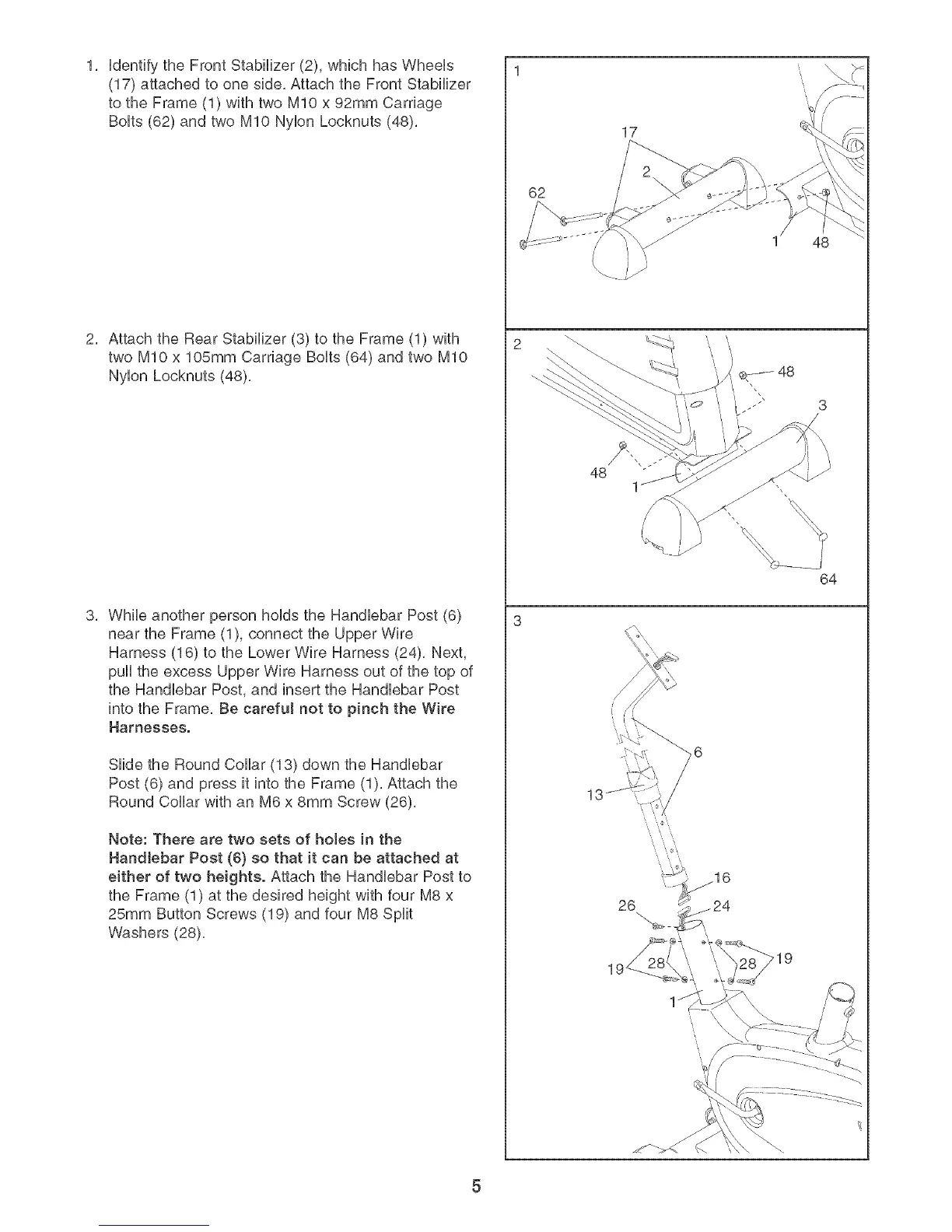

UdentifytheFrontStabilizer(2),whichhasWheeUs
(17)attachedtooneside,AttachtheFrontStabilizer
totheFrame(1)withtwoMIOx92mmCarriage
BoUts(62)andtwoMlONyUonLocknuts(48),
AttachtheRearStabilizer(3)totheFrame(1)with
twoMIOx lO5mmCarriageBoUts(64)andtwoMIO
NyUonLocknuts(48),
WhileanotherpersonholdstheHandlebarPost(6)
neartheFrame(1),connecttheUpperWire
Harness(16)totheLowerWireHarness(24),Next,
puntheexcessUpperWireHarnessoutofthetopof
theHandUebarPost,andinserttheHandUebarPost
intotheFrame,Becarefulnotto pinchthe Wire
Harnesses,
SlidetheRoundCollar(13)downtheHandlebar
Post(6)andpressit intotheFrame(1),Attachthe
RoundCollarwithanM6x8mmScrew(26),
Note:Therearetwo setsof holesin the
NandJebarPost(6}so thatit canbeattachedat
eitherof two heights.AttachtheHandUebarPostto
theFrame(1)at thedesiredheightwithfourM8x
25mmButtonScrews(19)andfourM8Split
Washers(28),
17
62
48
13
26
,-,..
48
64
