Reebok RT 245 - Page 6

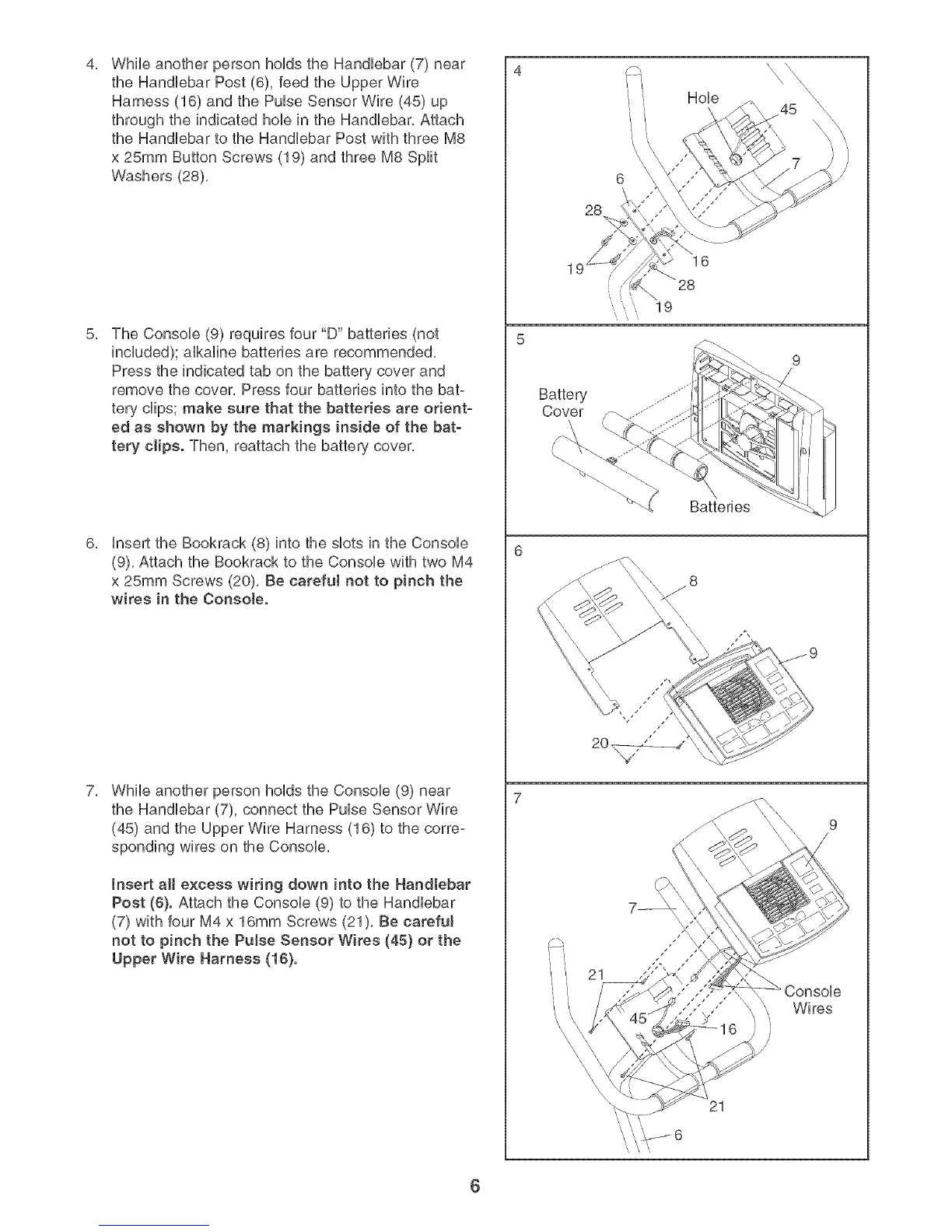

WhileanotherpersonhoUdstheHandbbar(7)near
theHandbbarPost(6),feedtheUpperWire
Harness(16)andthePuUseSensorWire(45)up
throughtheindicatedhobintheHandbbar,Attach
theHandbbarto theHandbbarPostwiththreeM8
x25mmButtonScrews(19)andthreeM8Split
Washers(28),
TheConsob(9)requiresfour"D"batteries(not
included);aUkaHnebatteriesarerecommended,
Presstheindicatedtabonthebatterycoverand
removethecover,Pressfourbatteriesintothebat-
teryclips;makesurethatthebatteriesareorient-
ed as shown by the markings inside of the bat-
tery clips. Then, reattach the batte n, cover,
insert the Bookrack (8) into the slots in the Console
(9), Attach the Bookrack to the Console with two M4
x 25mm Screws (20), Be careful not to pinch the
wires in the Console.
While another person holds the Console (9) near
the Handlebar (7), connect the Pulse Sensor Wire
(45) and the Upper Wire Harness (16) to the correo
sponding wires on the Console,
Insert all excess wiring down into the Handlebar
Post (6}. Attach the Console (9) to the Handlebar
(7) with four M4 x 16mm Screws (21), Be careful
not to pinch the Pulse Sensor Wires (45} or the
Upper Wire Harness (!6}.
6
28
\\
\\\
_5
16
Battery
Cover
Batteries
21
Wires
21
\
\ \ ,
