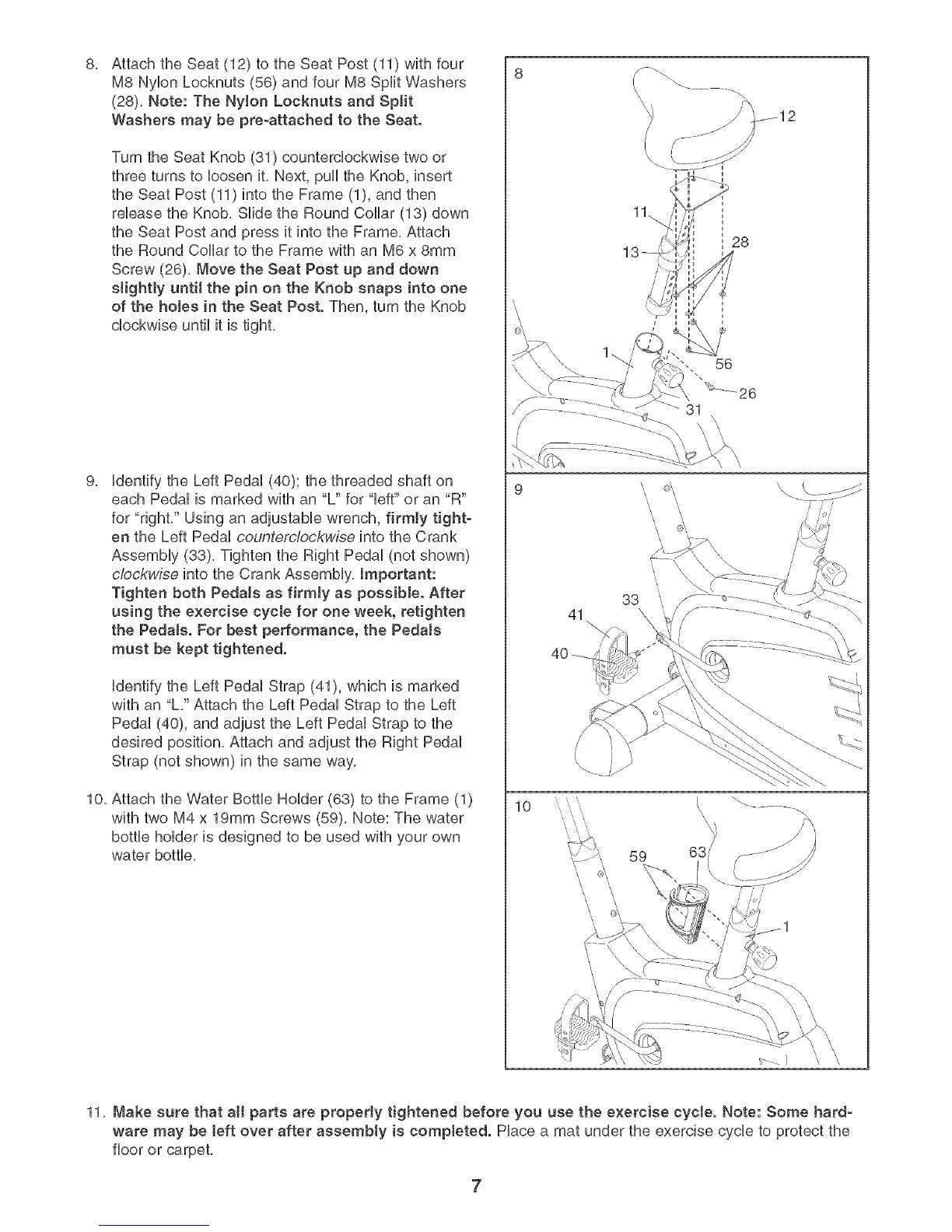

Attach the Seat (12) to the Seat Post (11) with four
M8 Nylon Locknuts (56) and four M8 Split Washers
(28), Note: The NyJon Locknuts and Split
Washers may be pre-attached to the Seat.
Turn the Seat Knob (31) counterclockwise two or
three turns to loosen it, Next, pull the Knob, insert
the Seat Post (11) into the Frame (1), and then
release the Knob, Slide the Round Collar (13) down
the Seat Post and press it into the Frame, Attach
the Round Collar to the Frame with an M6 x 8mm
Screw (26), Move the Seat Post up and down
slightly until the pin on the Knob snaps into one
of the holes in the Seat Post. Then, turn the Knob
clockwise until it is tight,
Identify the Left Pedal (40); the threaded shaft on
each Pedal is marked with an "L" for 'left" or an "R"
for "right," Using an adjustaMe wrench, firmly tight-
en the Left Pedal counterclockwise into the Crank
AssemMy (33), Tighten the Right Pedal (not shown)
clockwise into the Crank AssemNy, Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals
must be kept tightened.
Identify the Left Pedal Strap (41), which is marked
with an "L," Attach the Left Pedal Strap to the Left
Pedal (40), and adjust the Left Pedal Strap to the
desired position, Attach and adjust the Right Pedal
Strap (not shown) in the same way,
10, Attach the Water Bottle Holder (63) to the Frame (1)
with two M4 x 19mm Screws (59), Note: The water
bottle holder is designed to be used with your own
water bottle,
10
41
/
\
11,
28
/
56
31
\
\\
\
@\
\
\\
33
59 63
/ /
_P-- I \ \
11, Make sure that aH parts are properly tightened before you use the exercise cycJe. Note: Some hard-
ware may be left over after assembty is completed. Place a mat under the exercise cycle to protect the
floor or carpet,
7
