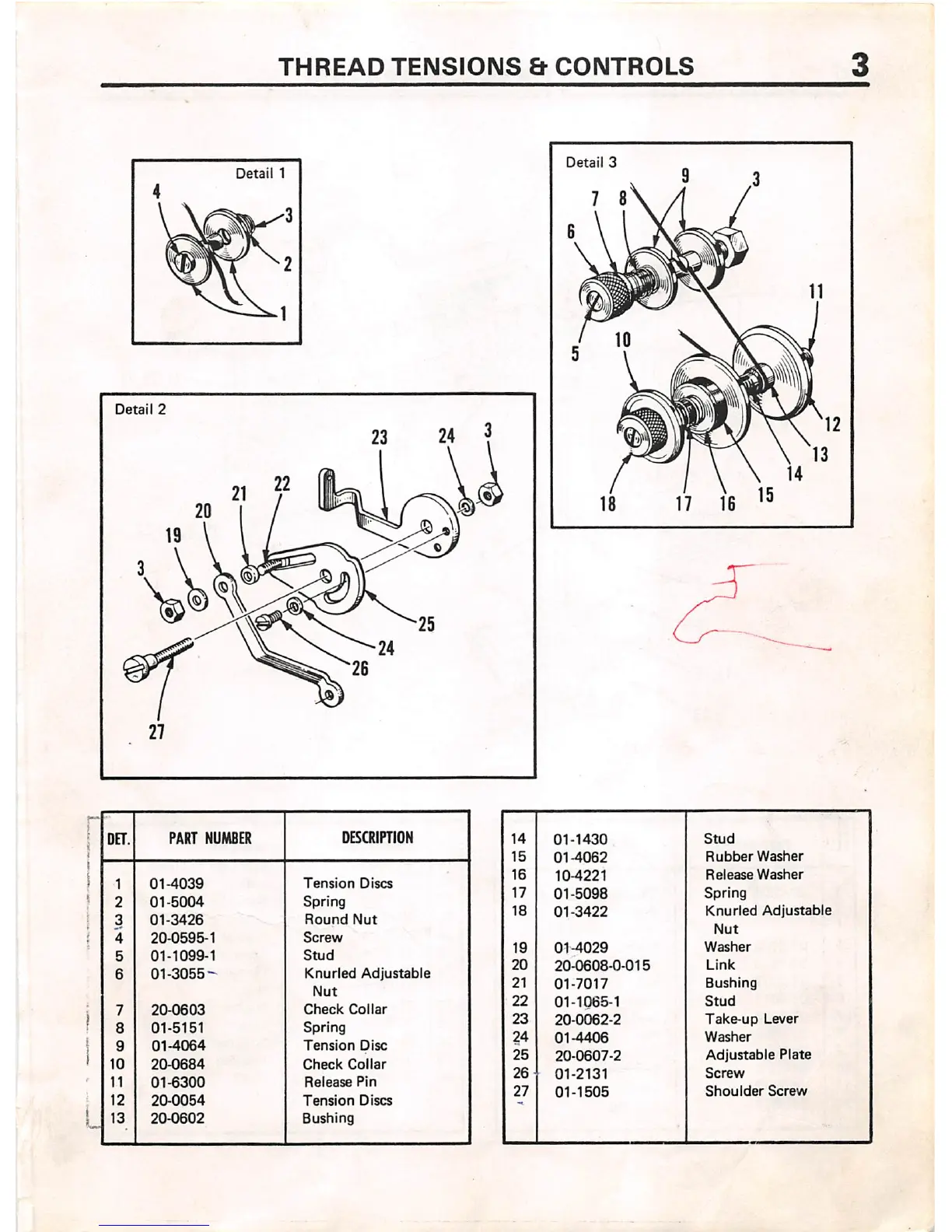

THREAD

TENSIONS

&

CONTROLS

Detail

1

4

'

CO

jN

Y^2

Detail

2

27

DET.

PART

NUMBER

DESCRIPTION

1

01-4039

Tension

Discs

2

01-5004

Spring

3

01-3426

Round

Nut

4

20-0595-1

Screw

5

01-1099-1

Stud

6

01-3055-

Knurled

Adjustable

Nut

7

20-0603

Check

Collar

8

01-5151

Spring

9

01-4064

Tension

Disc

10

20-0684

Check

Collar

11

01-6300

Release

Pin

12

20-0054

Tension

Discs

13

20-0602

Bushing

Detail

3

14

01-1430

Stud

15

01-4062

Rubber

Washer

16

10-4221

Release

Washer

17

01-5098

Spring

18

01-3422

Knurled

Adjustable

Nut

19

01-4029

Washer

20

20-0608-0-015

Link

21

01-7017

Bushing

22

01-1065-1

Stud

23

20-0062-2

Take-up

Lever

24

01-4406

Washer

25

20-0607-2

Adjustable

Plate

26

01-2131

Screw

27

01-1505

Shoulder

Screw
