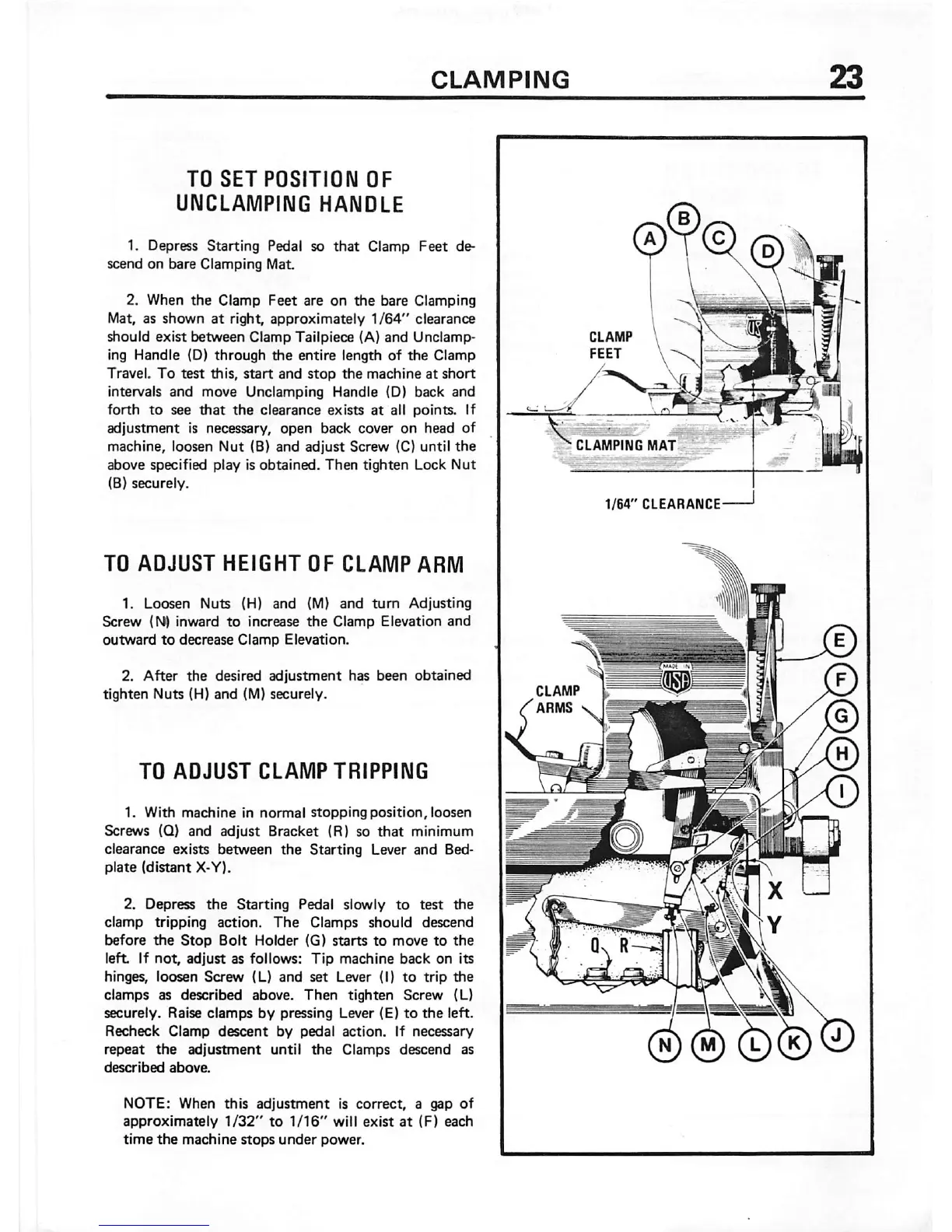

CLAMPING

CLAMP

FEET

TO

SET

POSITION

OF

UNCLAMPING

HANOLE

1. Depress

Starting

Pedal so

that

Clamp

Feet

de

scend

on

bare

Clamping

Mat.

2. When

the

Clamp

Feet

are on

the

bare Clamping

Mat, as

shown

at

right,

approximately

1/64"

clearance

should

exist

between

Clamp

Tailpiece

(A)

and

Unclamp-

ing Handle (D)

through

die

entire

length

of

the

Clamp

Travel.

To

test

this,

start

and

stop

the

machine

at

short

intervals

and

move

Unclamping

Handle

(D)

back

and

forth

to

see

that

the

clearance

exists

at

all

points.

If

adjustment

is necessary,

open

back

cover on head

of

machine,

loosen

Nut

(B)

and

adjust

Screw

(C)

until

the

above

specified

play

is

obtained.

Then

tighten

Lock

Nut

(B) securely.

CLAMPING

MAT

TO

AOJUST

HEIGHT

OF CLAMP ARM

1.

Loosen

Nuts

(H)

and

(M)

and

turn

Adjusting

Screw

(Ni)

inward

to

increase

the

Clamp

Elevation

and

outward

to

decrease

Clamp

Elevation.

2.

After

the

desired

adjustment

has

been

obtained

tighten

Nuts

(H)

and

(M) securely.

TO

AOJUST

CLAMP

TRIPPING

1. With

machine

in

normal

stopping

position,

loosen

Screws (Q) and adjust Bracket (R) so

that

minimum

clearance exists

between

the

Starting

Lever

and

Bed

plate

(distant

X-Y).

2. Depress

the

Starting

Pedal slowly

to

test

the

clamp

tripping

action.

The

Clamps

should

descend

before

the

Stop

Bolt

Holder

(G)

starts

to

move

to

the

left. If

not,

adjust

as follows:

Tip

machine

back

on

its

hinges, loosen

Screw

(L)

and

set

Lever (I)

to

trip

the

clamps as described above.

Then

tighten

Screw

(L)

securely.

Raise

clamps

by

pressing Lever (E)

to

the

left.

Recheck

Clamp

descent

by

pedal

action.

If

necessary

repeat

the

adjustment

until

the

Clamps

descend

as

described

above.

NOTE: When

this

adjustment

is

correct,

a gap

of

approximately

1/32"

to

1/16"

will

exist

at

(F)

each

time

the

machine

stops

under

power.

CLAMP

ARMS

<

1/64"

CLEARANCE-

On

R
