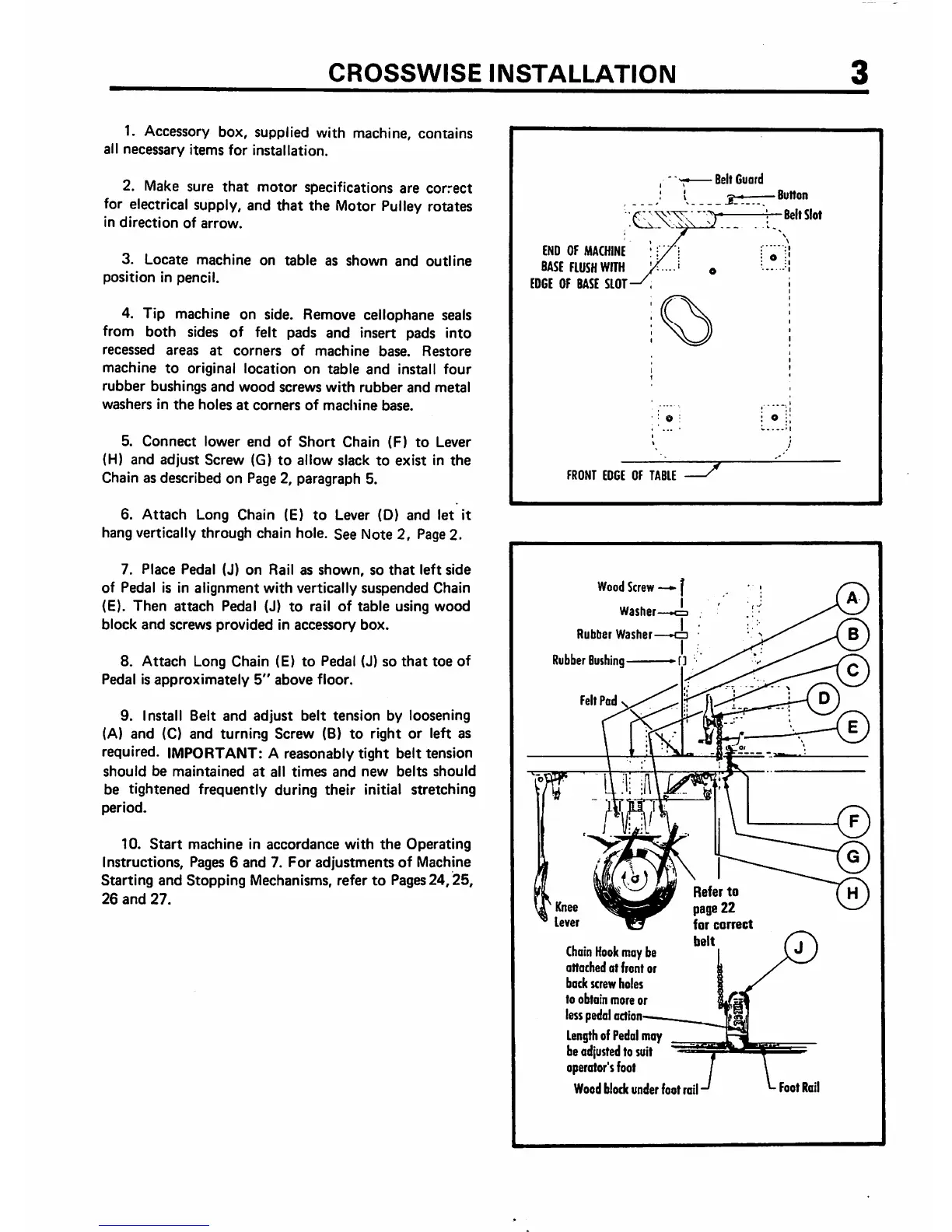

CROSSWISE
INSTALLATIOIM
1. Accessory box, supplied with machine, contains
all
necessary
items
for
installation.
2. Make sure
that
motor
specifications are correct
for electrical supply, and that the Motor Pulley rotates
in
direction
of
arrow.
3.
Locate
machine
on
table
as
shown
and
outline
position
in pencil.
4. Tip machine on side. Remove cellophane seals
from both sides of felt pads and insert pads into
recessed
areas
at
corners
of
machine
base.
Restore
machine
to
original
location
on
table
and
install
four
rubber
bushings
and
wood
screws
with
rubber
and
metal
washers
in
the
holes
at
corners
of
machine
base.
5.
Connect
lower
end
of
Short
Chain
(F)
to
Lever
(H)
and
adjust
Screw
(G)
to
allow
slack
to
exist
in
the
Chain as described on Page 2, paragraph 5.
6.
Attach
Long Chain (E)
to
Lever (D)
and
let it
hang vertically through chain hole. See Note 2, Page 2.
7.
Place
Pedal (J)
on
Rail as
shown,
so
that
left
side
of Pedal is in
alignment
with
vertically
suspended
Chain
(E).
Then
attach
Pedal (J)
to
rail of table using wood
block
and
screws
provided
in
accessory
box.
8.
Attach
Long Chain (E)
to
Pedal (J) so
that
toe
of
Pedal is
approximately
5"
above
floor.
9. Install
Belt
and
adjust
belt
tension
by
loosening
(A)
and
(C)
and
turning
Screw
(6)
to
right
or
left
as
required. IMPORTANT: A reasonably tight belt tension
should
be
maintained
at
all
times
and
new
belts
should
be tightened frequently during their initial stretching
period.
10.
Start
machine
in
accordance
with
the
Operating
Instructions,
Pages 6
and
7.
For
adjustments
of
Machine
Starting
and
Stopping
Mechanisms, refer
to
Pages
24,25,
26
and
27.
END
OF
MACHINE
BASE
FLUSH
WITH
EDGE
OF
BASE
SLOT
FRONT
EDGE
OF
TABLE
Wood
Screw
—•
[
Washer
'
Rubber
Washer
Rubber
Bushing
»•
FeltPod
Choin
Hook
may
be
attached at front or
bockscrewholes
to obtain more or
less
pedal
action
Length
of
Pedal
may
be
adjusted
to
suit
operator's
foot
Woodblockunder footrail
BeltGuard
Refer
page22
for
correct
belt
Button
-Belt
Slot
Foot Rail
