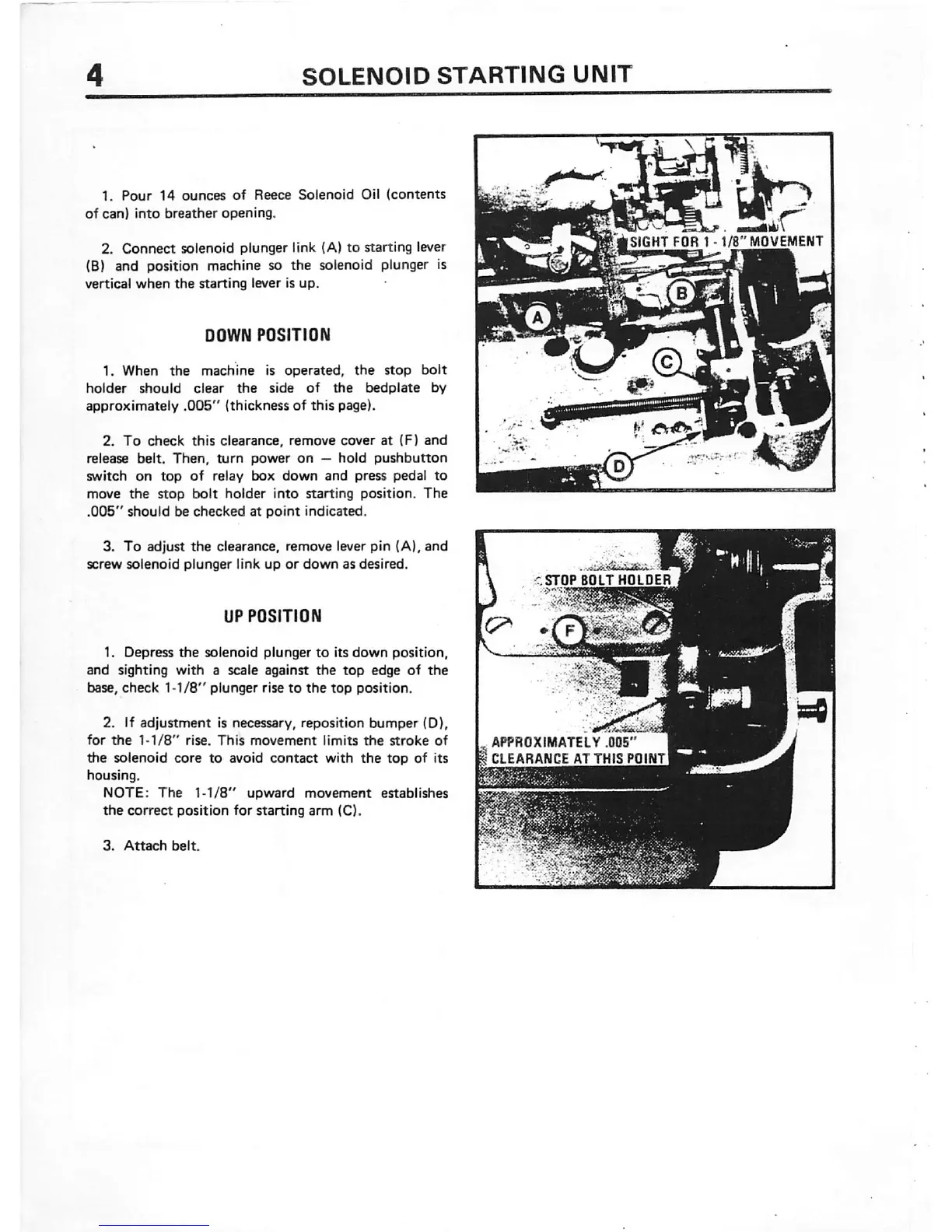

SOLENOID

STARTING

UNIT

1.

Pour

14

ounces

of

Reece

Solenoid

Oil

(contents

of

can)

Into

breather

opening.

2.

Connect

solenoid

plunger

link (A)

to

starting lever

(B) and position machine so the solenoid plunger is

vertical

when

the

starting

lever

is

up.

DOWN

POSITION

1.

When

the

machine

is

operated,

the

stop

bolt

holder

should

clear

the

side

of

the

bedplate

by

approximately

.005"

(thickness

of

this

page).

2.

To

check

this

clearance,

remove

cover

at

(F)

and

release

belt.

Then,

turn

power

on

—

hold

pushbutton

switch

on

top

of

relay

box

down

and

press

pedal

to

move

the

stop

bolt

holder

into

starting

position.

The

.005"

should

be

checked

at

point

indicated.

3.

To

adjust

the

clearance,

remove

lever

pin

(A),

and

screw

solenoid

plunger

link

up

or

down

as

desired.

UP

POSITION

1.

Depress

the

solenoid

plunger

to

its

down

position,

and

sighting

with

a

scale

against

the

top

edge

of

the

base,

check

1-1/8"

plunger

rise

to

the

top

position.

2. If

adjustment

is necessary, reposition

bumper

(D),

for

the

1-1/8"

rise.

This

movement

limits

the

stroke

of

the

solenoid

core

to

avoid

contact

with

the

top

of

its

housing.

NOTE:

The

1-1/8"

upward

movement

establishes

the

correct

position

for

starting

arm

(C).

3.

Attach

belt.

STOP

BOLT

HOLDER

APPROXIMATELY

.005"

CLEARANCE

AT

THIS

POINT
