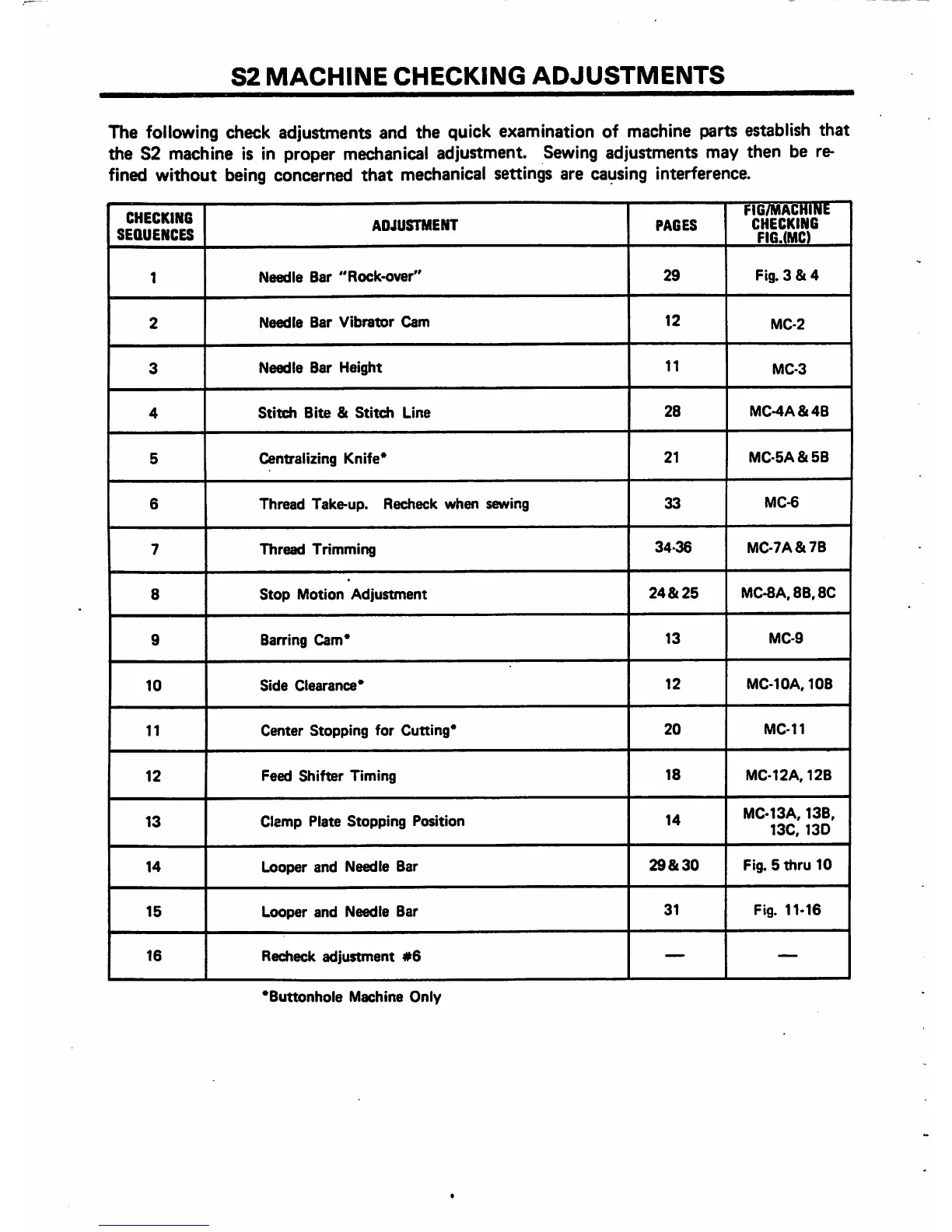

S2 MACHINE CHECKING ADJUSTMENTS
The following check adjustments and the quick examination of machine parts establish that
the S2 machine is in proper mechanical adjustment. Sewing adjustments may then be re
fined without being concerned
that mechanical settings are causing interference.
CHECKING
SEQUENCES
ADJUSTMENT
PAGES
FIG/MACHINE
CHECKING
FiG.IMC)
1
Needle Bar "Rock-over"
29
Fig. 3 & 4
2
Needle Bar Vibrator Cam
12
MC-2
3
Needle Bar Height
11
MC-3
4
Stitch Bite & Stitch Line
28
MC-4A&4B
5
Centralizing Knife*
21
MC-5A&5B
6
Thread Take-up. Recheck when sewing
33
MC-6
7
Thread Trimming
34*36
MC-7A&7B
8 Stop Motion Adjustment
24&25
MC-8A,8B,8C
9
Barring Cam*
13
MC-9
10
Side Clearance*
12 MC-10A. 108
11
Center Stopping for Cutting*
20 MC-11
12
Feed Shifter Timing
18
MC-12AJ2B
13
Clamp Plate Stopping Position
14
MC-13A, 138,
13C, 13D
14
Looper and Needle Bar
29&30
Fig. 5 thru 10
15 Looper and Needle Bar
31
Fig. 11-16
16
Recheck adjustment #6
— —
^Buttonhole Machine Only
