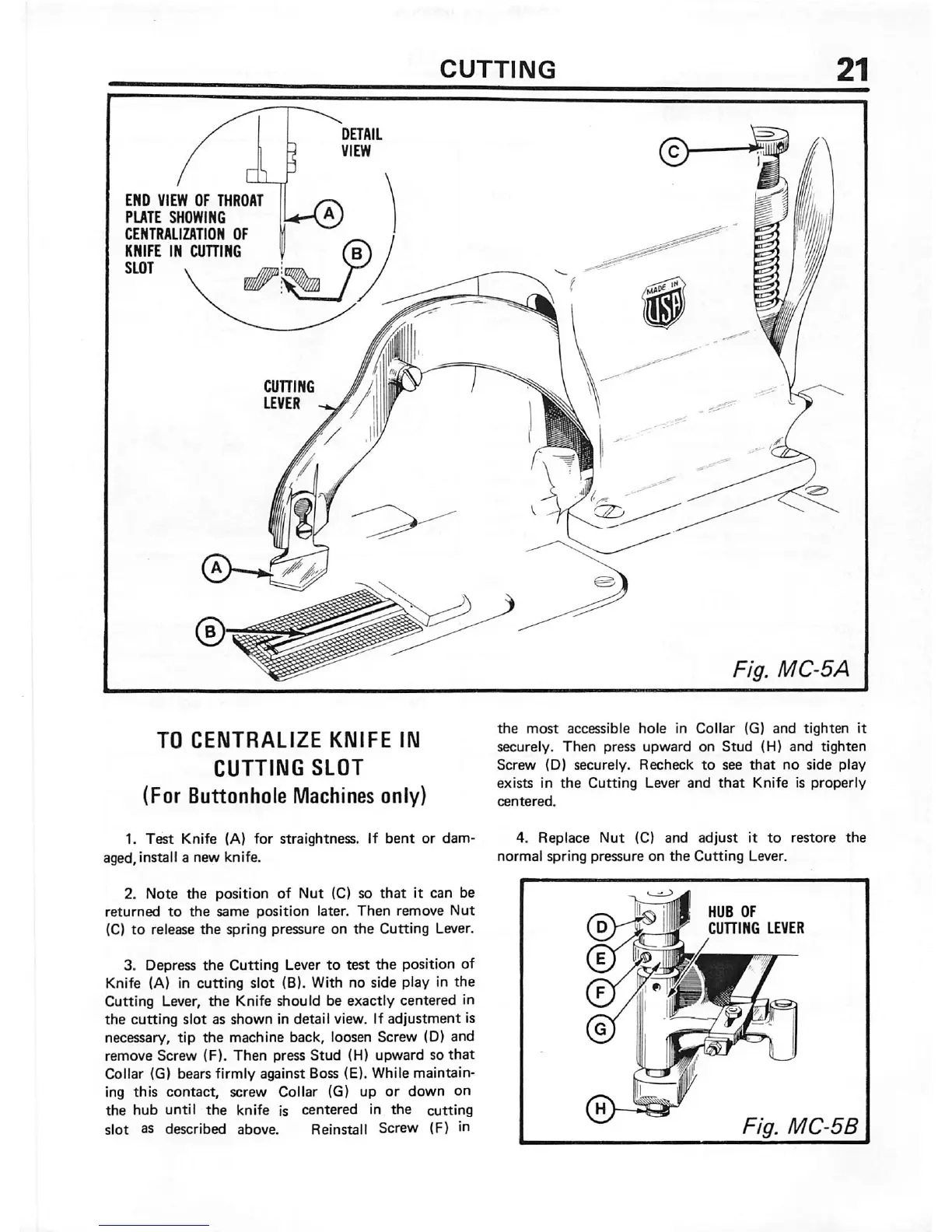

CUTTING
TO
CENTRALIZE
KNIFE
IN
CUTTING
SLOT
(For Buttonhoje Machines only)
1.
Test
Knife (A)
for
straightness.
If
bent
or
dam
aged, install a new knife.
2.
Note
the
position
of
Nut
(C) so
that
it can be
returned
to
the
same
position
later.
Then
remove
Nut
(C)
to
release
the
spring pressure on
the
Cutting
Lever.
3. Depress
the
Cutting Lever
to
test
the
position of
Knife (A) In cutting slot (B). With no side play in
the
Cutting Lever,
the
Knife should be exactly centered in
the
cutting slot as shown in detail view. If adjustment is
necessary, tip the machine back, loosen Screw (D) and
remove
Screw
(F).
Then
press
Stud
(H)
upward
so
that
Collar (G) bears firmly against Boss (E). While
maintain
ing this contact, screw Collar (G) up
or
down on
the
hub
until
the
knife
is
centered
in
the
cutting
slot
as
described
above.
Reinstall
Screw
(F) in
m
the
most
accessible
hole
in
Collar
(G)
and
tighten
it
securely.
Then
press upward on
Stud
(H)
and
tighten
Screw
(D)
securely.
Recheck
to
see
that
no
side
play
exists
in
the
Cutting
Lever
and
that
Knife
is
properly
centered.
4.
Replace
Nut
(C)
and
adjust
it
to
restore
the
normal
spring
pressure
on
the
Cutting
Lever.
HUB OF
CUniNG
LEVER
