Reece Series S2 - Page 12

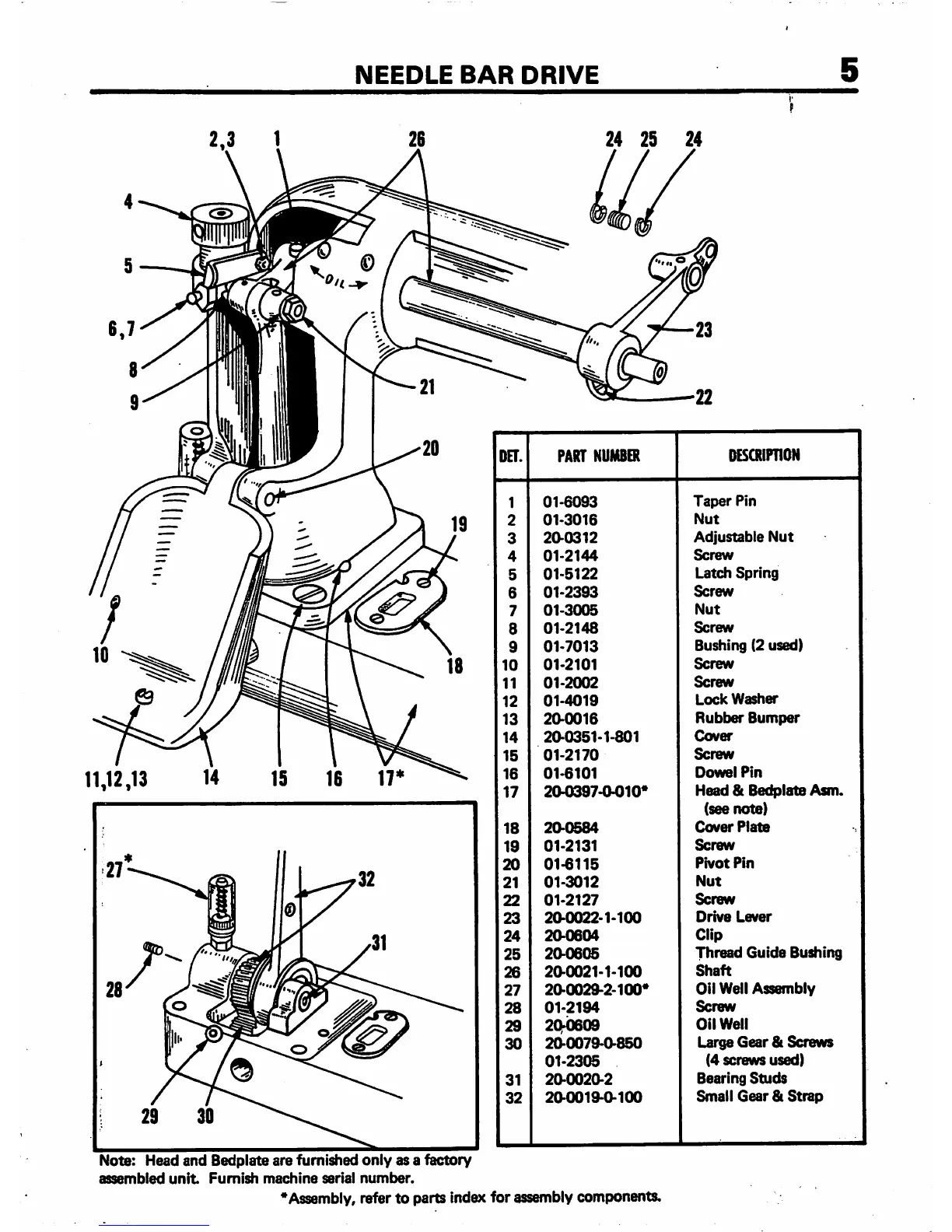

NEEDLE BAR DRIVE
2,3 1
©
/
11,12,13
15 16 17*
r
29 30
Note: Head and Bedplate are furnished only as a factory
assembled unit Furnish machine serial number.
*Assembly, refer to parts index for assembly components.
24 25
DET. PART NUfRBER
DESCRIPTION
1
01-6093
Taper Pin
2
01-3016
Nut
3
20-0312
Adjustable Nut
4
01-2144
Screw
5
01-5122
Latch Spring
6
01-2393
Screw
7
01-3005
Nut
8
01-2148
Screw
9
01-7013
Bushing (2 used)
10
01-2101
Screw
11
01-2002
Screw
12
01-4019
Lock Washer
13
20-0016
Rubber Bumper
14
20-0351-1-801
Cover
15
01-2170
Screw
16
01-6101
Dowel Pin
17
204)397-04)10*
Head & Bedplate Asm.
(see note)
18
20-0584
Cover Plate
19
01-2131
Screw
20
01-6115
Pivot Pin
21
01-3012
Nut
22 01-2127
Screw
23
20-0022-1-100
Drive Lever
24
20-0604
Clip
25
20-0605
Thread Guide Bushing
26
20-0021-1-100
Shaft
27
20-X29-2-100*
Oil Well Assembly
28
01-2194
Screw
29
20^0609
Oil Well
30
20-0079-0-850
Large Gear & Screws
01-2305
(4 screws used)
31
20-0020-2
Bearing Studs
32
20-0019-0-100
Small Gear & Strap
