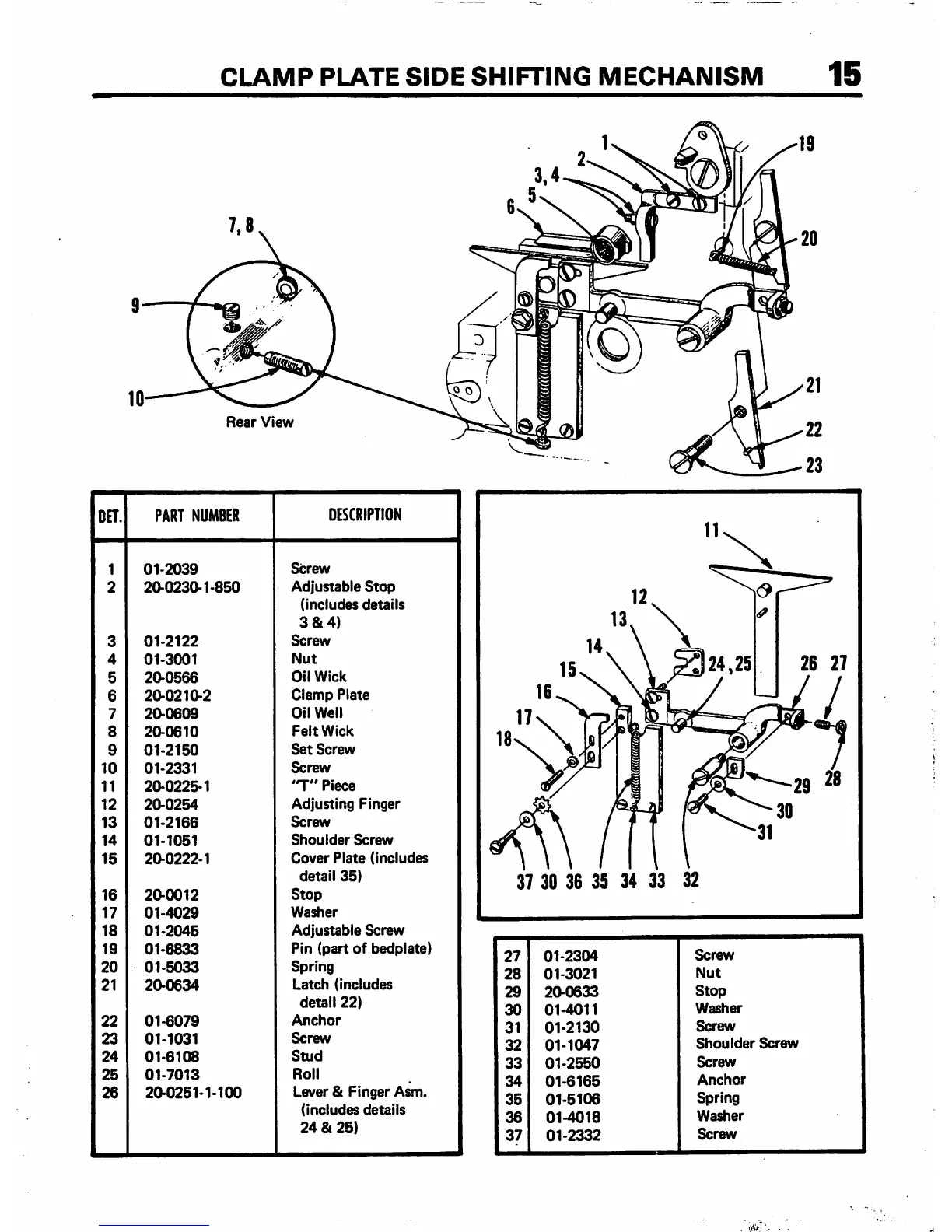

CLAMP

PLATE

SIDE

SHIFTING

MECHANISM

15

Rear

View

DET.

PART

NUMBER

DESCRIPTION

1

01-2039

Screw

2

20-0230-1-850

Adjustable

Stop

(includes

details

3&4)

3

01-2122

Screw

4

01-3001

Nut

5

20-0566

Oil

Wick

6

20-0210-2

Clamp

Plate

7

20-0609

Oil

Well

8

20-0610

Felt

Wick

9

01-2150

Set

Screw

10

01-2331

Screw

11

20-0225-1

"T"

Piece

12

20-0254

Adjusting

Finger

13

01-2166

Screw

14

01-1051

Shoulder

Screw

15

20-0222-1

Cover

Plate

(includes

detail

35)

16

20-0012

Stop

17

01-4029

Washer

18

01-2045

Adjustable

Screw

19

01-6833

Pin

(part

of

bedplate)

20

01-5033

Spring

21

20-0634

Latch

(includes

detail

22)

22

01-6079

Anchor

23

01-1031

Screw

24

01-6108

Stud

25

01-7013

Roll

26

2a0251-1-100

Lever &

Finger

Asm.

(includes

details

24

&

25)

/

37 30 36 35 34

27

01-2304

Screw

28

01-3021

Nut

29

20-0633

Stop

30

01-4011

Washer

31

01-2130

Screw

32

01-1047

Shoulder

Screw

33

01-2550

Screw

34

01-6165

Anchor

35

01-5106

Spring

36

01-4018

Washer

37

01-2332

Screw
