Reece Series S2 - Page 24

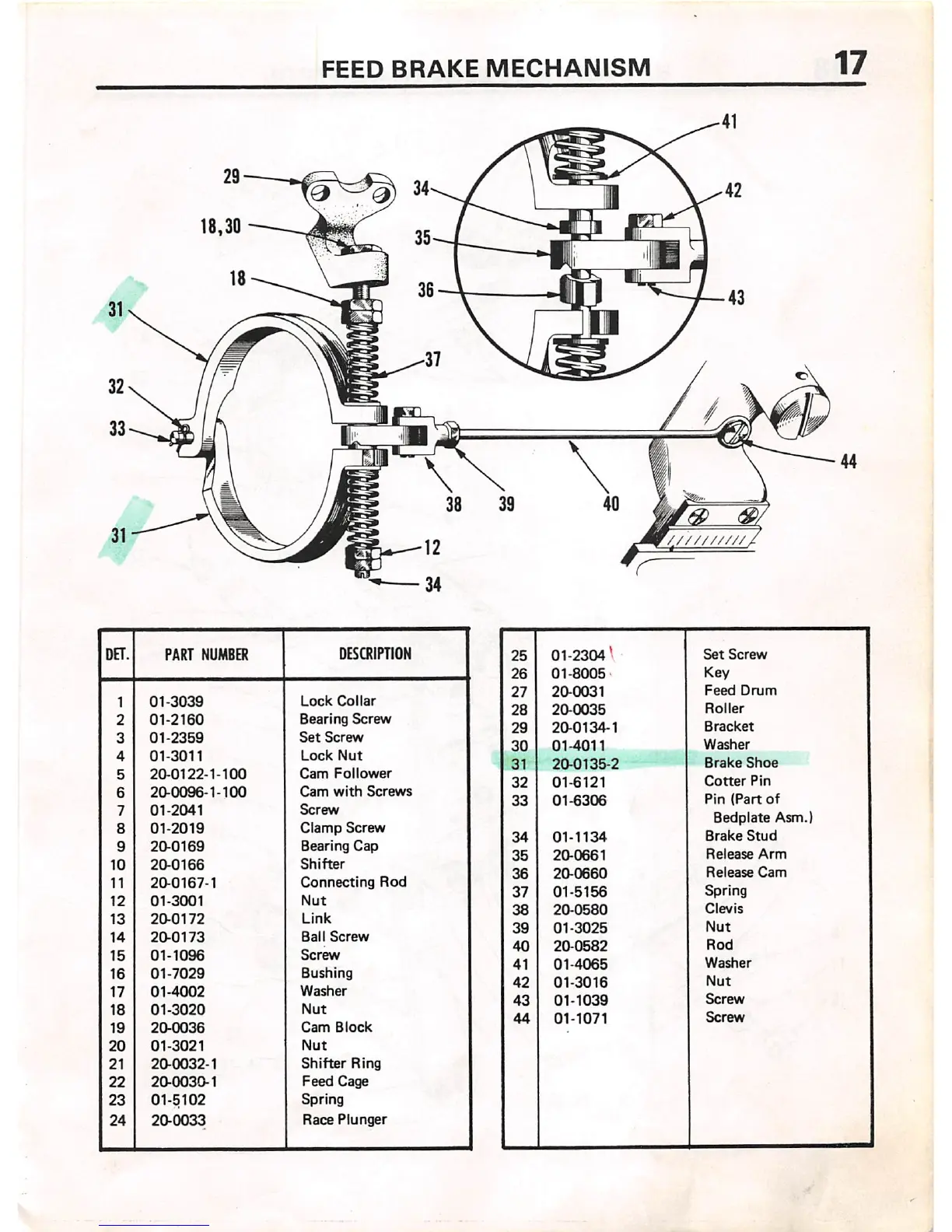

FEED BRAKE MECHANISM
17
DET. PART NUMBER
DESCRIPTION
1
01-3039
Lock Collar
2 01-2160
Bearing Screw
3
01-2359
Set Screw
4 01-3011
Lock Nut
5
20-0122-1-100
Cam Follower
6
20-0096-1-100
Cam with Screws
7
01-2041
Screw
8 01-2019
Clamp Screw
9 20-0169
Bearing Cap
10 20-0166
Shifter
11 20-0167-1
Connecting Rod
12 01-3001
Nut
13
20-0172
Link
14 20-0173
Ball Screw
15
01-1096
Screw
16
01-7029
Bushing
17 01-4002
Washer
18
01-3020
Nut
19 20-0036
Cam Block
20
01-3021
Nut
21 20-0032-1
Shifter Ring
22 20-0030-1
Feed Cage
23
01-5102
Spring
24 20-0033
Race Plunger
« «
25
01-2304'
Set Screw
26
01-8005
Key
27 20-0031
Feed Drum
28 20-0035
Roller
29
20-0134-1
Bracket
30 01-4011
Washer
31
20-0135-2
Brake Shoe
32
01-6121
Cotter Pin
33
01-6306
Pin (Part of
Bedplate Asm.)
34 01-1134
Brake Stud
35 20-0661
Release Arm
36
20-0660
Release Cam
37 01-5156
Spring
38
20-0580
Clevis
39
01-3025
Nut
40
20-0582
Rod
41 01-4065
Washer
42
01-3016
Nut
43
01-1039
Screw
44 01-1071
Screw
