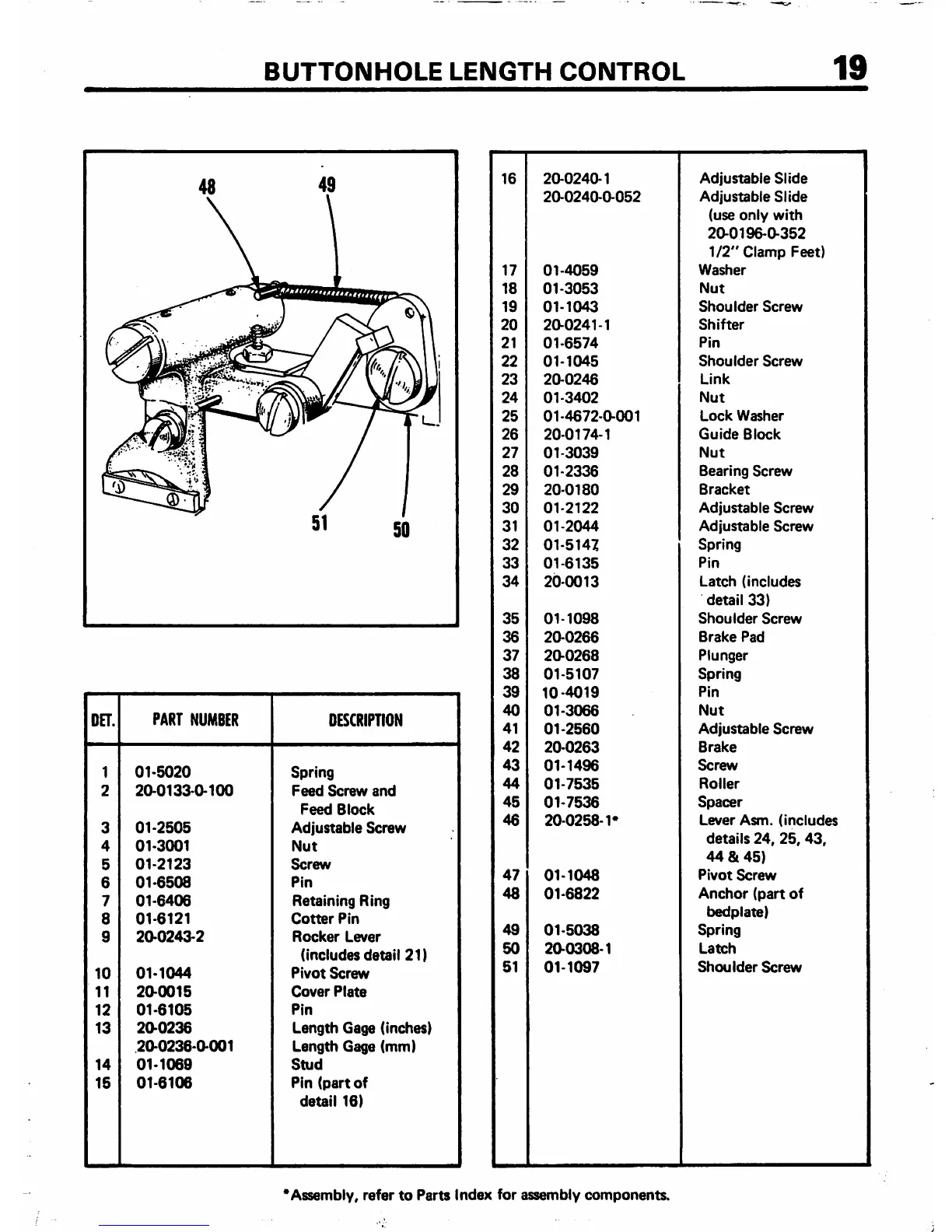

BUTTONHOLE LENGTH CONTROL
19
9)
DET.
PART NUMBER
DESCRIPTION
1 01-5020
Spring
2 20-01330-100 Feed Screw and
Feed Block
3
01-2505
Adjustable Screw
4 01-3001 Nut
5
01-2123
Screw
6
01-6508
Pin
7 01-6406
Retaining Ring
8
01-6121 Cotter Pin
9
2a0243-2
Rocker Lever
(includes detail 21)
10
01-1044
Pivot Screw
11 20-0015
Cover Plate
12
01-6105 Pin
13
20-0236
Length Gage (inches)
20-0236-0-001 Length Gage (mm)
14 01-1069
Stud
15
01-6106
Pin (part of
detail 16)
16 20-0240-1
Adjustable Slide
20-0240-0-052
Adjustable Slide
(use only with
20-0196-0-352
1/2" Clamp Feet)
17 01-4059
Washer
18 01-3053
Nut
19
01-1043
Shoulder Screw
20
20-0241-1
Shifter
21 01-6574
Pin
22 01-1045
Shoulder Screw
23
20-0246
Link
24
01-3402
Nut
25 01-4672-0-001
Lock Washer
26
20-0174-1 Guide Block
27 01-3039
Nut
28
01-2336
Bearing Screw
29 20-0180
Bracket
30 01-2122
Adjustable Screw
31
01-2044 Adjustable Screw
32
01-5147
Spring
33
01-6135
Pin
34
20-0013
Latch (includes
detail 33)
35
01-1098
Shoulder Screw
36
20-0266
Brake Pad
37 20-0268
Plunger
38 01-5107
Spring
39
10-4019
Pin
40
01-3066
Nut
41
01-2560
Adjustable Screw
42
20-0263
Brake
43
01-1496
Screw
44
01-7535
Roller
45
01-7536
Spacer
46 20-0258-1*
Lever Asm. (includes
details 24, 25,43,
44&45)
47
01-1048
Pivot Screw
48 01-6822
Anchor (part of
bedplate)
49
01-5038
Spring
50 20-0308-1
Latch
51
01-1097
Shoulder Screw
^Assembly, refer to Parts Index for assembly components.
