Reece Series S2 - Page 28

ei

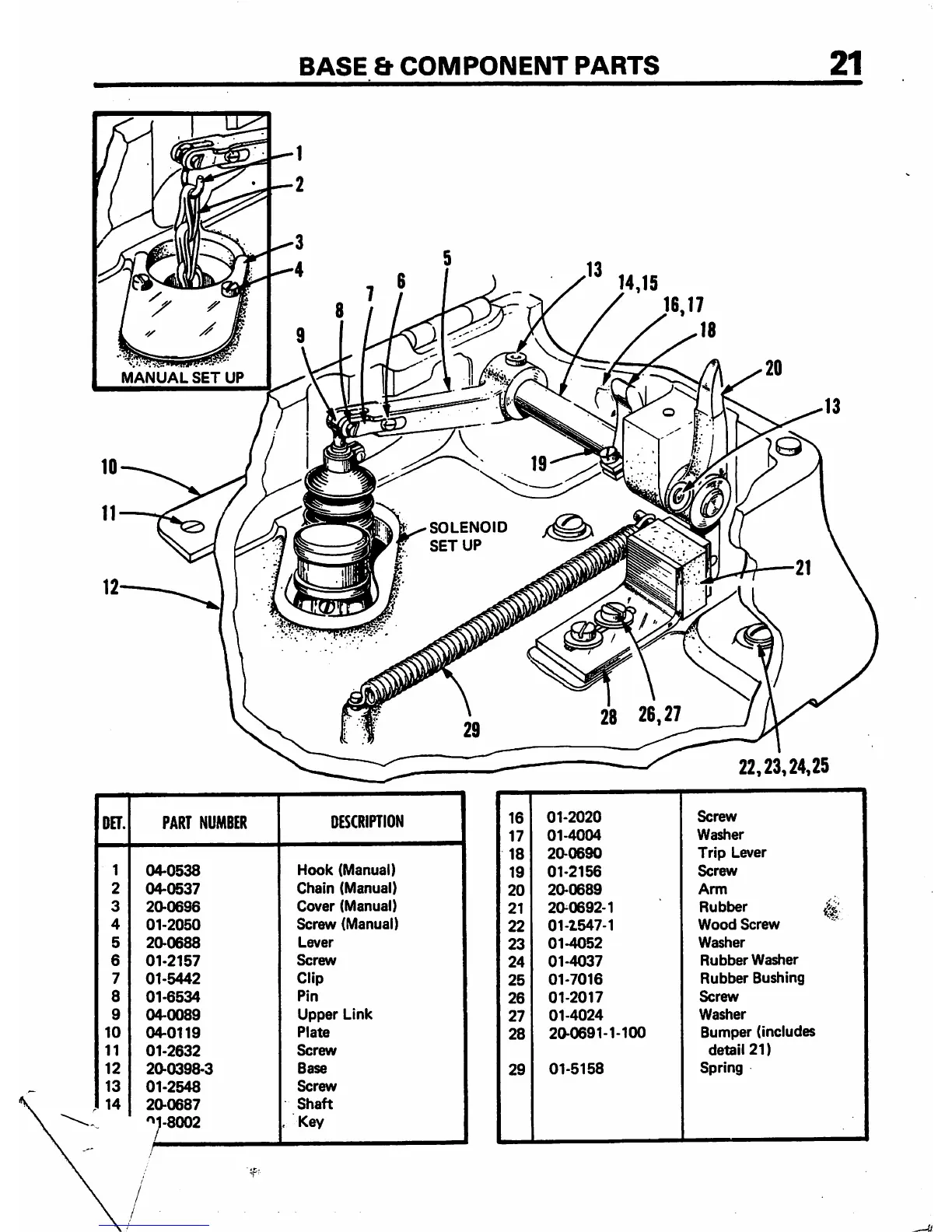

MANUAL SET UP
BASE & COMPONENT PARTS
SOLENOID
SETUP
16,17
21
22,23,24,25
DET.
PART NUMBER
DESCRIPTION
16
01-2020
Screw
17
01-4004
Washer
18
20-0690
Trip Lever
1
04-0538
Hook (Manual)
19
01-2156
Screw
2
04-0537
Chain (Manual)
20
20-0689
Arm
3
20-0696
Cover (Manual)
21
20^0692-1
Rubber
4
01-2050
Screw (Manual)
22
01-1547-1
Wood Screw
5
20-0688
Lever
23
01-4052
Washer
6
01-2157
Screw
24
01-4037
Rubber Washer
7
01-5442
Clip
25
01-7016
Rubber Bushing
8
01-6534
Pin
26
01-2017
Screw
9
04-0089
Upper Link
27
01-4024
Washer
10
04-0119
Plate
28
20-0691-1-100
Bumper (includes
11
01-2632
Screw
detail 21)
12
20-0398-3
Base
29
01-5158
Spring
13
01-2548
Screw
14
20-0687
01-8002
Shaft
. Key
