For Genuine Reece Replacement Parts — Call Toll Free 1-800-237-3323
For Reece Sales or Service — Call toll free 1-800-367-7332

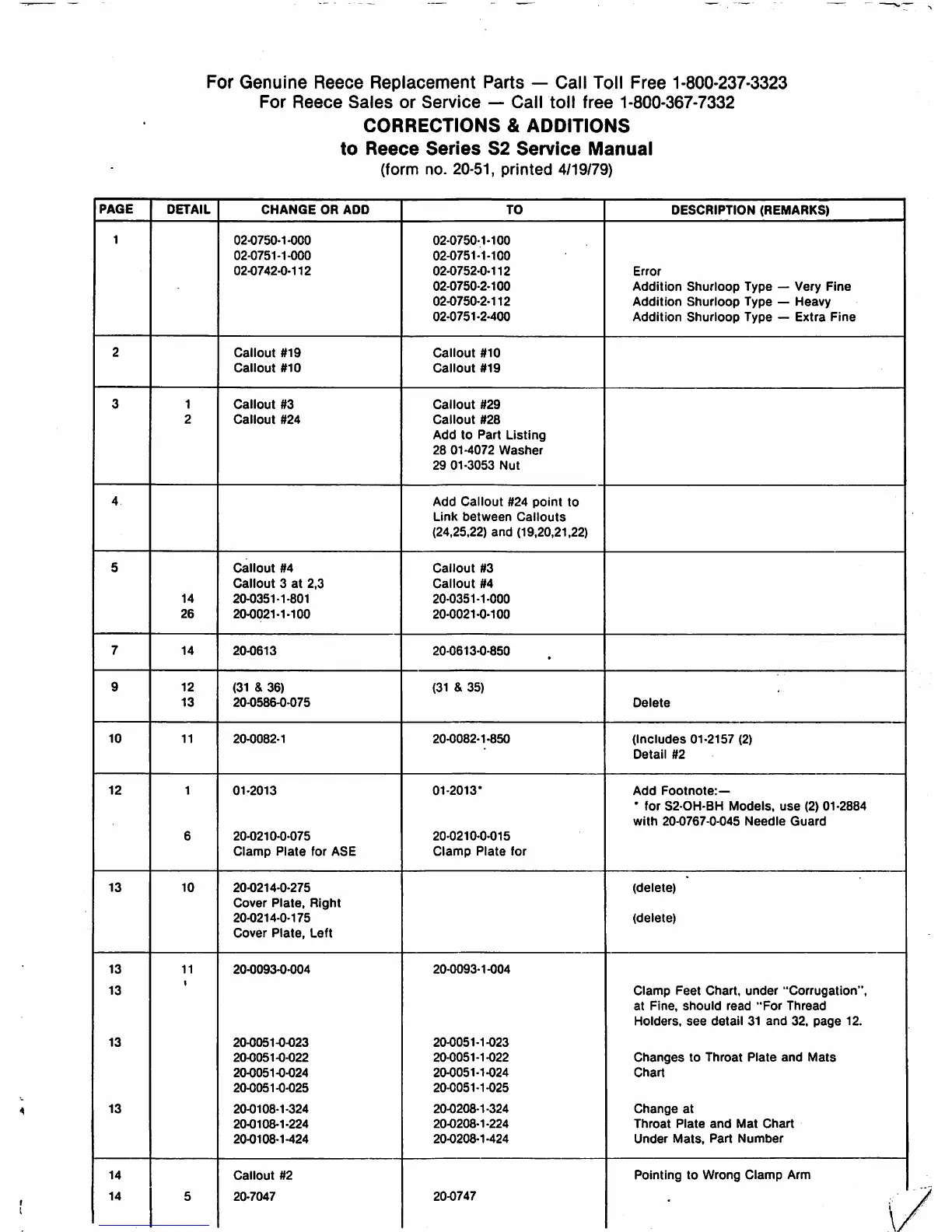

CORRECTIONS & ADDITIONS
to Reece Series S2 Service Manual
(form no. 20-51, printed 4/19/79)
PAGE
DETAIL
CHANGE OR ADD TO
DESCRIPTION (REMARKS)
1
02-0750-1-000
02-0751-1-000
02-0742-0-112
02-0750-1-100
02-0751-1-100
02-0752-0-112
02-0750-2-100
02-0750-2-112
02-0751-2-400
Error
Addition Shurloop Type — Very Fine
Addition Shurloop Type — Heavy
Addition Shurloop Type — Extra Fine
2
Callout #19
Callout #10
Callout #10
Callout #19
3 1
2
Callout #3
Callout #24
Callout #29
Callout #28
Add to Part Listing
28 01-4072 Washer
29 01-3053 Nut
4
Add Callout #24 point to
Link between Callouts
(24,25,22) and (19,20,21,22)
5
14
26
Callout #4
Callout 3 at 2,3
20-0351-1-801
20-0021-1-100
Callout #3
Callout #4
20-0351-1-000
20-0021-0-100
7
14 20-0813
20-0613-0-850
9 12
13
(31 & 36)
20-058643-075
(31 & 35)
Delete
10 11
20-0082-1 20-0082-1-850
(Includes 01-2157 (2)
Detail #2
12
1
6
01-2013
20-0210-0-075
Clamp Plate for ASE
01-2013*
20-0210-0-015
Clamp Plate for
Add Footnote:—
* for S2-0H-BH Models, use (2) 01-2884
with 20-0767-0-045 Needle Guard
13 10 20-0214-0-275
Cover Plate, RIgtit
20-0214-0-175
Cover Plate, Left
(delete)
(delete)
13
11 20-0093-0-004 20-0093-1-004
13
«
Clamp Feet Chart, under "Corrugation",
at Fine, should read "For Thread
Holders, see detail 31 and 32, page 12.
13 20-0051-0-023
20-0051-0-022
20-0051-0-024
20-0051-0-025
20-0051-1-023
20-0051-1-022
2043051-1-024
20-0051-1-025
Changes to Throat Plate and Mats
Chart
13
20-0108-1-324
20-0108-1-224
20-0108-1-424
20-0208-1-324
20-0208-1-224
20-0208-1-424
Change at
Throat Plate and Mat Chart
Under Mats, Part Number
14
Callout #2
Pointing to Wrong Clamp Arm
14
5 20-7047
2043747
