Reece Series S2 - Page 31

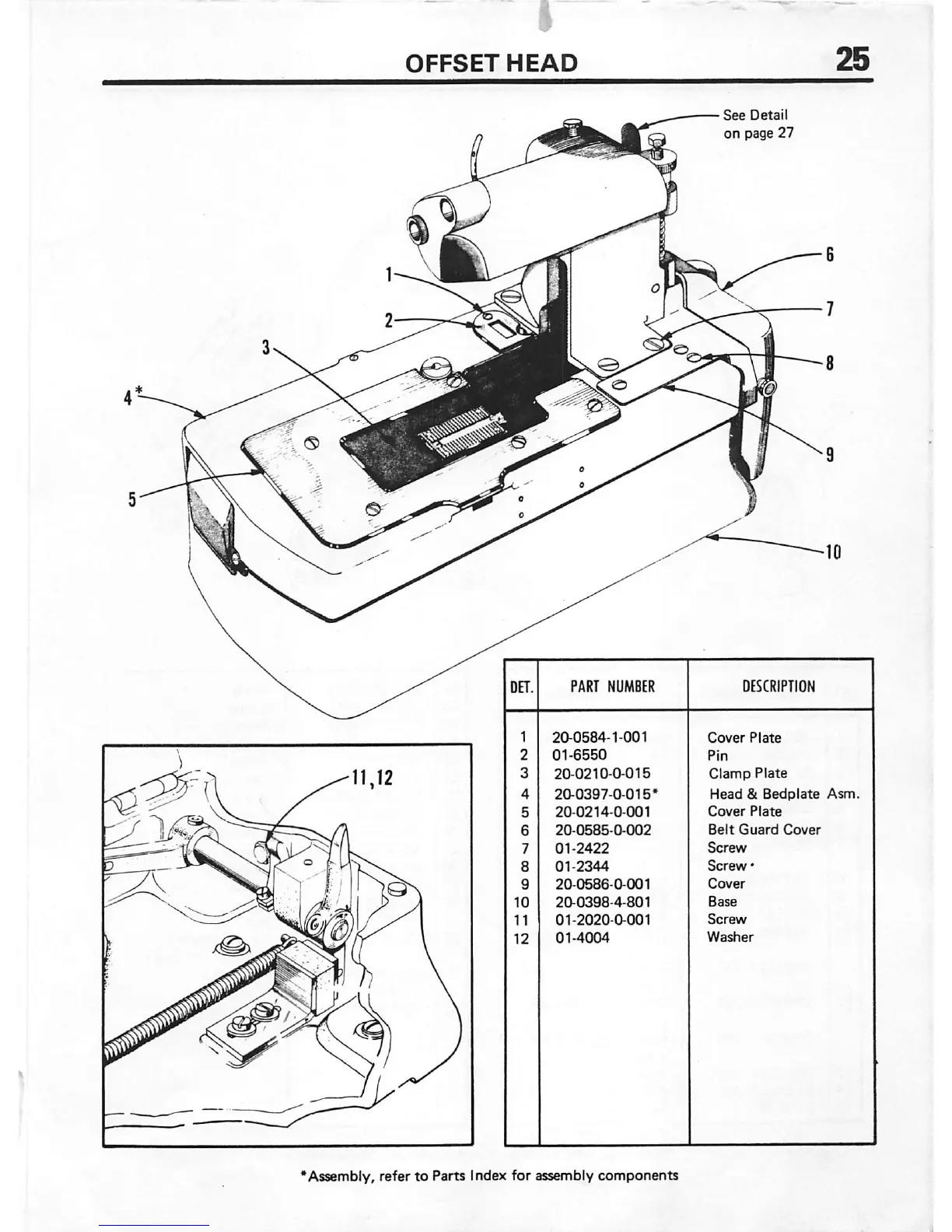

OFFSET HEAD
1
DET. PART NUMBER
20-0584-1-001
01-6550
20-0210-0-015
20-0397-0-015
20-0214-0-001
20-0585-0-002
01-2422
01-2344
20-0586-0-001
20-0398-4-801
01-2020-0-001
01-4004
•Assembly, refer to Parts Index for assembly components
See Detail
on page 2
DESCRPTON
Cover Plate
Pin
Clamp Plate
Head & Bedplate Asm
Cover Plate
Belt Guard Cover
Screw
Screw *
Cover
Base
Screw
Washer
