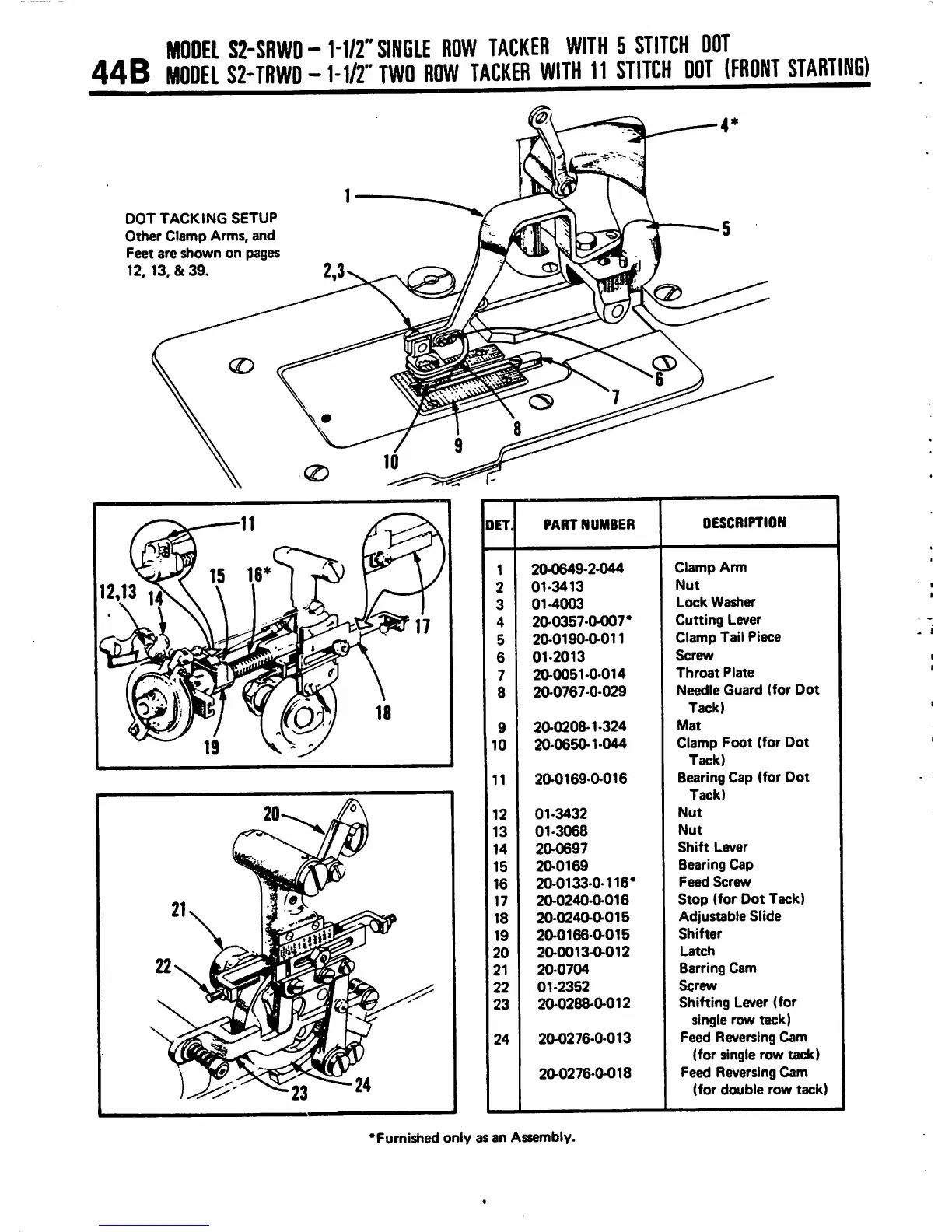

MODEL S2-SRWD - 1-1/2" SINGLE ROW TACKER WITH 5 STITCH DOT
44 B MODEL S2-TRW0 -1-1/2" TWO ROW TACKER WITH 11 STITCH DOT (FRONT STARTING)
DOT TACKING SETUP
Other Clamp Arms, and
Feet are shown on pages
12, 13, & 39.
CD
DET.
PART NUMBER
DESCRIPTION
1
20-0649-2-044
Clamp Arm
2
01-3413
Nut
3
01-4003
Lock Washer
4
20-0357-0-007'
Cutting Lever
5
20-0190-a011
Clamp Tail Piece
6
01-2013
Screw
7
20-0051-0-014
Throat Plate
8
2a0767-0-029
Needle Guard (for Dot
Tack)
9
20-0208-1-324
Mat
10
2a0650-1-044
Clamp Foot (for Dot
Tack)
11
20-0169-0-016
Bearing Cap (for Dot
Tack)
12
01-3432
Nut
13
01-3068
Nut
14
20-0697
Shift Lever
15
20-0169
Bearing Cap
16
20-0133-0-116'
Feed Screw
17
20-0240-a016
Stop (for Dot Tack)
18
20-0240-0-015
Adjustable Slide
19
20-0166-a015
Shifter
20
20-0013-0-012
Latch
21
20-0704
Barring Cam
22
01-2352
Screw
23
2a0288-0-012
Shifting Lever (for
single row tack)
24
20-0276-0-013
Feed Reversing Cam
(for single row tack)
20-0276-0-018
Feed Reversing Cam
(for double row tack)
'Furnished only as an Assembly.
