Reece Series S2 - Page 70

V
62

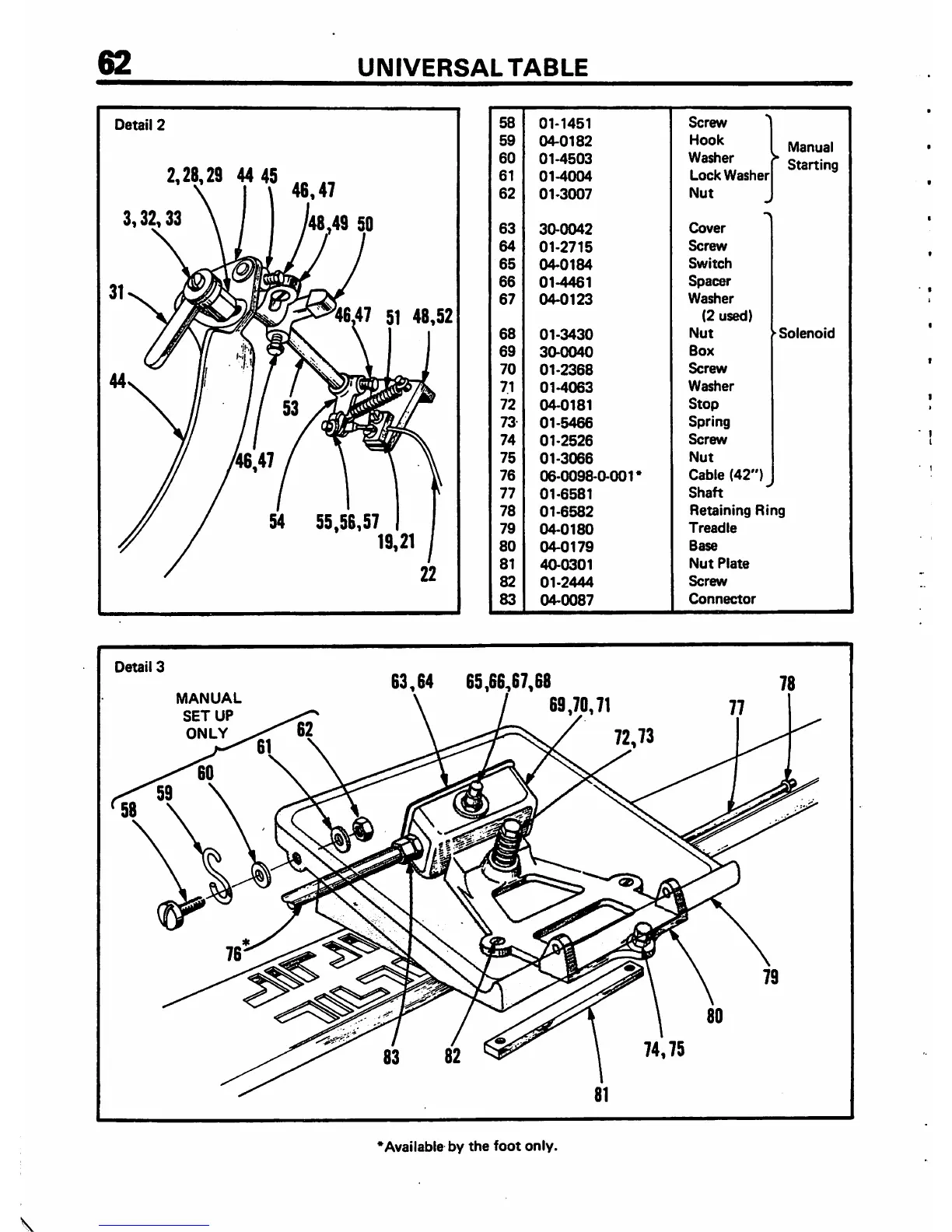

Detail 2
2,28,29 44 45
3,32,33
Detail 3
MANUAL
SETUP
ONLY
UNIVERSAL TABLE
46,47
'48,49 50
51 48,52
\
58
01-1451
Screw
59
04-0182
Hook
Manual
60
01-4503
Washer
Starting
61
01-4004
Lock Washer
62
01-3007
Nut
63
30-0042
Cover
64
01-2715
Screw
65
04-0184
Switch
66
01-4461
Spacer
67
04-0123
Washer
(2 used)
68
01-3430
Nut "Solenoid
69
30-0040
Box
70
01-2368
Screw
71
01-4063
Washer
72
04-0181
Stop
73
01-5466
Spring
74
01-2526
Screw
75
01-3066
Nut
76
06-0098-0-001'
Cable (42")
77
01-6581
Shaft
78
01-6582
Retaining Ring
79
04-0180
Treadle
80
04-0179
Base
81
40-0301
Nut Plate
82
01-2444
Screw
83
04-0087
Connector
63,64 65,66,67,68
69,70,71
83 82
'Available by the foot only.
