Multiple systems
When several EOS4 are used, precautions must be taken to prevent optical interference
between these: position the elements so that the beam of the Emitter of one system is
received only by its respective Receiver.

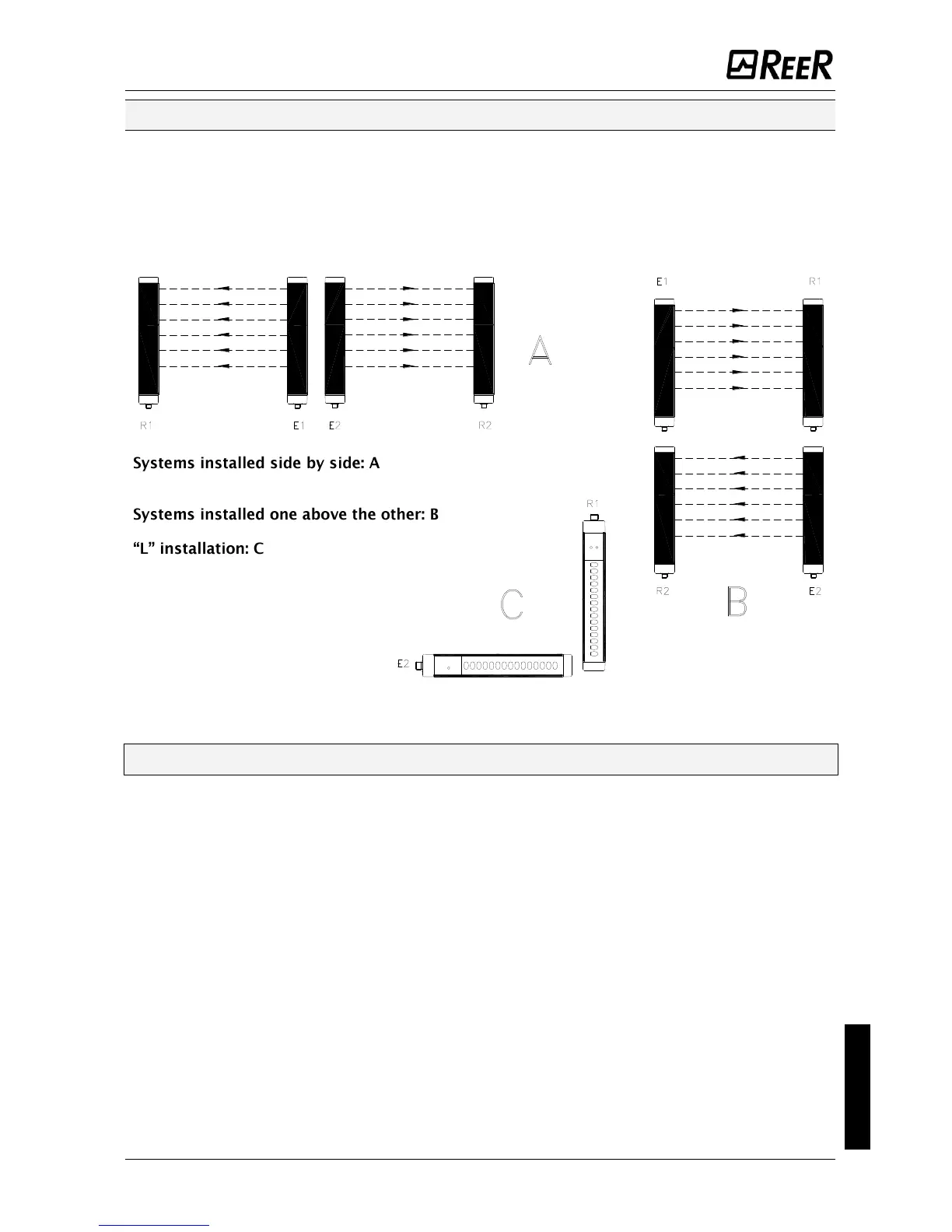

Figure 6 provides examples of correct positioning of two photo-electric systems. Incorrect
positioning may cause interference, with possible malfunction of the system.
Figure 6 – Multiple systems

This precaution is not necessary in the case of MASTER/SLAVE systems.
Adjacent positioning of the two emitters
Crossed positioning between emitters and
receivers

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
