Reer EOS4 Installation, Use And Maintenance

EOS4 SAFETY LIGHT CURTAIN
14 8540733 • 23/03/2016 • Rev.17
English
Multibeam Models
 These models are suitable for whole body
detection and must not be used to detect arms
or legs.
The minimum safety distance is determined
according to the following formula:
S = 1600 (t
1
+ t
2
) + 850
The recommend height H from the reference surface
(ground) is as follows (ISO 13855 Standard) :

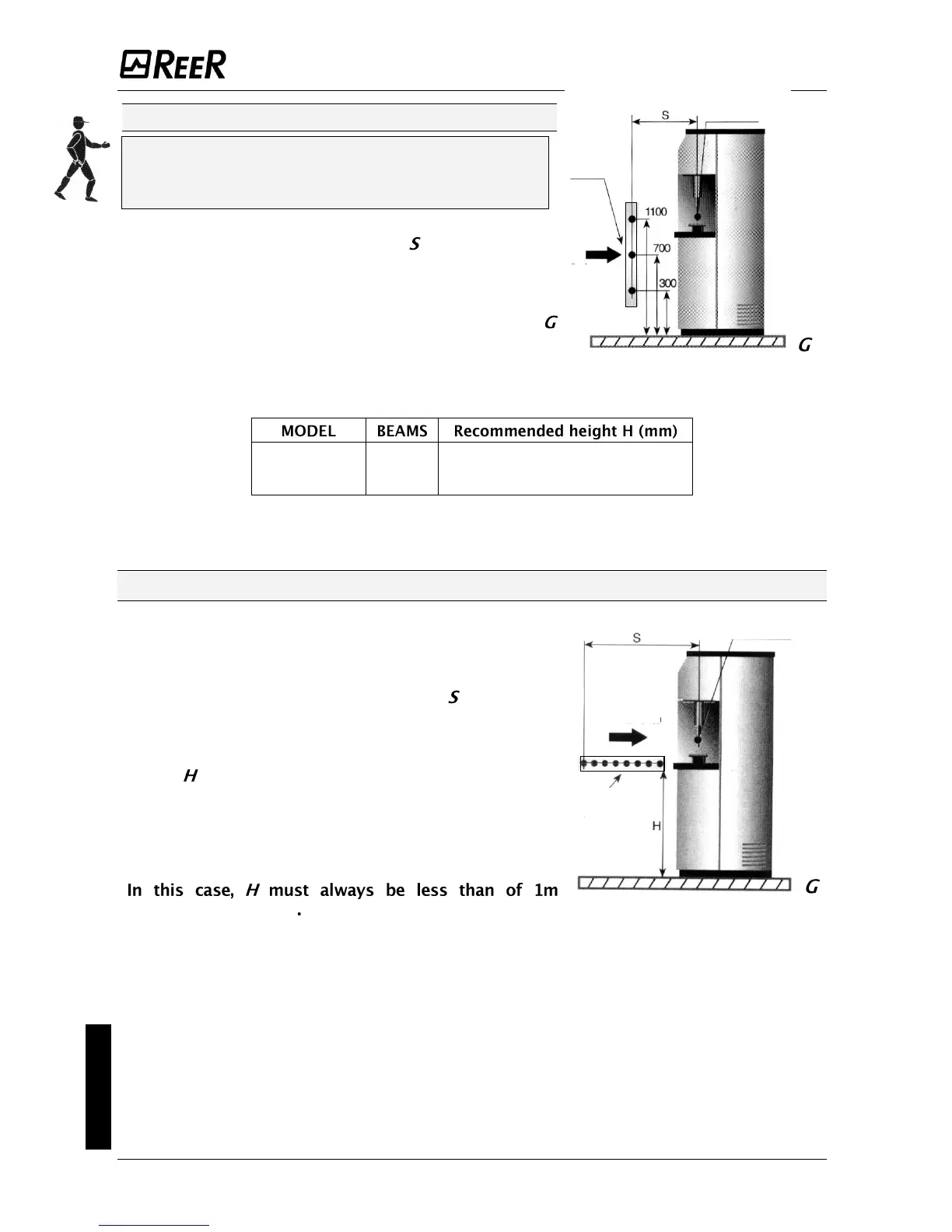

Figure 14 - Multibeam
EOS4 2B
EOS4 3B
EOS4 4B
2
3
4
400 – 900
300 – 700 – 1100
300 – 600 – 900 - 1200
Table 3 - Height H of Multibeam models
Horizontal positioning of the light curtain
When the direction of approach of the body is parallel to
the plane of the protected area, the light curtain must be
positioned so that the distance between the far end of the
dangerous area and the outermost beam is equal to or
greater than the minimum safety distance calculated as
follows:
S = 1600(t
1
+ t
2
) + 1200 – 0.4H
where is the height of the protected surface from
the machine reference plane;
H = 15(D-50)
(D=resolution)
(ISO 13855 Standard)
Figure 15 - Horizontal positioning
Light grid
point of
danger
direction
of
approach
reference plane
Light curtain
point of
danger
direction
of approach
reference plane

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
