Controller

10 — English Master/Slave Operation — 24.09.2015

5.1.2 Control Touch

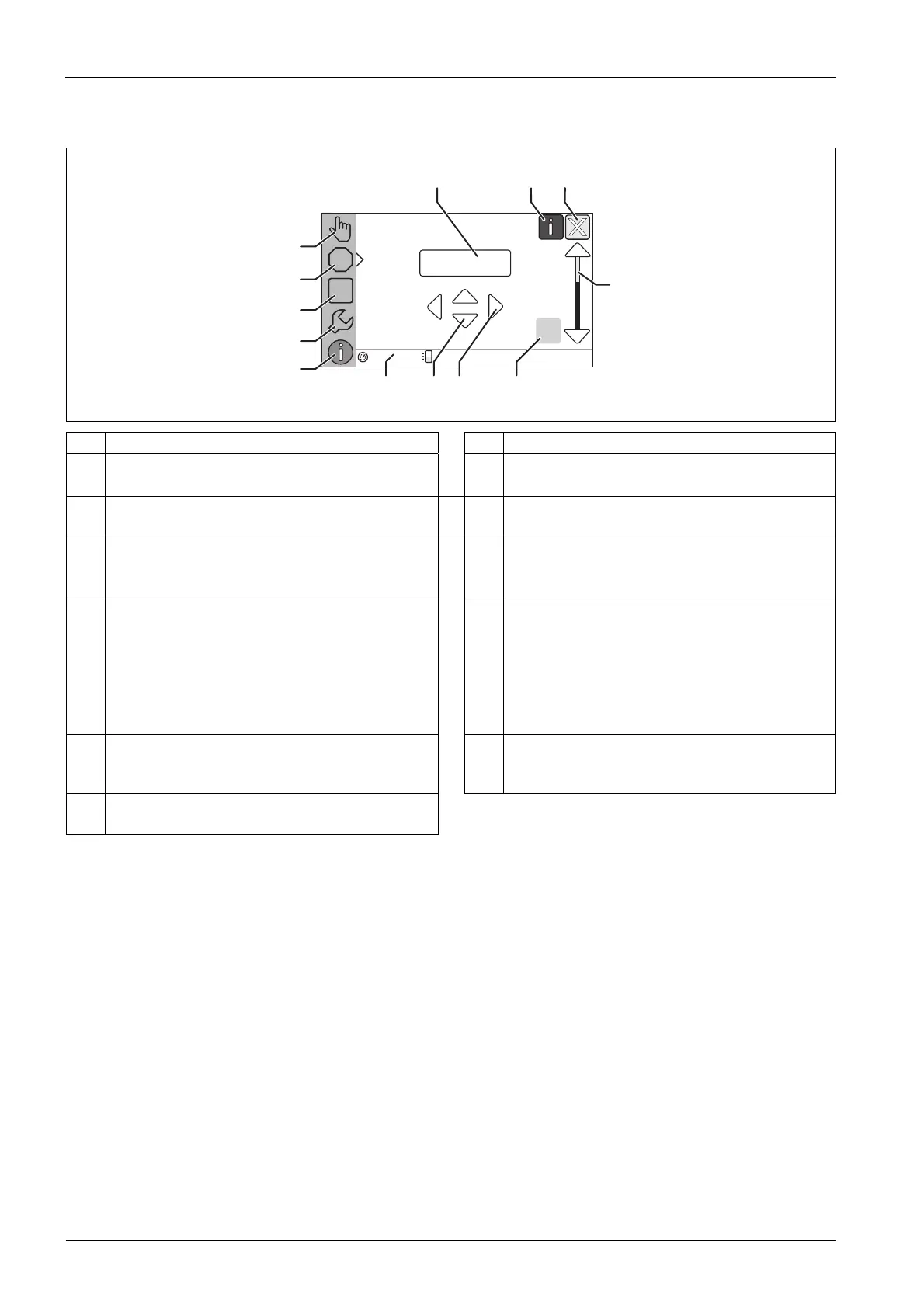

Operator panel of the Control Touch controller.

000039_001_R001

AUT O

ST OP

AUT O

ST OP

213

1 Message line 8 Display value

"▼"/ "▲" buttons

• Set digits.

9 "Manual mode" button

• For function tests.

""/"" buttons

• Select digits.

10 "Stop mode" button

• For commissioning.

4 "OK" button

• Confirm/acknowledge input.

• Browse in the menu.

11 "Automatic mode" button

• For continuous operation.

5 "Up" and "Down" scroll bar

• "Scroll" in the menu.

12 "Set-up menu" button

• For setting parameters.

• Fault memory.

• Parameter memory.

• Display settings.

• Primary tank information.

• Software version information.

6 "Scroll back" button

• Cancel.

• Move backward up to the main menu.

13 "Info menu" button

• Displays general information.

7 "Display help texts" button

• Opens help texts.
