Controller

Master/Slave Operation — 24.09.2015 English — 9

5 Controller

5.1 Operator panel

5.1.1 Control Basic

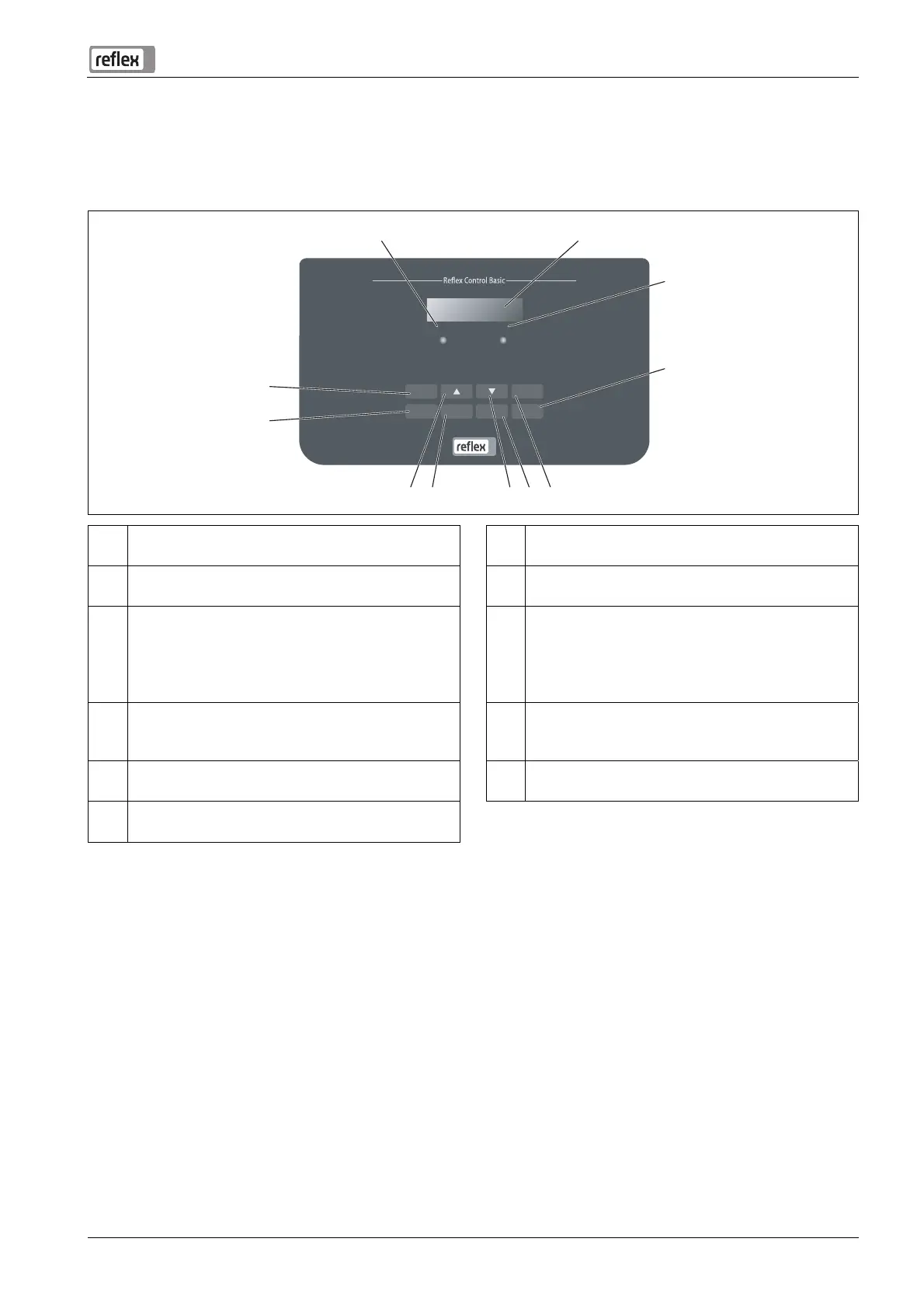

Operator panel of the Control Basic controller.

000088_001_R001

Error Auto

Quit

Menu Auto

Manual

Stop

98 765

1 Error LED

• The Error LED illuminates in the event of a fault

7 "Back" to the previous menu

2 Display 8 Auto

• For continuous operation

3 Auto LED

• The Auto LED illuminates green in Automatic mode

• The Auto LED flashes green in Manual mode

• The Auto LED is not illuminated when the system is

stopped

9 "Forward" to the next menu

4 Stop

• For commissioning and entry of new values in the

controller

10 Menu

• Call up the Customer menu

5 OK

• Confirm actions

11 Quit

• Acknowledge messages

6 Manual

• For tests and maintenance tasks

Selecting and changing parameters

1. Use "OK" (5) to select the parameter.

2. Use the "▼" (7) or "▲" (9) arrow keys to change the parameter.

3. Use "OK" (5) to confirm the parameter.

4. Use the "▼" (7) or "▲" (9) arrow keys to switch to a different menu option.

5. Use "Quit" (11) to switch to a different menu level.
