REFU Elektronik GmbH REFUsol 08K ... 23K 25

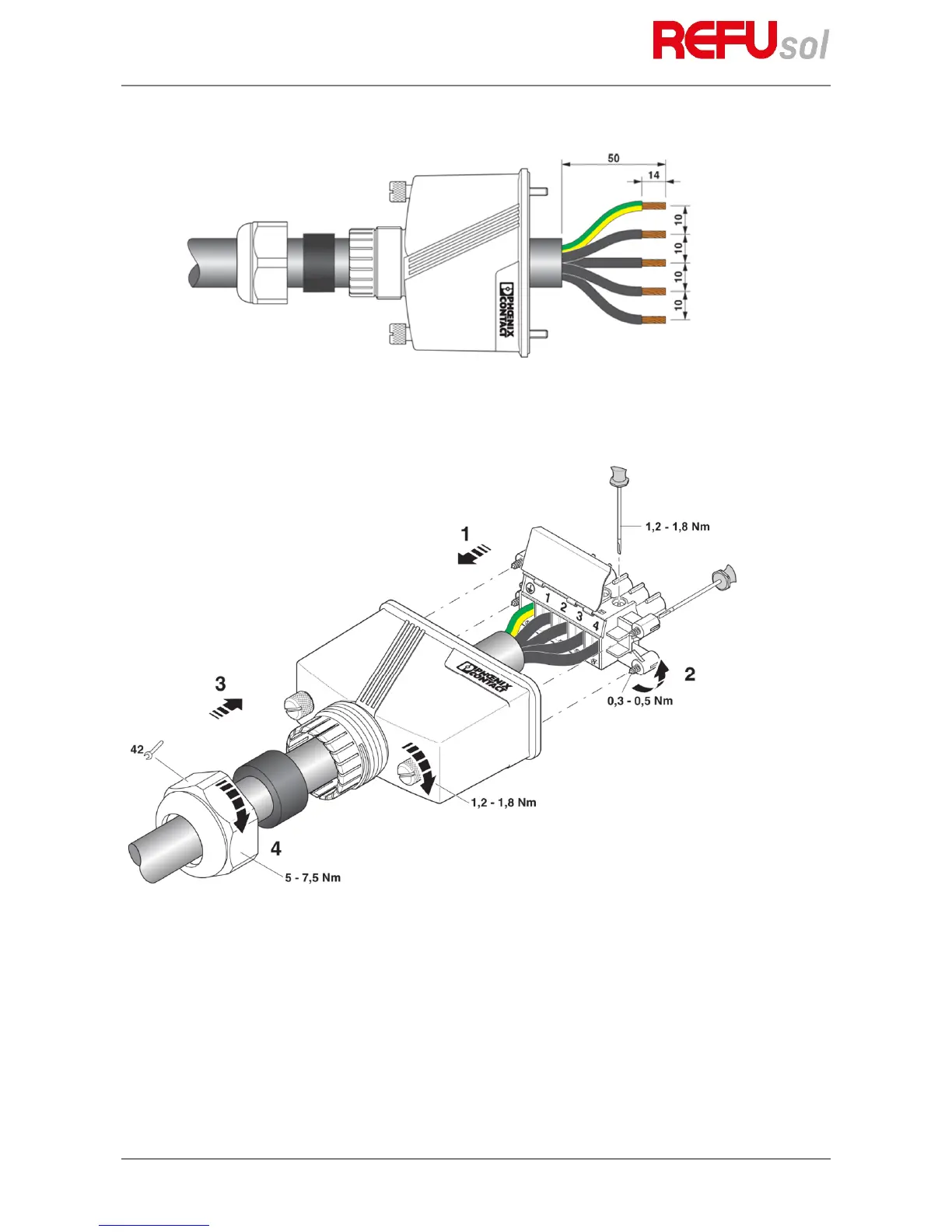

Fig. 11: Preparation of plug cable
3. Screw in plug.
4. Note torque specification according to illustration.
Fig. 12: Screw in plug
5. Determine diameter.
6. Seal connection.
