Mounting Location
REFUsol 100K
982059/02
2020-11
EnglishDeutsch
The inverter can be installed vertical or horizontal.
For horizontal outdoor installation, mount the inverter
at an angle of 10° (or greater).

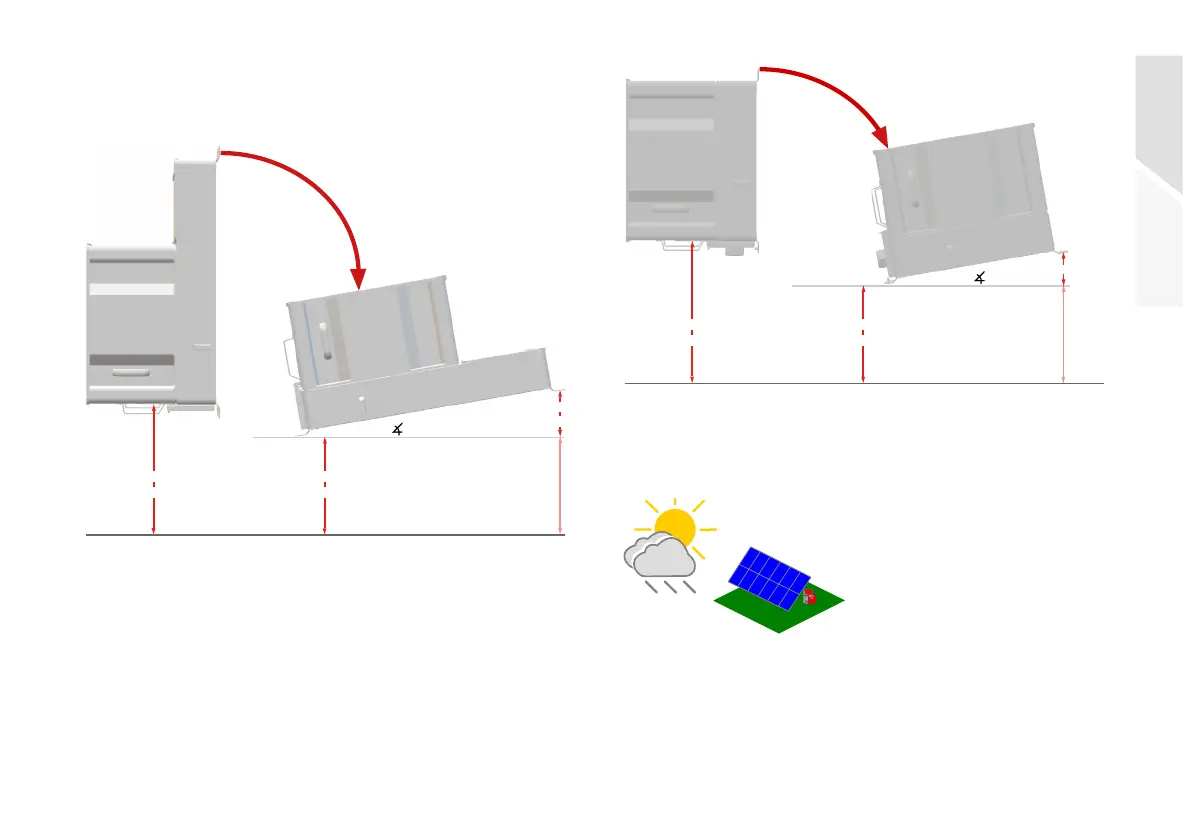

Fig. 8: Vertical and horizontal installation (decentral)
Fig. 9: Vertical and horizontal installation (central)
3.5 Mounting Location
Fig. 10: Installation recommendation for protection against
direct sunlight and rain
170 mm
(7 in)
400 mm
(16 in)
min. 10°
300 mm
(12 in)
300 mm
115 mm (5 in)
(12 in)
400 mm
(16 in)
min. 10°
