4.4 Mounting the ConnectionBox
There are three possibilities for mounting the Con-
nectionBox. Pole mounting with two suitable pole
clamps, wall mounting, or horizontal mounting with an
angle of 10° (or greater).
The fixing material is not included in the scope of deliv-
ery.
4.4.1 Mounting the ConnectionBox Vertically
✅ Requirements according to IEC 60364-7-712 for
special systems or locations for photovoltaic power
supply systems were considered in the planning.

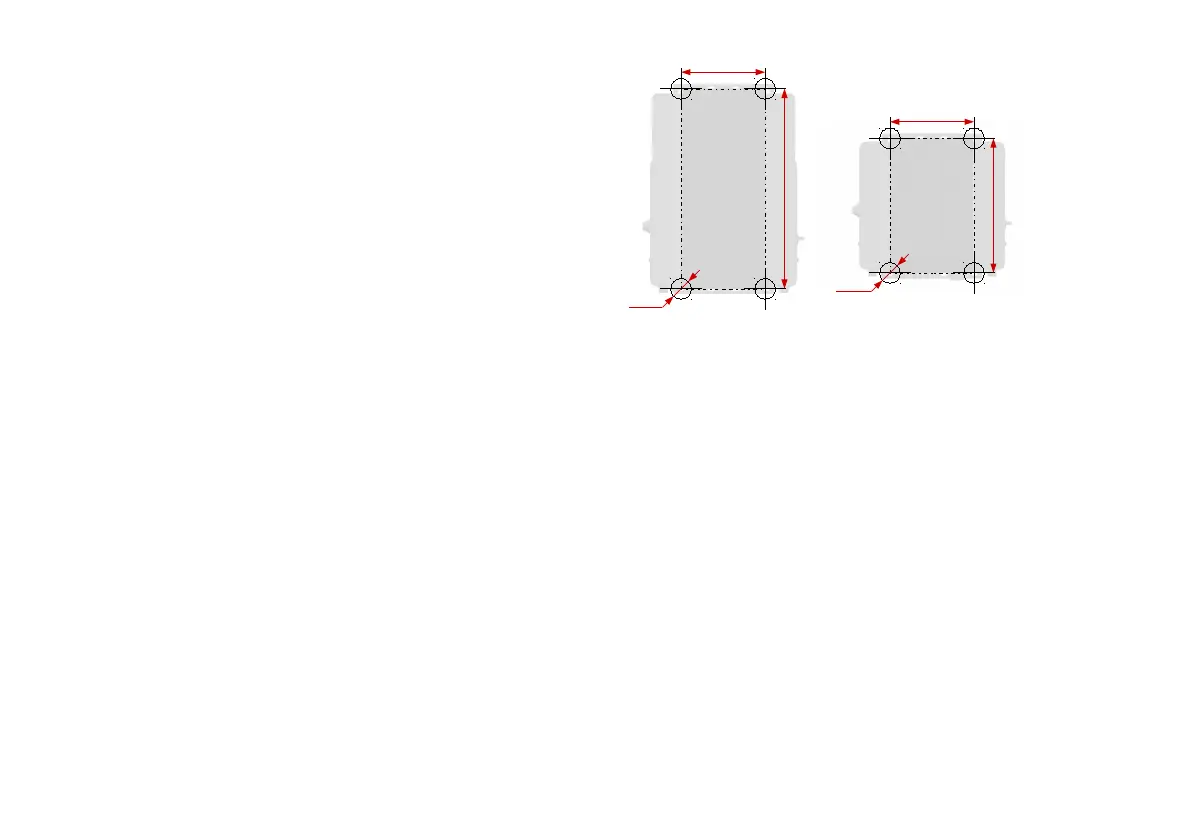

1. Mark the drill holes according to the following dra-
wing.
Fig. 14: Mounting dimensions
2. Drill the holes and insert anchors.
3. Screw screws with a minimum diameter of 8 mm
into the upper plugs at a distance of 8 mm from the
mounting surface.
4. Hook the ConnectionBox into the two upper screws
and press it against the wall.
5. Screw the lower screws into the dowels.
6. Tighten all screws.
Central ConnectionBox
Decentral ConnectionBox
(16 in)
407 mm
(16 in)
4x M10
4x M10
965 mm
(38 in)
650 mm
(25.6 in)
