Rega Elicit-R User Manual

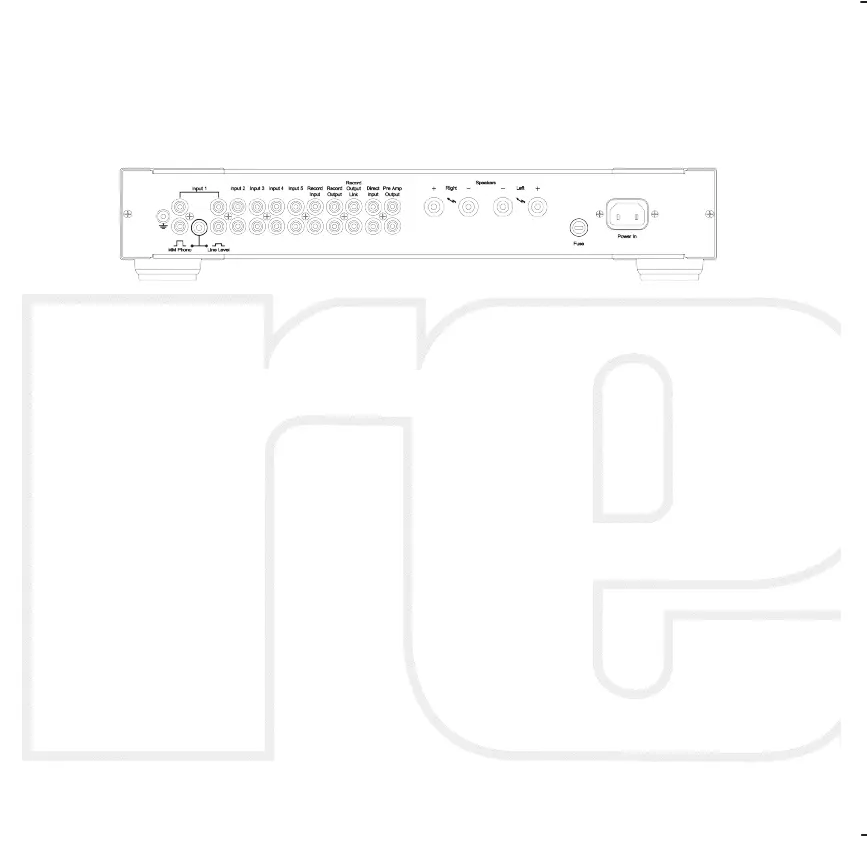

REAR PANEL CONNECTIVITY
Line Inputs 2 to 5- The line inputs enable the connection of sources, such as a CD,
DAC, tuner, DVD or Blu-ray player for use with an Audio Visual system. Inputs 2-5
can be used for a DAC, tuner (suitable for use with most types of AM/FM and DAB
tuners) and can also be used as a CD input, suitable for use with any CD, Blu-ray and
DVD source. All inputs (other than the Direct and Phono input) are at standard line
level and can be used for any line level input.
Pre-Amp Output- The pre-amplifier can drive at least 5 power amplifiers, sub bass
units etc. The pre-amplifier output uses RCA type (phono) connectors. The output
level is 760mV with a line input level.
5

Rega Elicit-R Specifications

General

Amplifier class	-
Frequency range	10 - 85000 Hz
Input sensitivity	196 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	31.6 dB
Total Harmonic Distortion (THD)	0.003 %
Dynamic power per channel (4 Ohm)	162 W
Dynamic power per channel (6 Ohm)	127 W
Dynamic power per channel (8 Ohm)	105 W
Audio (L/R) in	7
Audio (L/R) out	3
Phono audio in (L,R)	Yes
Speakers connectivity type	Binding post
AC input voltage	115 - 230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	375 W
Purpose	Home
Product color	Black
Volume control	Rotary
Connectivity technology	Wired

Weight and Dimensions

Depth	340 mm
Width	432 mm
Height	82 mm
Weight	13000 g
