Trim Gauge___________________________________
The gauge measures the stern drive tilt and indicates the relative
position of the bow, up or down when the boat is on plane. The
power trim normally begins in the down position when used to
accelerate the boat onto a plane position. The gauge can be helpful in
achieving the most economical running plane. A sensor in the stern
drive communicates with the gauge on the dash.

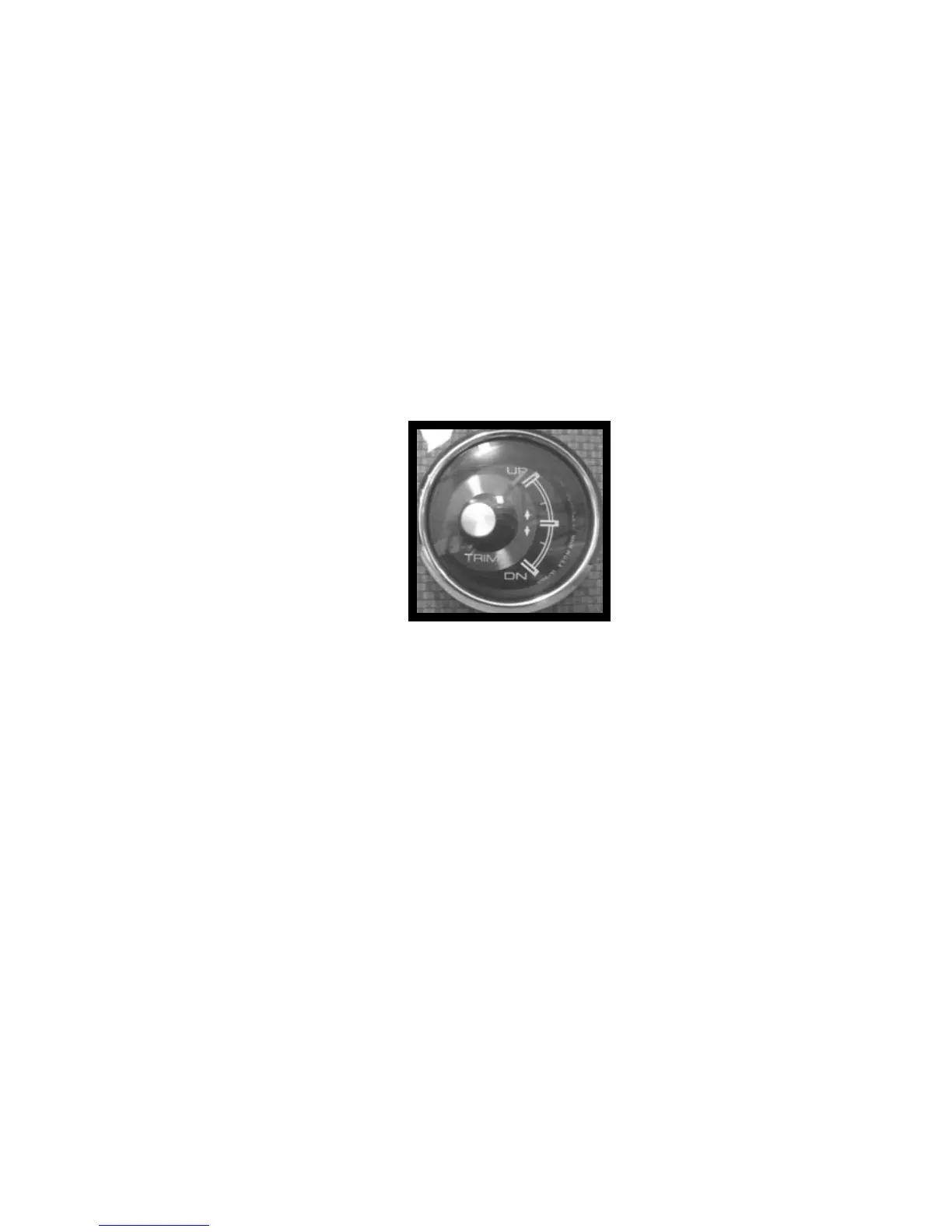

Typical Trim Gauge
3-27
Engine & Controls
